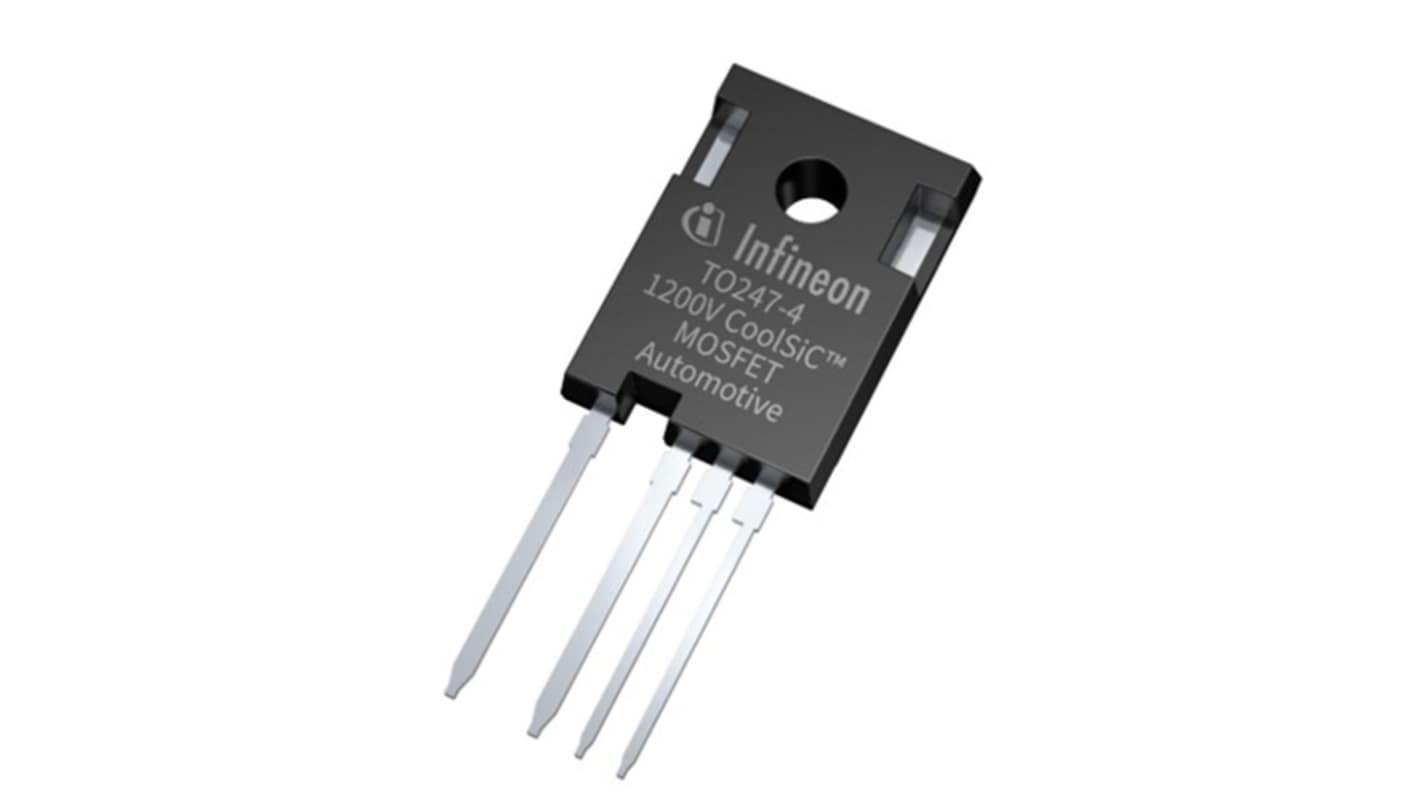

Infineon AIM SiC N-Channel MOSFET, 17 A, 1200 V, 4-Pin PG-TO247-4 AIMZH120R160M1TXKSA1
- RS Stock No.:
- 349-381
- Mfr. Part No.:
- AIMZH120R160M1TXKSA1
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 349-381
- Mfr. Part No.:
- AIMZH120R160M1TXKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 17 A | |
| Maximum Drain Source Voltage | 1200 V | |
| Package Type | PG-TO247-4 | |
| Series | AIM | |
| Mounting Type | Through Hole | |
| Pin Count | 4 | |
| Channel Mode | Enhancement | |
| Number of Elements per Chip | 1 | |
| Transistor Material | SiC | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 17 A | ||
Maximum Drain Source Voltage 1200 V | ||
Package Type PG-TO247-4 | ||
Series AIM | ||
Mounting Type Through Hole | ||
Pin Count 4 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
Transistor Material SiC | ||
- COO (Country of Origin):
- CN
The Infineon SiC MOSFET features best in class switching performance, robustness against parasitic turn ons, as well as improved RDSon and Rth(j-c). High power density, superior efficiency, bi-directional charging capabilities and significant reductions in system costs making it an ideal choice for on board charger and DC to DC applications.
Very low switching losses
Best in class switching energy
Lowest device capacitances
Sense pin for optimized switching performance
Suitable for HV creepage requirements
Thinner leads for reduced risk of solder bridges
Best in class switching energy
Lowest device capacitances
Sense pin for optimized switching performance
Suitable for HV creepage requirements
Thinner leads for reduced risk of solder bridges
