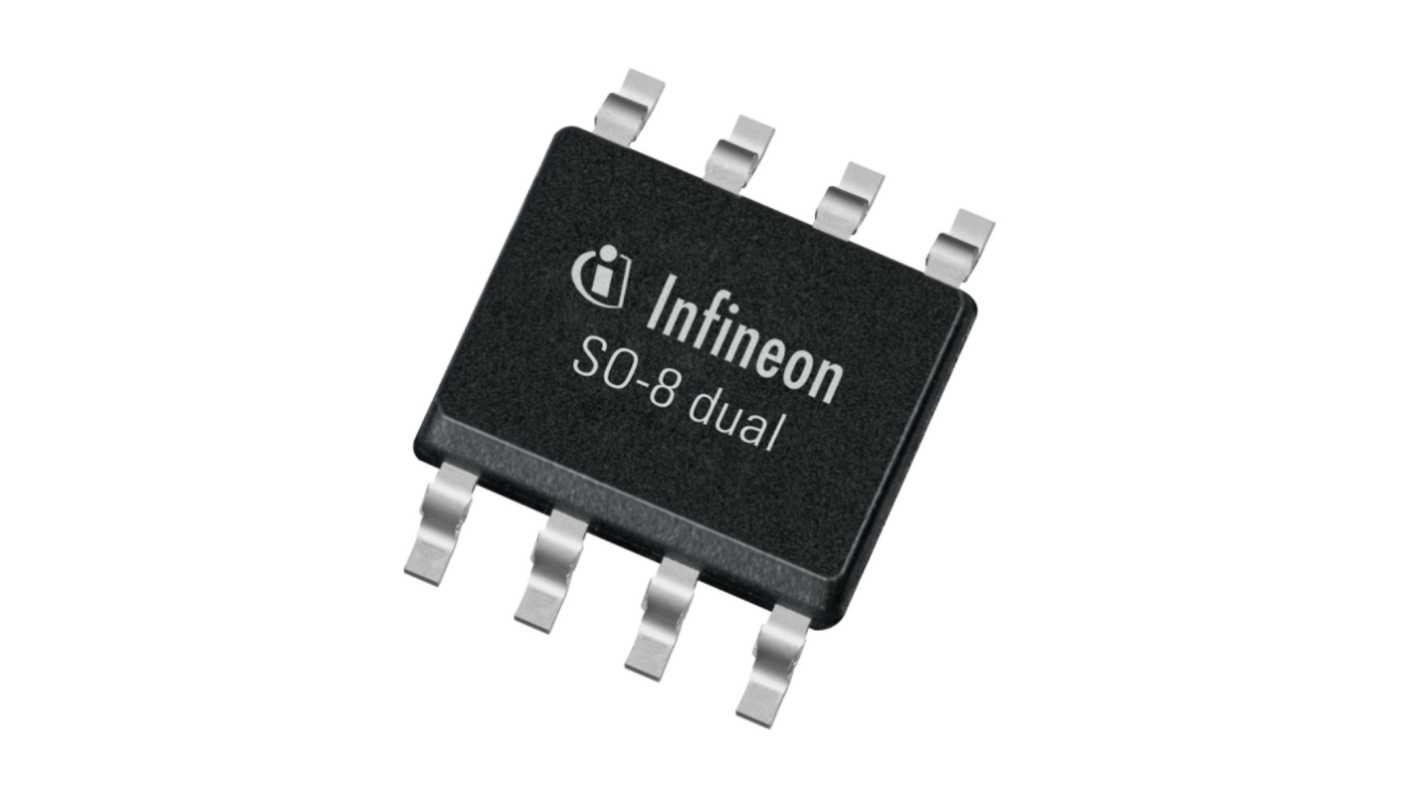

Infineon ISA Dual N-Channel MOSFET, 9.6 A, 40 V Enhancement, 8-Pin PG-DSO-8 ISA170170N04LMDSXTMA1
- RS Stock No.:
- 348-912
- Mfr. Part No.:
- ISA170170N04LMDSXTMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 20 units)*
£8.50
(exc. VAT)
£10.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,980 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 180 | £0.425 | £8.50 |
| 200 - 480 | £0.404 | £8.08 |
| 500 - 980 | £0.374 | £7.48 |
| 1000 - 1980 | £0.345 | £6.90 |
| 2000 + | £0.332 | £6.64 |
*price indicative
- RS Stock No.:
- 348-912
- Mfr. Part No.:
- ISA170170N04LMDSXTMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Dual N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 9.6A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Series | ISA | |
| Package Type | PG-DSO-8 | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 17mΩ | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 2.5W | |
| Typical Gate Charge Qg @ Vgs | 6nC | |
| Forward Voltage Vf | 1V | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | JEDEC Standard | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Dual N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 9.6A | ||
Maximum Drain Source Voltage Vds 40V | ||
Series ISA | ||
Package Type PG-DSO-8 | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 17mΩ | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 2.5W | ||
Typical Gate Charge Qg @ Vgs 6nC | ||
Forward Voltage Vf 1V | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals JEDEC Standard | ||
- COO (Country of Origin):
- CN
The Infineon OptiMOS 3 Power Transistor is a dual N-channel, logic level MOSFET designed for high performance power applications. It features very low on-resistance (RDS(on)), which helps reduce conduction losses and increase overall system efficiency. Additionally, the transistor offers superior thermal resistance, ensuring better heat management and reliability in demanding conditions. This combination of features makes it ideal for applications requiring efficient power switching and thermal performance.
100% avalanche tested
Pb free lead plating and RoHS compliant
Halogen free according to IEC61249‑2‑21
