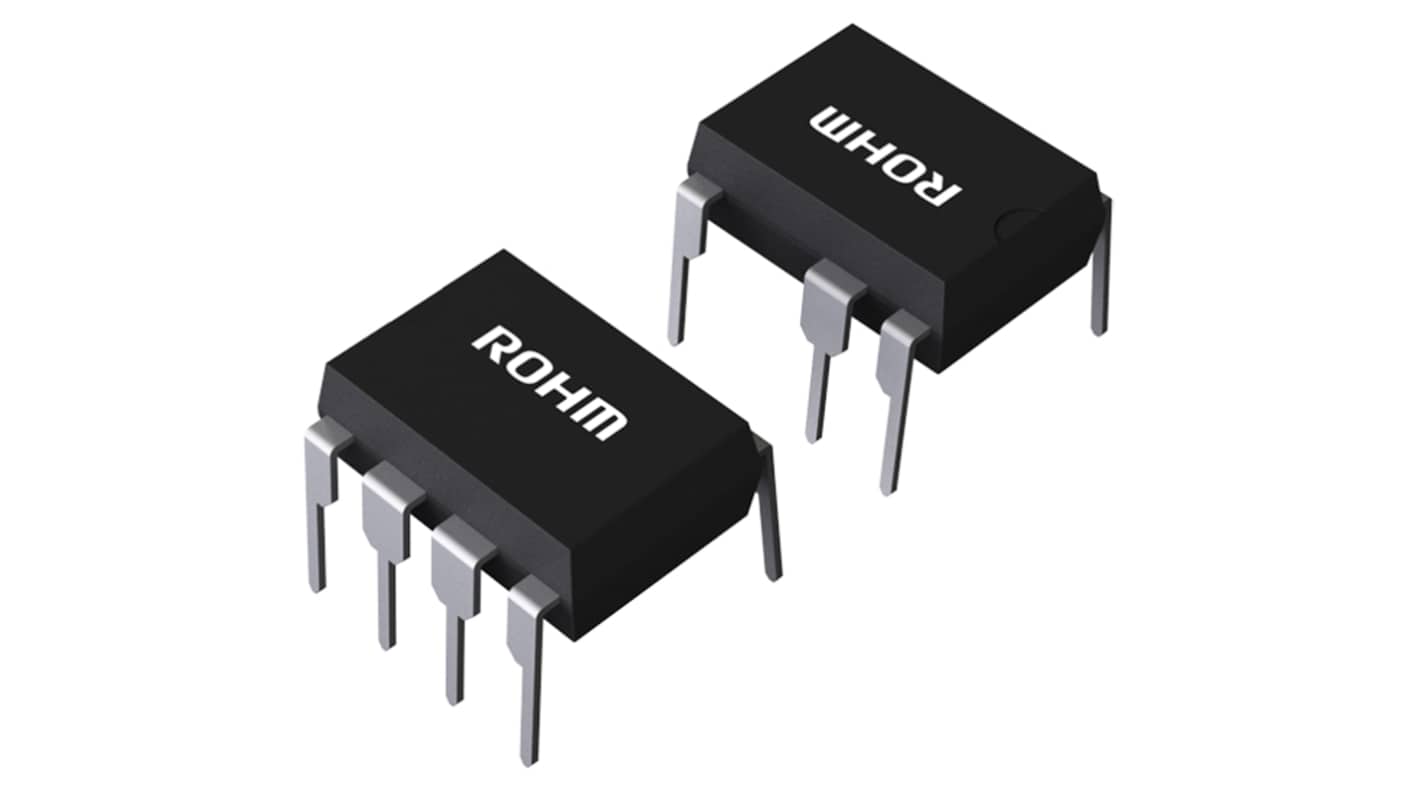

ROHM BM2 MOSFET, 7-Pin DIP7K BM2P137QK-Z
- RS Stock No.:
- 264-615
- Mfr. Part No.:
- BM2P137QK-Z
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 5 units)*
£7.58
(exc. VAT)
£9.095
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £1.516 | £7.58 |
50 - 95 | £1.44 | £7.20 |
100 - 495 | £1.334 | £6.67 |
500 - 995 | £1.228 | £6.14 |
1000 + | £1.182 | £5.91 |
*price indicative
- RS Stock No.:
- 264-615
- Mfr. Part No.:
- BM2P137QK-Z
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Package Type | DIP7K | |
Series | BM2 | |
Mounting Type | Surface Mount | |
Pin Count | 7 | |
Select all | ||
---|---|---|
Brand ROHM | ||
Package Type DIP7K | ||
Series BM2 | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
The ROHM PWM type DC or DC converter for AC or DC provides an optimum system for all products that include an electrical outlet. It enables simpler design of a high effective converter specializing in non-isolated devices. This series has a built-in starter circuit that tolerates 800V, and it contributes to low power consumption. With a current detection resistor for switching as internal device, it can be designed as small power supply. Since current mode control is utilized, current is restricted in each cycle and excellent performance is demonstrated in bandwidth and transient response. The oscillation frequency is fixed to 100kHz A frequency hopping function is also on chip, and it contributes to low EMI. In addition, a built-in Super Junction MOSFET which tolerates 800V makes the design easy.
PWM current mode method
Frequency hopping function
Burst operation at light load
Built-in 800V starter circuit that tolerates
Built-in 800V super junction MOSFET
VCC pin under voltage protection
VCC pin over voltage protection
Over current limiter function per cycle
Soft start function
Frequency hopping function
Burst operation at light load
Built-in 800V starter circuit that tolerates
Built-in 800V super junction MOSFET
VCC pin under voltage protection
VCC pin over voltage protection
Over current limiter function per cycle
Soft start function
