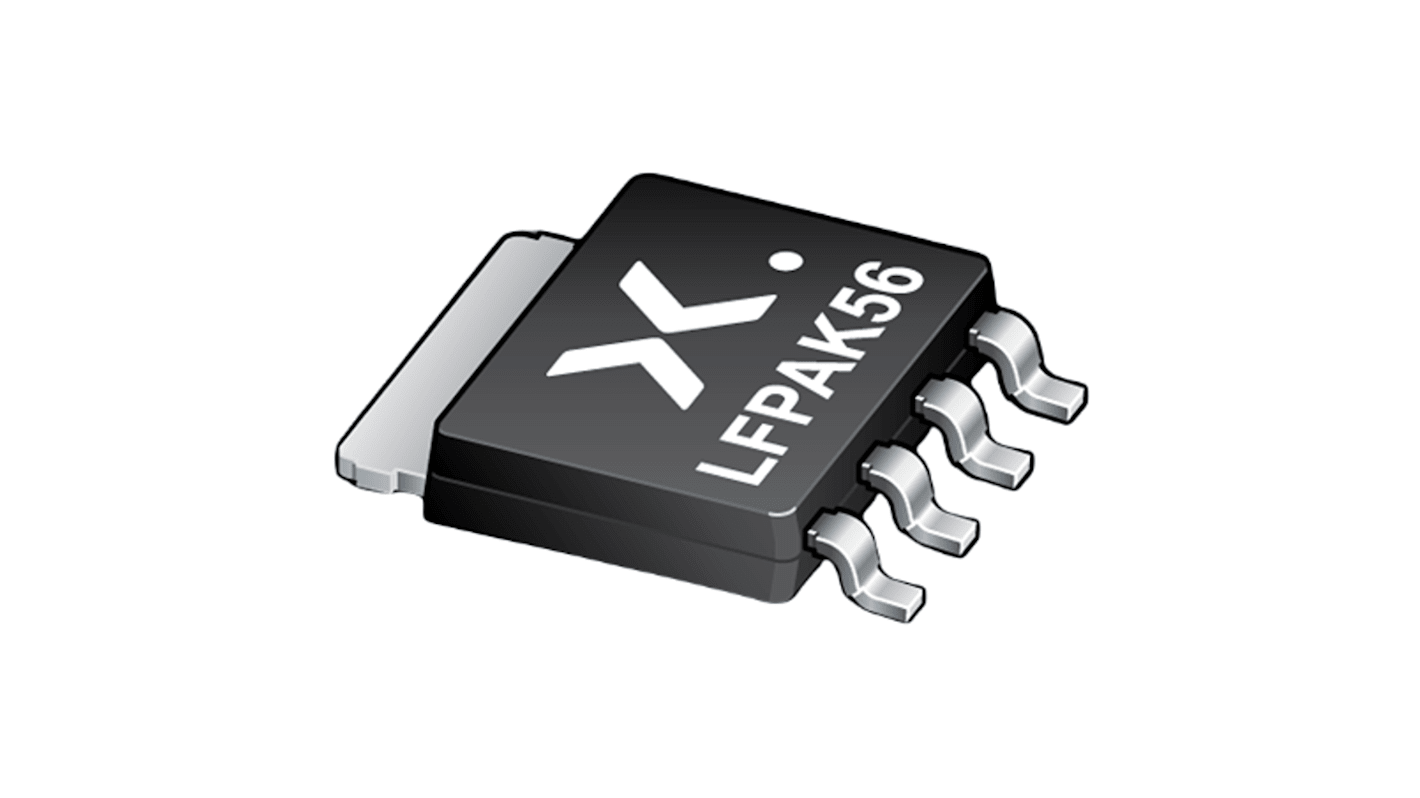

Nexperia PSM Type N-Channel MOSFET, 240 A, 40 V Enhancement, 5-Pin LFPAK PSMN1R5-40YSDX
- RS Stock No.:
- 219-430
- Mfr. Part No.:
- PSMN1R5-40YSDX
- Brand:
- Nexperia
Subtotal (1 reel of 1500 units)*
£2,608.50
(exc. VAT)
£3,130.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £1.739 | £2,608.50 |
*price indicative
- RS Stock No.:
- 219-430
- Mfr. Part No.:
- PSMN1R5-40YSDX
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 240A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Series | PSM | |
| Package Type | LFPAK | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance Rds | 1.5mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 46nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 238W | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 240A | ||
Maximum Drain Source Voltage Vds 40V | ||
Series PSM | ||
Package Type LFPAK | ||
Mount Type Surface | ||
Pin Count 5 | ||
Maximum Drain Source Resistance Rds 1.5mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 46nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 238W | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The Nexperia N-Channel MOSFET utilizes Advanced TrenchMOS Super junction technology, optimized for high-performance power switching. It is Ideal for applications such as synchronous rectification, DC-to-DC converters, server power supplies, brushless DC motor control, battery protection, and inrush management.
Avalanche rated, 100% tested
Strong SOA rating
Exposed leads can be wave soldered
Low parasitic inductance and resistance
