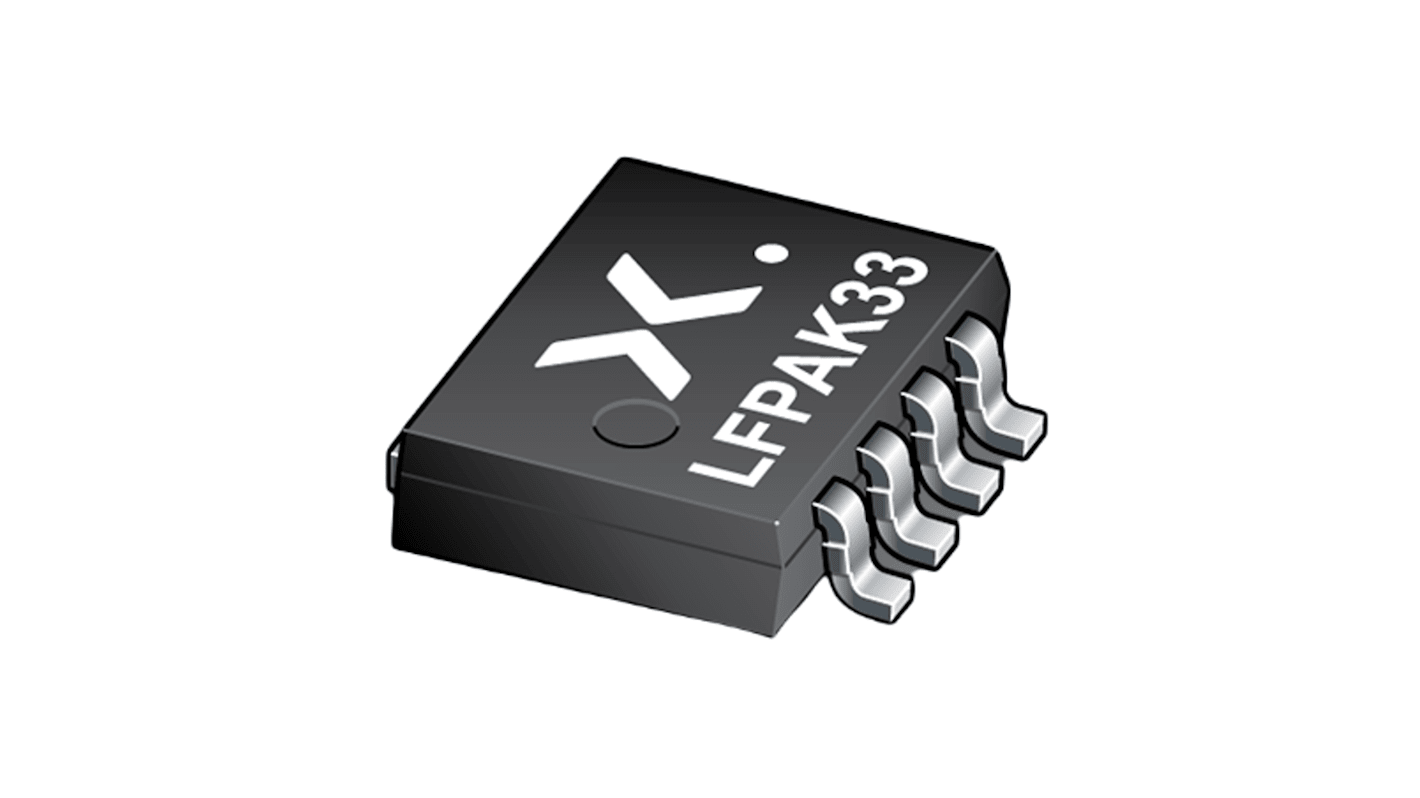

Nexperia N-Channel MOSFET, 150 A, 25 V, 5-Pin LFPAK PSMN1R5-25MLHX
- RS Stock No.:
- 219-265
- Mfr. Part No.:
- PSMN1R5-25MLHX
- Brand:
- Nexperia
Save 31% when you buy 1000 units
Subtotal (1 tape of 1 unit)*
£0.93
(exc. VAT)
£1.12
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,500 unit(s) ready to ship
- Plus 999,998,499 unit(s) shipping from 01 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
---|---|
1 - 9 | £0.93 |
10 - 99 | £0.83 |
100 - 499 | £0.77 |
500 - 999 | £0.71 |
1000 + | £0.64 |
*price indicative
- RS Stock No.:
- 219-265
- Mfr. Part No.:
- PSMN1R5-25MLHX
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Channel Type | N | |
Maximum Continuous Drain Current | 150 A | |
Maximum Drain Source Voltage | 25 V | |
Package Type | LFPAK | |
Mounting Type | Surface Mount | |
Pin Count | 5 | |
Channel Mode | Enhancement | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Channel Type N | ||
Maximum Continuous Drain Current 150 A | ||
Maximum Drain Source Voltage 25 V | ||
Package Type LFPAK | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- PH
The Nexperia N-Channel MOSFET featuring NextPowerS3 technology offers low RDS, low IDSS leakage, and high efficiency, with a current rating of 150 A. Its optimized low gate resistance supports fast-switching applications. Key applications include synchronous buck regulators, synchronous rectifiers in AC to DC and DC to DC conversions, BLDC motor control, eFuse and battery protection, as well as OR-ing and hot-swap functionalities.
Fast switching
Low spiking and ringing for low EMI designs
High reliability copper clip bonded
Qualified to 175 °C
Exposed leads for optimal visual solder inspection
Low spiking and ringing for low EMI designs
High reliability copper clip bonded
Qualified to 175 °C
Exposed leads for optimal visual solder inspection
