Nexperia PSM Type N-Channel MOSFET, 30 A, 100 V Enhancement, 5-Pin LFPAK PSMN040-100MSEX
- RS Stock No.:
- 219-404
- Mfr. Part No.:
- PSMN040-100MSEX
- Brand:
- Nexperia
Subtotal (1 reel of 1500 units)*
£900.00
(exc. VAT)
£1,080.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.60 | £900.00 |
*price indicative
- RS Stock No.:
- 219-404
- Mfr. Part No.:
- PSMN040-100MSEX
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 30A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | LFPAK | |
| Series | PSM | |
| Mount Type | Surface | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance Rds | 36.6mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 10 V | |
| Typical Gate Charge Qg @ Vgs | 30nC | |
| Maximum Power Dissipation Pd | 91W | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | IEEE802.3at, RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 30A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type LFPAK | ||
Series PSM | ||
Mount Type Surface | ||
Pin Count 5 | ||
Maximum Drain Source Resistance Rds 36.6mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 10 V | ||
Typical Gate Charge Qg @ Vgs 30nC | ||
Maximum Power Dissipation Pd 91W | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals IEEE802.3at, RoHS | ||
Automotive Standard No | ||
- COO (Country of Origin):
- PH
The Nexperia N-Channel MOSFET is designed to meet the increased demands of Power-over-Ethernet systems, which now support up to 90W to each powered device. It addresses critical requirements for power sourcing equipment, including soft-start functionality, thermal management, and high power density, ensuring reliable and efficient performance in Advanced PoE solutions.
Enhanced forward biased safe operating area for superior linear mode operation
Low Rdson for low conduction losses

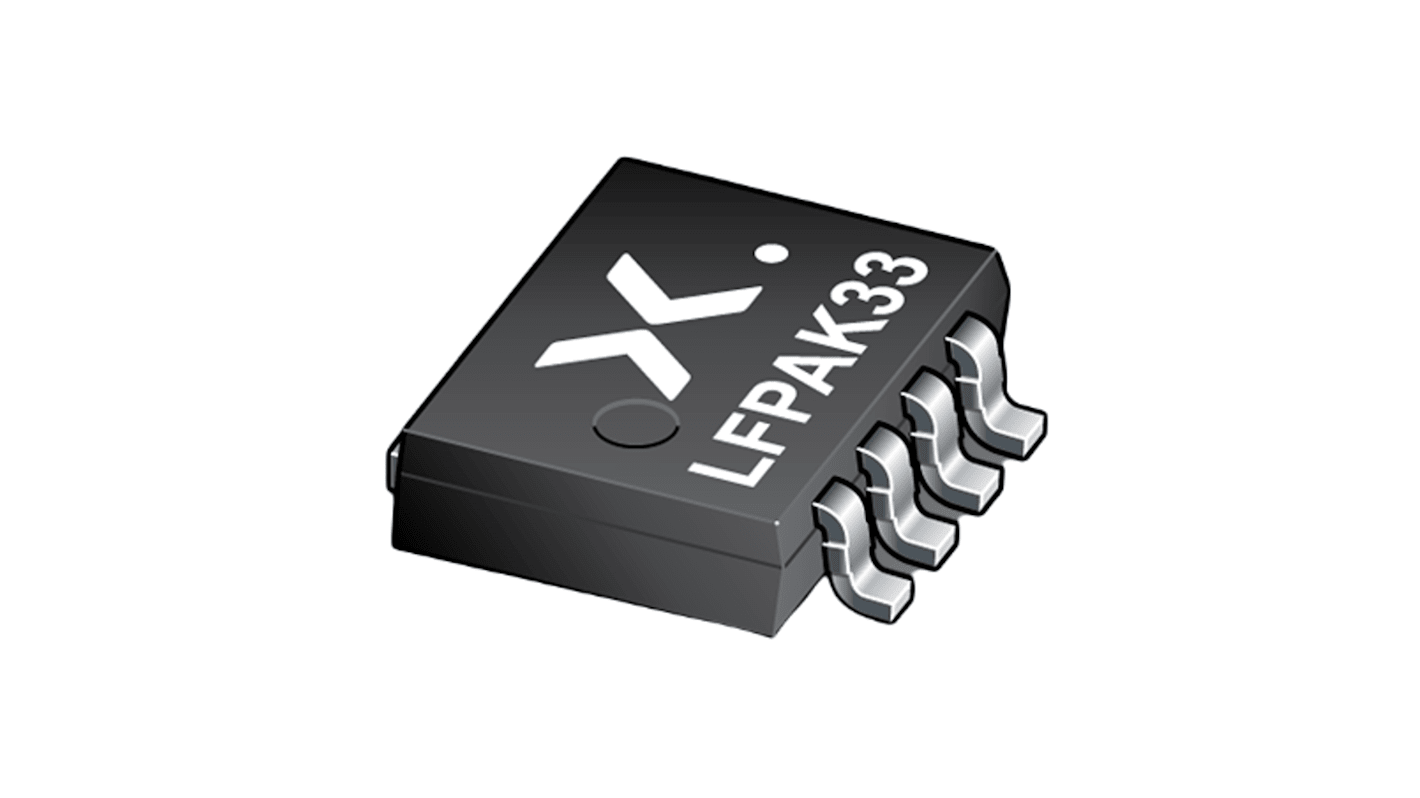

Ultra reliable LFPAK33 package for superior thermal and ruggedness performance
