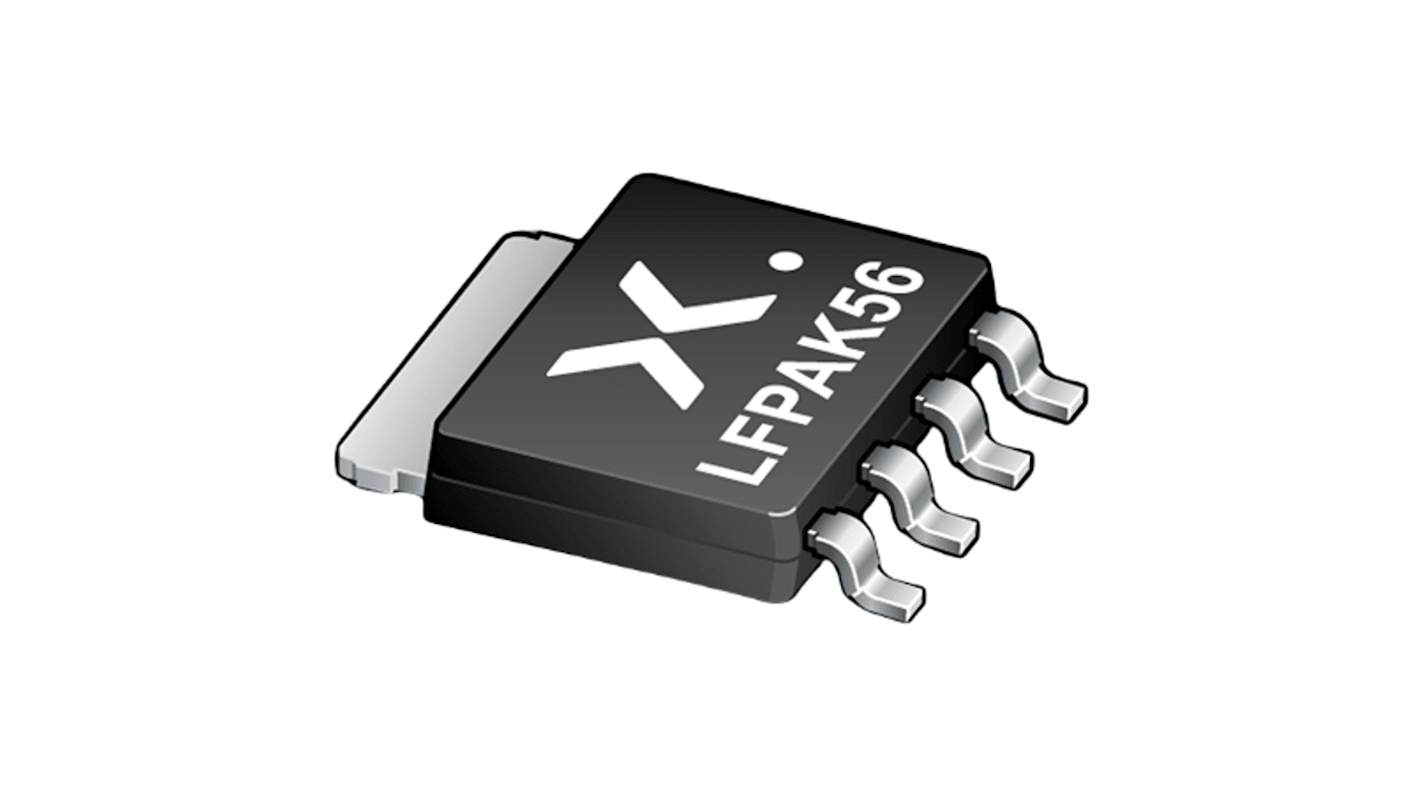

Nexperia N-Channel MOSFET, 300 A, 30 V, 5-Pin LFPAK PSMN1R0-30YLDX
- RS Stock No.:
- 219-315
- Mfr. Part No.:
- PSMN1R0-30YLDX
- Brand:
- Nexperia
Bulk discount available
Subtotal (1 tape of 1 unit)*
£1.50
(exc. VAT)
£1.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,495 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
---|---|
1 - 9 | £1.50 |
10 - 99 | £1.35 |
100 - 499 | £1.25 |
500 - 999 | £1.15 |
1000 + | £1.04 |
*price indicative
- RS Stock No.:
- 219-315
- Mfr. Part No.:
- PSMN1R0-30YLDX
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Nexperia | |
Channel Type | N | |
Maximum Continuous Drain Current | 300 A | |
Maximum Drain Source Voltage | 30 V | |
Package Type | LFPAK | |
Mounting Type | Surface Mount | |
Pin Count | 5 | |
Channel Mode | Enhancement | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Nexperia | ||
Channel Type N | ||
Maximum Continuous Drain Current 300 A | ||
Maximum Drain Source Voltage 30 V | ||
Package Type LFPAK | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Channel Mode Enhancement | ||
Number of Elements per Chip 1 | ||
The Nexperia N-Channel MOSFET features NextPowerS3 portfolio utilising NXP's unique SchottkyPlus technology delivers high efficiency, low spiking performance usually associated with MOSFETS with an integrated Schottky or Schottky-like diode but without problematic high leakage current. NextPowerS3 is particularly suited to high efficiency applications at high switching frequencies.
Low parasitic inductance and resistance
High reliability clip bonded and solder die attach Power SO8 package
Wave solder able
Superfast switching with soft recovery
High reliability clip bonded and solder die attach Power SO8 package
Wave solder able
Superfast switching with soft recovery
