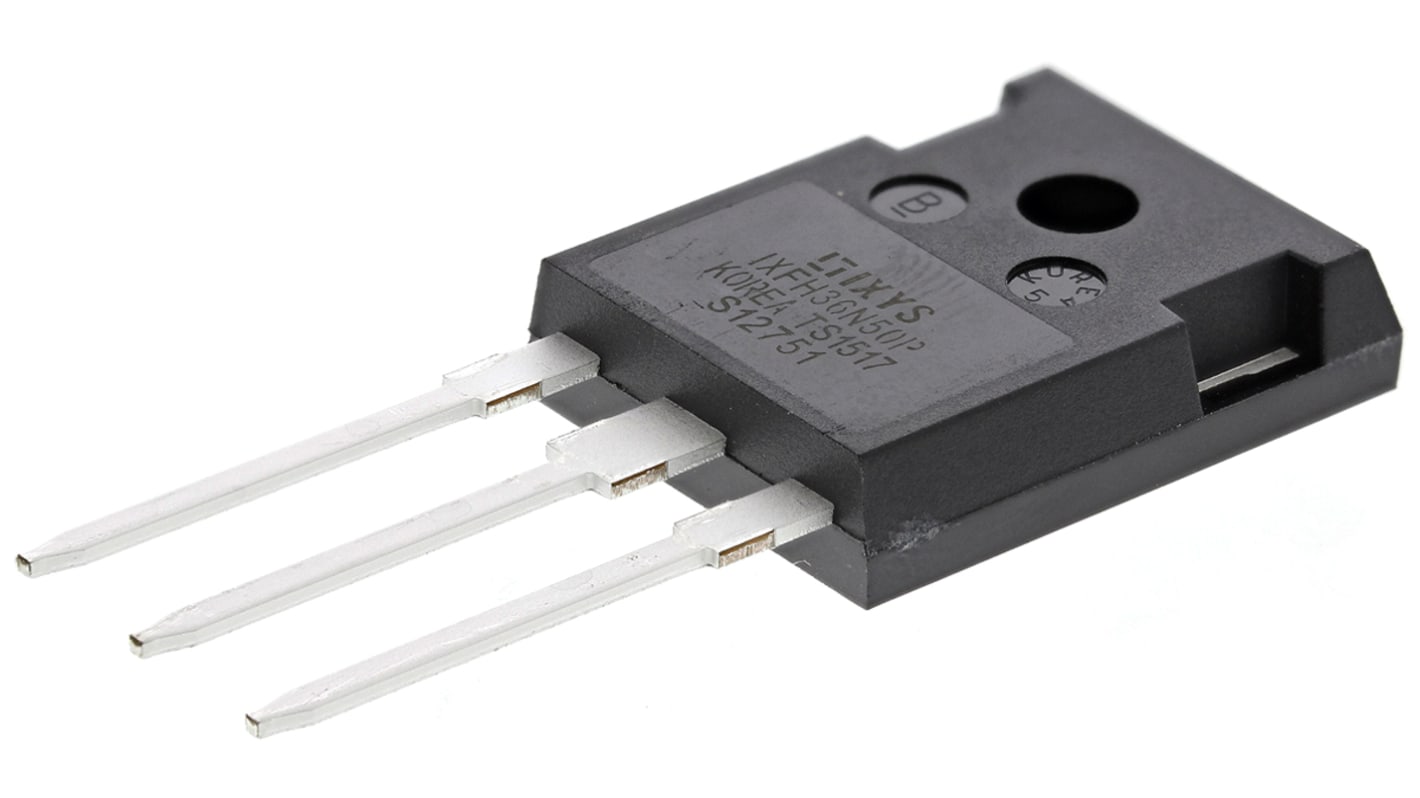

IXYS HiperFET, Polar Type N-Channel MOSFET, 36 A, 500 V Enhancement, 3-Pin TO-247 IXFH36N50P
- RS Stock No.:
- 194-546
- Distrelec Article No.:
- 302-53-322
- Mfr. Part No.:
- IXFH36N50P
- Brand:
- IXYS
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.93
(exc. VAT)
£11.92
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- Plus 25 left, shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.93 |
| 5 - 9 | £9.72 |
| 10 - 14 | £9.40 |
| 15 - 19 | £9.32 |
| 20 + | £9.22 |
*price indicative
- RS Stock No.:
- 194-546
- Distrelec Article No.:
- 302-53-322
- Mfr. Part No.:
- IXFH36N50P
- Brand:
- IXYS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | IXYS | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 36A | |
| Maximum Drain Source Voltage Vds | 500V | |
| Package Type | TO-247 | |
| Series | HiperFET, Polar | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 170mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 93nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 540W | |
| Forward Voltage Vf | 1.5V | |
| Maximum Operating Temperature | 150°C | |
| Length | 16.26mm | |
| Height | 21.46mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand IXYS | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 36A | ||
Maximum Drain Source Voltage Vds 500V | ||
Package Type TO-247 | ||
Series HiperFET, Polar | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 170mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 93nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 540W | ||
Forward Voltage Vf 1.5V | ||
Maximum Operating Temperature 150°C | ||
Length 16.26mm | ||
Height 21.46mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
N-channel Power MOSFET, IXYS HiperFET™ Polar™ Series
N-Channel Power MOSFETs with Fast Intrinsic Diode (HiPerFET™) from IXYS
MOSFET Transistors, IXYS
A wide range of advanced discrete Power MOSFET devices from IXYS
