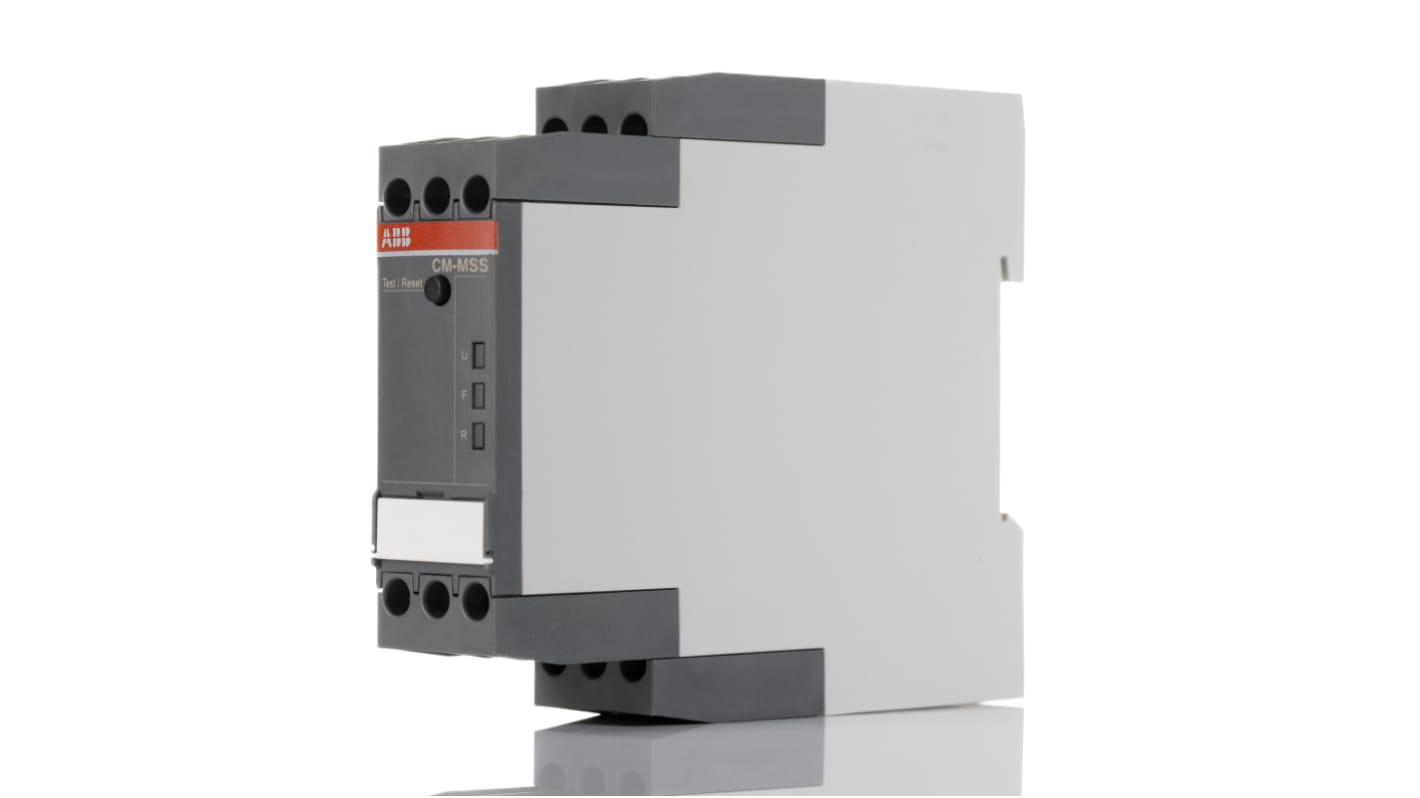

ABB Temperature Monitoring Relay, DPDT, DIN Rail
- RS Stock No.:
- 876-5058
- Mfr. Part No.:
- 1SVR730712R1300 CM-MSS.51S
- Brand:
- ABB
5 In stock - FREE next working day delivery available
Added
Price Each
£170.23
(exc. VAT)
£204.28
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £170.23 |
| 5 - 9 | £161.71 |
| 10 - 24 | £153.20 |
| 25 - 49 | £144.69 |
| 50 + | £136.19 |
- RS Stock No.:
- 876-5058
- Mfr. Part No.:
- 1SVR730712R1300 CM-MSS.51S
- Brand:
- ABB
Legislation and Compliance
Product Details
ABB Monitoring Relay, Thermistor Motor Protection Type, DIN Rail Mounting - CM-MSS Series - 1SVR730712R1300 CM-MSS.51S
Protect your equipment when the heat is on with this monitoring relay from ABB. Its inbuilt PTC sensor detects dangerous rises in temperature and sends a signal to de-energise the circuit, preventing your motor from overheating. The product also features short-circuit and dynamic interrupted wire detection to provide well-rounded protection against hazards. As the terminals have an IP20 rating, they're touch-proof and protected from objects larger than 12mm for safe handling. Simply clip the relay onto a DIN rail to install it in a snap without the need for any tools.
Features & Benefits
• Screw terminals for secure, simple wiring
• Wide operating temperature range between -25°C and +60°C for use in harsh environments
• Automatic, remote and manual reset options for versatility
• Compact dimensions of 103.7 (L) x 22.5 (W) x 85.6mm (H) to maximise space on your rail
• Wide operating temperature range between -25°C and +60°C for use in harsh environments
• Automatic, remote and manual reset options for versatility
• Compact dimensions of 103.7 (L) x 22.5 (W) x 85.6mm (H) to maximise space on your rail
Applications
• Industrial automation
• Production machinery
• Engineering workshops
• Production machinery
• Engineering workshops
How many motors can this relay monitor at the same time?
As it has two measuring circuits, this versatile relay can monitor up to two motors at once.
Specifications
Attribute | Value |
|---|---|
| Monitoring Application | Temperature |
| Contact Configuration | DPDT |
| Mounting Type | DIN Rail |
| Time Delay | <100ms |
| Frequency Sensing Range | 50 → 60Hz |
| Temperature Sensitivity | Overtemperature, Winding Temperature |
| Hazardous Area Certification | ATEX |
| Series | CM-MSS |
| Dimensions | 103.7 x 22.5 x 85.6mm |
| Maximum Operating Temperature | +60°C |
| Width | 22.5mm |
| Minimum Operating Temperature | -25°C |
| Number of Poles | 1 |
| Standards Met | UL |
| Special Features | Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, Manual & Automatic Reset, Non-Volatile Fault Storage, One Measuring Circuit, Over Heating Protection, Over Load Protection, Remote Reset, Short-Circuit Monitoring of the Sensor Circuit |
| Terminal Type | Screw |
| Operating Temperature Range | -25 → +60°C |
| Minimum Frequency Sensed | 50Hz |
| Length | 103.7mm |
| Height | 85.6mm |
| Current Range | Maximum of 3.7mA |
