Select all	Attribute	Value
	Brand	ABB
	Monitoring Application	Temperature
	Contact Configuration	SPDT
	Mounting Type	DIN Rail
	Time Delay	<100ms
	Temperature Sensitivity	Overtemperature, Winding Temperature
	Series	CM-MSS
	Width	22.5mm
	Maximum Operating Temperature	+60°C
	Dimensions	103.7 x 22.5 x 85.6mm
	Current Range	Maximum of 3.7mA
	Operating Temperature Range	+60°C
	Height	85.6mm
	Length	103.7mm
	Terminal Type	Cage Clamp
	Number of Poles	1
	Minimum Operating Temperature	-25°C
	Special Features	Automatic Reset, Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, One Measuring Circuit, Over Heating Protection, Over Load Protection

	Select all
	Brand ABB
	Monitoring Application Temperature
	Contact Configuration SPDT
	Mounting Type DIN Rail
	Time Delay <100ms
	Temperature Sensitivity Overtemperature, Winding Temperature
	Series CM-MSS
	Width 22.5mm
	Maximum Operating Temperature +60°C
	Dimensions 103.7 x 22.5 x 85.6mm
	Current Range Maximum of 3.7mA
	Operating Temperature Range +60°C
	Height 85.6mm
	Length 103.7mm
	Terminal Type Cage Clamp
	Number of Poles 1
	Minimum Operating Temperature -25°C
	Special Features Automatic Reset, Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, One Measuring Circuit, Over Heating Protection, Over Load Protection

COO (Country of Origin):: DE

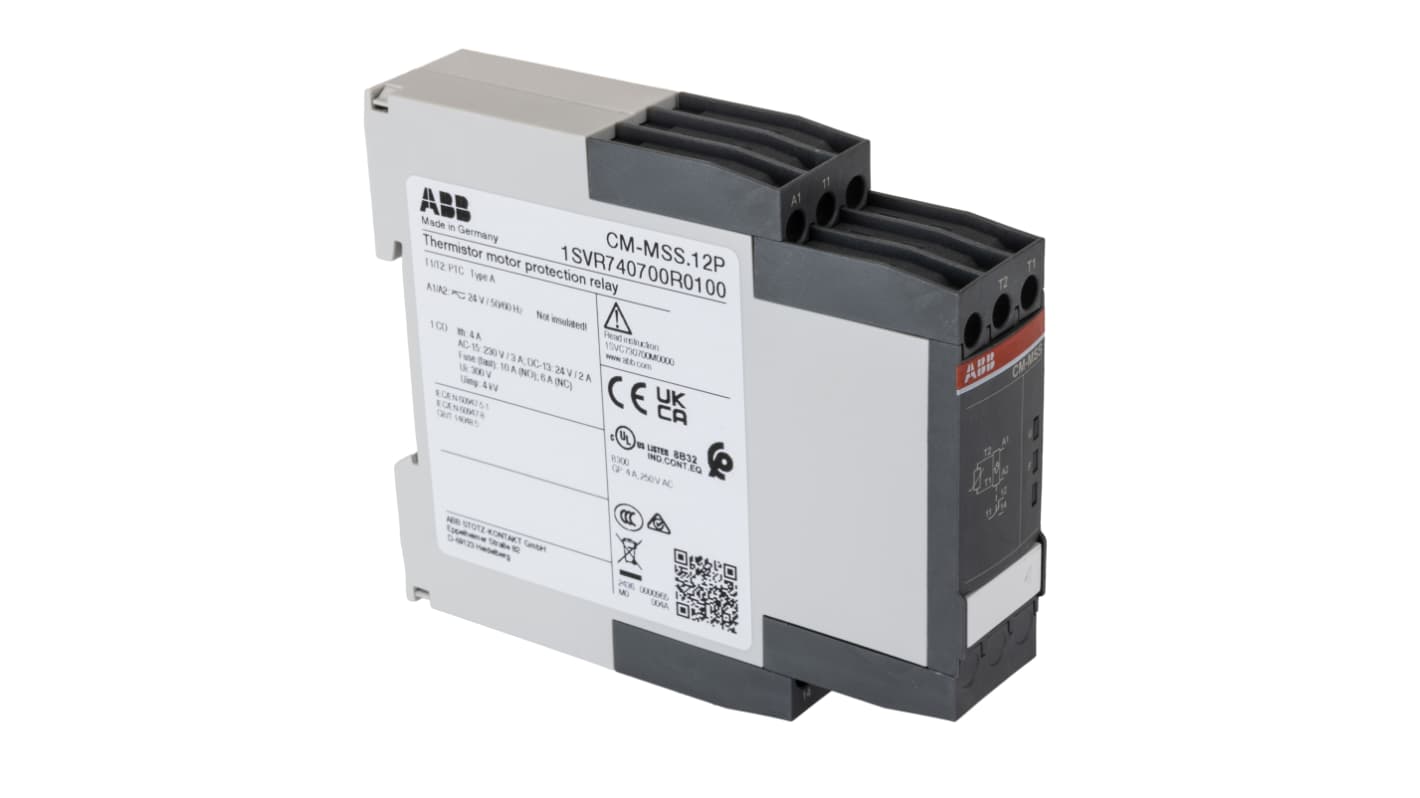

ABB Monitoring Relay, SPDT Contact Configuration, Temperature Monitoring - 1SVR740700R0100 CM-MSS.12P

This monitoring relay is intended for temperature monitoring and features a compact design of 103.7x22.5x85.6mm. It provides a dependable solution for protecting motors from overheating by using thermistor sensors. The relay operates within a temperature range of -25 to +60°C, ensuring durability and performance in industrial settings.

Features & Benefits

• Automatic reset feature for simplified operation
• Compact design suitable for installations with limited space
• Overvoltage protection for enhanced circuit safety
• Tool-free DIN rail mounting for improved efficiency
• Quick connections with screwless terminal type
• Maximum current support of 3.7mA for monitoring

Applications

• Protection of motors in industrial environments
• Ideal for automation systems requiring dependable temperature monitoring
• Suitable for thermal protection of electrical machinery
• Applicable in environments prone to overheating

Can it monitor winding temperatures effectively?

Yes, it monitors winding temperatures to help prevent overheating.

Will it provide an automatic reset after a fault?

Yes, it includes an automatic reset function after cooling.

Is it suitable for installation in tight spaces?

Yes, its compact dimensions allow for installation in confined areas.

Can it be mounted without using tools?

Yes, it is designed for tool-free mounting on DIN rails.

Does it require electrical isolation between circuits?

No, the supply and measuring circuits are not electrically isolated.

Units	Per unit
1 - 4	£71.84
5 - 9	£68.25
10 - 24	£64.67
25 - 49	£61.06
50 +	£57.48

ABB Temperature Monitoring Relay, SPDT, DIN Rail
