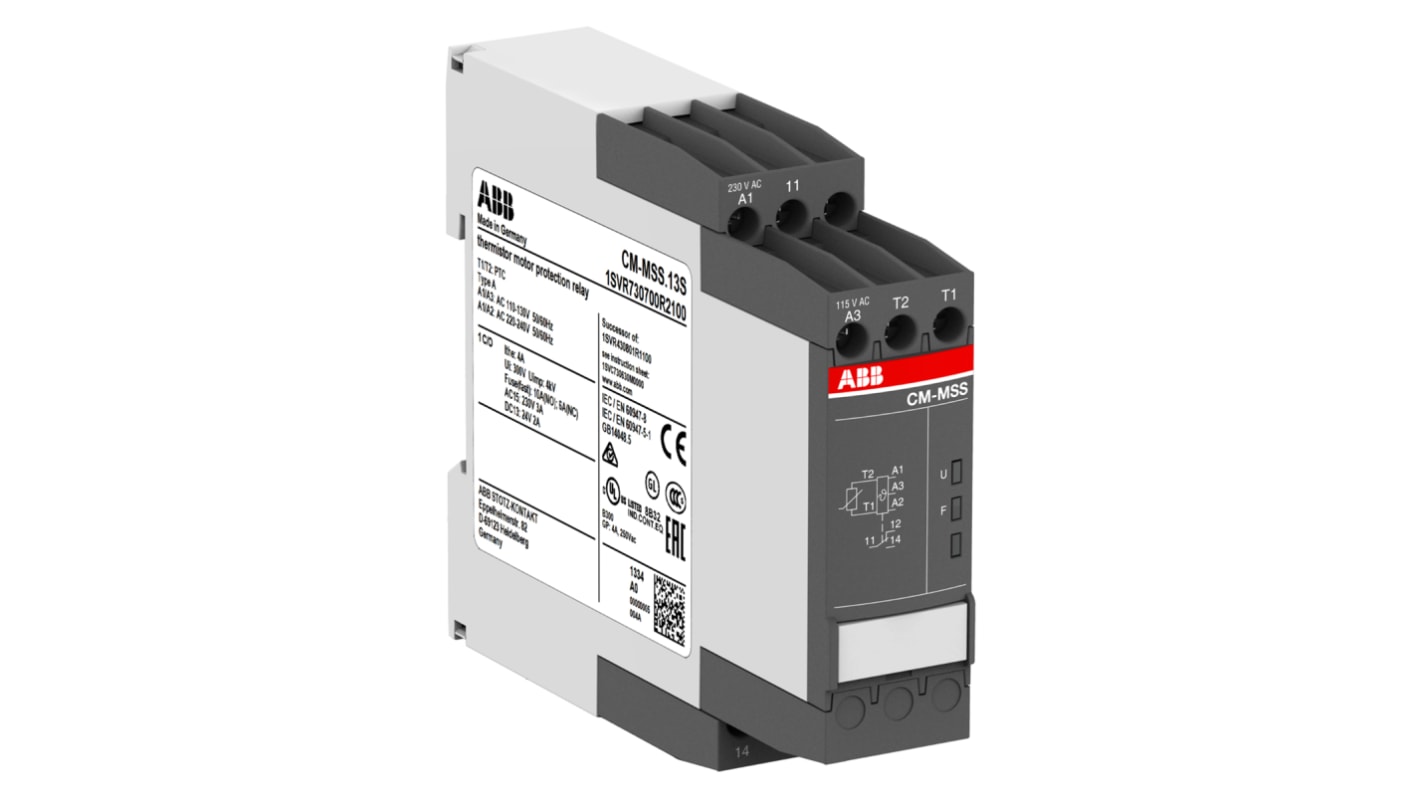

ABB Temperature Monitoring Relay, 1 Phase, SPDT, DIN Rail
- RS Stock No.:
- 876-4995
- Mfr. Part No.:
- 1SVR730700R2100 CM-MSS.13S
- Brand:
- ABB
Subtotal (1 unit)*
£69.73
(exc. VAT)
£83.68
(inc. VAT)
FREE delivery for orders over £50.00
- 16 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £69.73 |
| 5 - 9 | £66.25 |
| 10 - 24 | £62.76 |
| 25 - 49 | £59.28 |
| 50 + | £55.79 |
*price indicative
- RS Stock No.:
- 876-4995
- Mfr. Part No.:
- 1SVR730700R2100 CM-MSS.13S
- Brand:
- ABB
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Monitoring Application | Temperature | |
| Electrical Phase | 1 | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Time Delay | <100ms | |
| Frequency Sensing Range | 50 → 60Hz | |
| Temperature Sensitivity | Overtemperature, Winding Temperature | |
| Series | CM-MSS | |
| Minimum Operating Temperature | -25°C | |
| Width | 22.5mm | |
| Maximum Operating Temperature | +60°C | |
| Dimensions | 103.7 x 22.5 x 85.6mm | |
| Current Range | Maximum of 3.7mA | |
| Minimum Temperature Sensed | -25°C | |
| Terminal Type | Screw | |
| Special Features | Automatic Reset, Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, One Measuring Circuit, Over Heating Protection, Over Load Protection | |
| Number of Poles | 1 | |
| Height | 85.6mm | |
| Length | 103.7mm | |
| Minimum Frequency Sensed | 50Hz | |
| Maximum Temperature Sensed | +85°C | |
| Maximum Voltage Sensed | 240V | |
| Operating Temperature Range | -25 → +60°C | |
Select all | ||
|---|---|---|
Brand ABB | ||
Monitoring Application Temperature | ||
Electrical Phase 1 | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Time Delay <100ms | ||
Frequency Sensing Range 50 → 60Hz | ||
Temperature Sensitivity Overtemperature, Winding Temperature | ||
Series CM-MSS | ||
Minimum Operating Temperature -25°C | ||
Width 22.5mm | ||
Maximum Operating Temperature +60°C | ||
Dimensions 103.7 x 22.5 x 85.6mm | ||
Current Range Maximum of 3.7mA | ||
Minimum Temperature Sensed -25°C | ||
Terminal Type Screw | ||
Special Features Automatic Reset, Fail-Safe, Inbuilt PTC Sensor, Insufficient Cooling Protection, One Measuring Circuit, Over Heating Protection, Over Load Protection | ||
Number of Poles 1 | ||
Height 85.6mm | ||
Length 103.7mm | ||
Minimum Frequency Sensed 50Hz | ||
Maximum Temperature Sensed +85°C | ||
Maximum Voltage Sensed 240V | ||
Operating Temperature Range -25 → +60°C | ||
