TDK 22nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±10% , Through Hole
- RS Stock No.:
- 194-0529
- Mfr. Part No.:
- FG28X7R1H223KNT00
- Brand:
- TDK
Bulk discount available
Subtotal (1 pack of 10 units)*
£1.30
(exc. VAT)
£1.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 790 unit(s) ready to ship
- Plus 900 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
10 - 90 | £0.13 | £1.30 |
100 - 240 | £0.078 | £0.78 |
250 - 490 | £0.072 | £0.72 |
500 - 990 | £0.065 | £0.65 |
1000 + | £0.059 | £0.59 |
*price indicative
- RS Stock No.:
- 194-0529
- Mfr. Part No.:
- FG28X7R1H223KNT00
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK | |
Capacitance | 22nF | |
Voltage | 50V dc | |
Package/Case | Radial | |
Mounting Type | Through Hole | |
Dielectric | X7R | |
Tolerance | ±10% | |
Dimensions | 4 x 5.5 x 2.5mm | |
Length | 4mm | |
Depth | 2.5mm | |
Height | 5.5mm | |
Series | FG | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Lead Spacing | 5 mm | |
Select all | ||
---|---|---|
Brand TDK | ||
Capacitance 22nF | ||
Voltage 50V dc | ||
Package/Case Radial | ||
Mounting Type Through Hole | ||
Dielectric X7R | ||
Tolerance ±10% | ||
Dimensions 4 x 5.5 x 2.5mm | ||
Length 4mm | ||
Depth 2.5mm | ||
Height 5.5mm | ||
Series FG | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
Lead Spacing 5 mm | ||
- COO (Country of Origin):
- DE

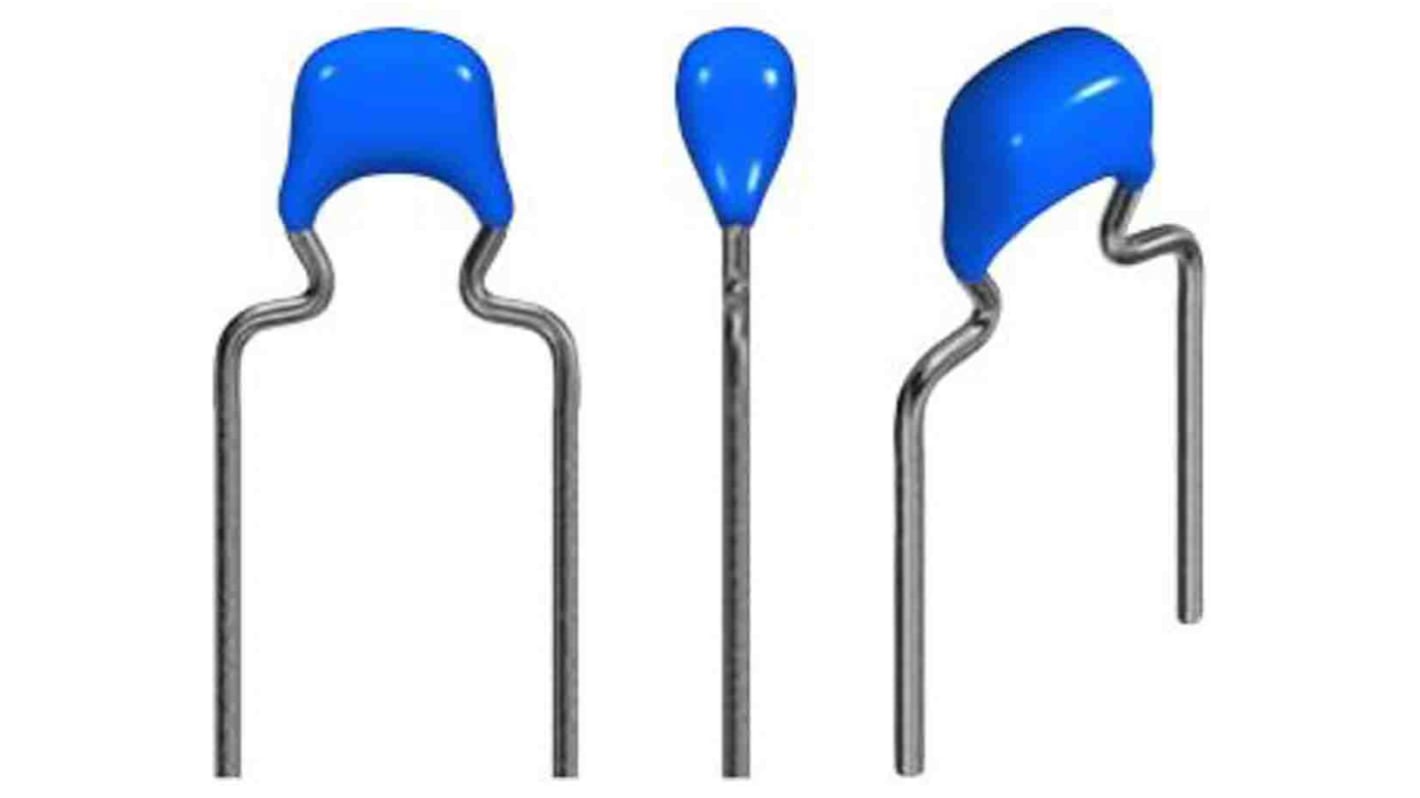

The TDKs FG series 0. 022uF multilayer ceramic capacitor has a dipped radial lead. It is widely used as bypass capacitors in switching power sources, smoothing capacitors, noise reduction, snubber circuits and PFC input filters.
Halogen free
Commercial grade
Bulk type packaging
Operating temperature –55 to +125°C
Commercial grade
Bulk type packaging
Operating temperature –55 to +125°C
