TDK 22 nF Multilayer Ceramic Capacitor, 100V dc, +10 %, Through Hole Radial
- RS Stock No.:
- 194-0614
- Mfr. Part No.:
- FG28X7R2A223KNT00
- Brand:
- TDK
Bulk discount available
Subtotal (1 pack of 10 units)*
£1.50
(exc. VAT)
£1.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 100 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.15 | £1.50 |
| 100 - 240 | £0.09 | £0.90 |
| 250 - 490 | £0.083 | £0.83 |
| 500 - 990 | £0.075 | £0.75 |
| 1000 + | £0.068 | £0.68 |
*price indicative
- RS Stock No.:
- 194-0614
- Mfr. Part No.:
- FG28X7R2A223KNT00
- Brand:
- TDK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK | |
| Product Type | Multilayer Ceramic Capacitor | |
| Capacitance | 22nF | |
| Voltage | 100V dc | |
| Mount Type | Through Hole | |
| Packaging | Bulk | |
| Dielectric | X7R | |
| Tolerance | +10 % | |
| Automotive Standard | No | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Radial | |
| Series | FG | |
| Length | 4mm | |
| Height | 5.5mm | |
| Standards/Approvals | RoHS | |
| Width | 2.5mm | |
| Maximum Operating Temperature | 125°C | |
| Lead Spacing | 5mm | |
| Lead Diameter | 0.5mm | |
| Select all | ||
|---|---|---|
Brand TDK | ||
Product Type Multilayer Ceramic Capacitor | ||
Capacitance 22nF | ||
Voltage 100V dc | ||
Mount Type Through Hole | ||
Packaging Bulk | ||
Dielectric X7R | ||
Tolerance +10 % | ||
Automotive Standard No | ||
Minimum Operating Temperature -55°C | ||
Termination Type Radial | ||
Series FG | ||
Length 4mm | ||
Height 5.5mm | ||
Standards/Approvals RoHS | ||
Width 2.5mm | ||
Maximum Operating Temperature 125°C | ||
Lead Spacing 5mm | ||
Lead Diameter 0.5mm | ||

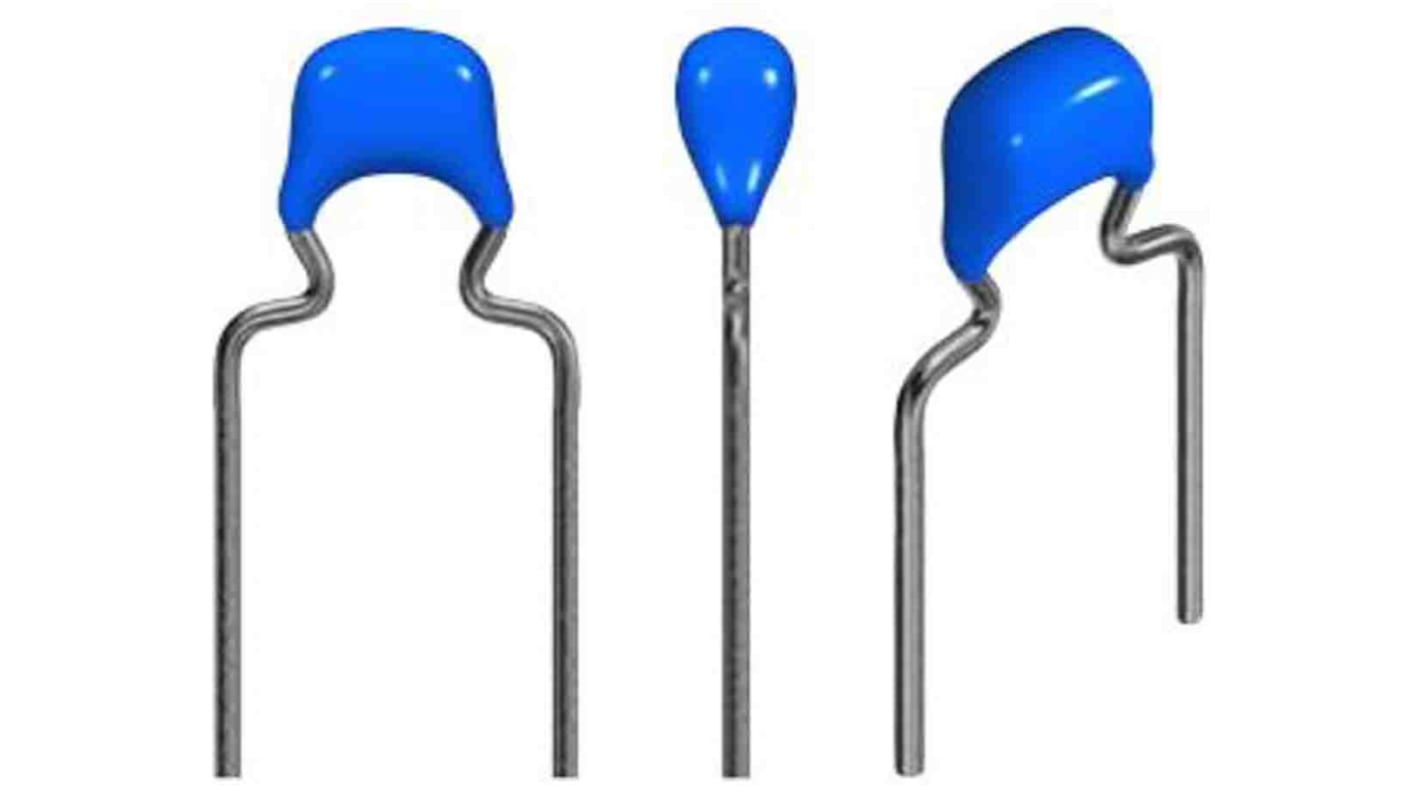

The TDKs FG series 0. 022uF multilayer ceramic capacitor has a dipped radial lead. It is widely used as bypass capacitors in switching power sources, smoothing capacitors, noise reduction, snubber circuits and PFC input filters.
Halogen free
Commercial grade
Bulk type packaging
Operating temperature –55 to +125°C
