TDK 22nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±10% , SMD

RS Stock No.:: 179-4876
Mfr. Part No.:: CGA3E2X8R1H223K080AA
Brand:: TDK

TDK 22nF Multilayer Ceramic Capacitor MLCC, 50V dc V, ±10% , SMD

View this category

4000 In stock - FREE next working day delivery available

Price Each (On a Reel of 4000)

£0.018

(exc. VAT)

£0.022

(inc. VAT)

Units	Per unit	Per Reel*
4000 - 8000	£0.018	£72.00
12000 +	£0.018	£72.00

*price indicative

RS Stock No.:: 179-4876
Mfr. Part No.:: CGA3E2X8R1H223K080AA
Brand:: TDK

Technical Reference

Datasheet

Legislation and Compliance

Product Details

Features
With a maximum temperature of 150°C and a capacitance change within ±15%, the series is suited for devices that operate in high-temperature environments.
Excellent DC bias properties.
Applications
Automotive applications (engine rooms)
Peripheral circuits of IGDT, SiC, GaN used at high temperature environments
Sensor Module
Smoothing and decoupling applications for other devices that operate at high temperature

Specifications

Attribute	Value
Capacitance	22nF
Voltage	50V dc
Package/Case	0603 (1608M)
Mounting Type	Surface Mount
Dielectric	X8R
Tolerance	±10%

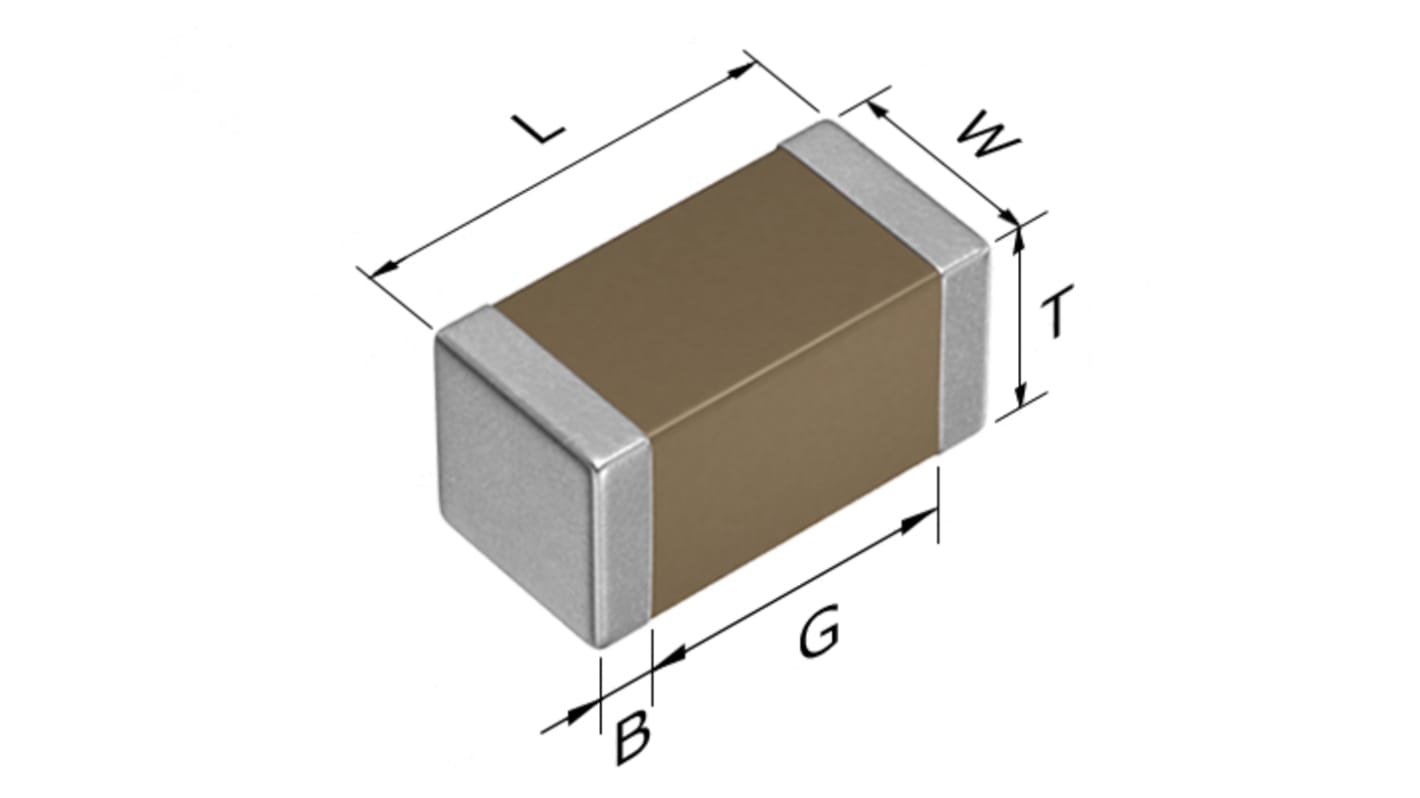

Dimensions	1.6 x 0.8 x 0.8mm
Automotive Standard	AEC-Q200
Length	1.6mm
Depth	0.8mm
Height	0.8mm
Series	CGA
Maximum Operating Temperature	+150°C
Minimum Operating Temperature	-55°C
Suppression Class	Class 2
