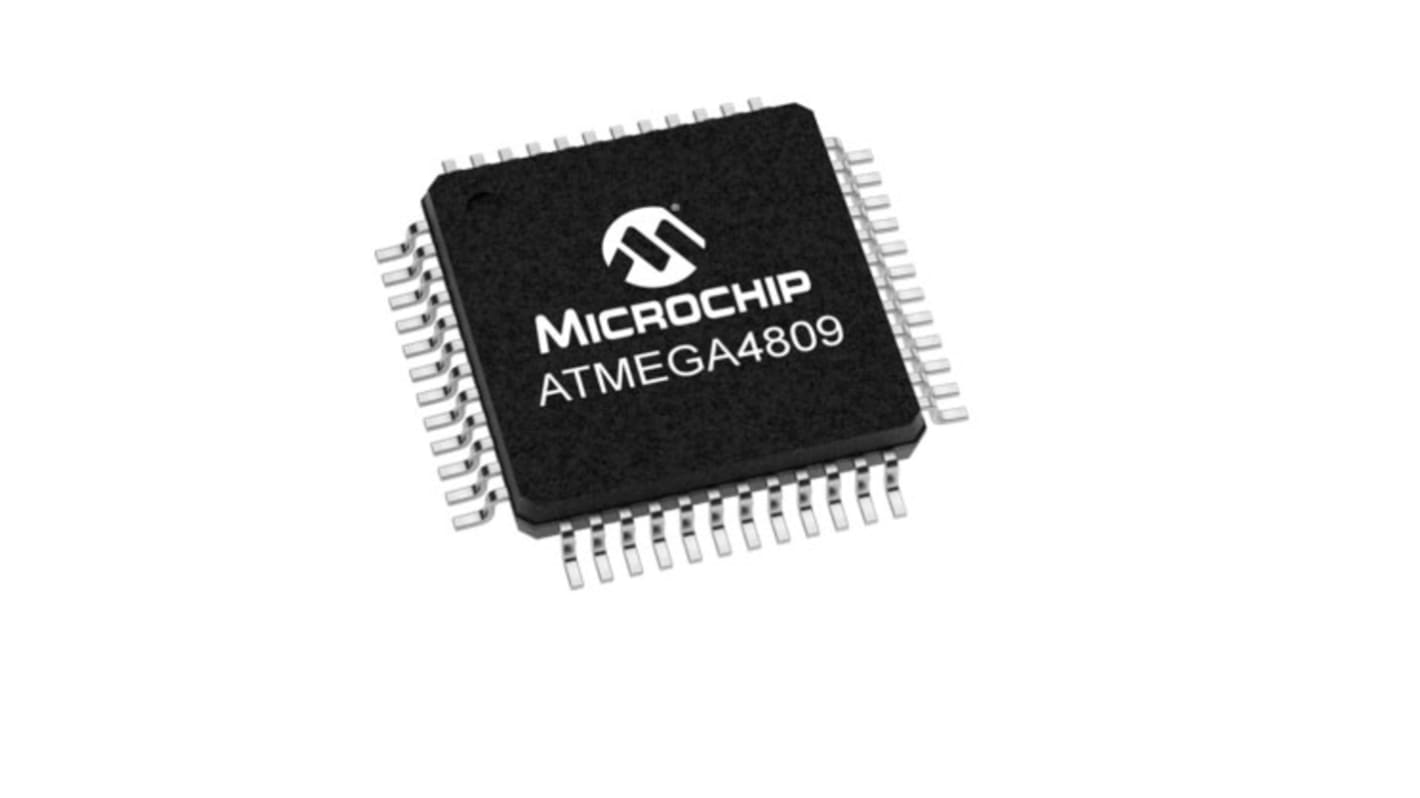

Microchip ATMEGA4809-AF, 8bit AVR Microcontroller, ATmega, 20MHz, 48 kB Flash, 48-Pin TQFP

RS Stock No.:: 193-6182
Mfr. Part No.:: ATMEGA4809-AF
Brand:: Microchip

Microchip ATMEGA4809-AF, 8bit AVR Microcontroller, ATmega, 20MHz, 48 kB Flash, 48-Pin TQFP

Subtotal (1 tray of 250 units)**

£312.50

(exc. VAT)

£375.00

(inc. VAT)

Available to back order for despatch 15/06/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit	Per Tray**
250 +	£1.25	£312.50

**price indicative

RS Stock No.:: 193-6182
Mfr. Part No.:: ATMEGA4809-AF
Brand:: Microchip

Datasheet ATMEGA4809-AF

Attribute	Value
Family Name	ATmega
Package Type	TQFP
Mounting Type	Surface Mount
Pin Count	48
Device Core	AVR
Data Bus Width	8bit
Program Memory Size	48 kB
Maximum Frequency	20MHz
RAM Size	6 kB
USB Channels	0
Number of PWM Units	0
Number of SPI Channels	1
Number of UART Channels	4
Number of USART Channels	4
Number of CAN Channels	0
Typical Operating Supply Voltage	1.8 → 5.5 V
Number of I2C Channels	1
Number of PCI Channels	0
Minimum Operating Temperature	-40 °C
Maximum Number of Ethernet Channels	0
Instruction Set Architecture	RISC
Number of ADC Units	1
ADCs	16 x 10 bit
Length	7mm
Maximum Operating Temperature	+125 °C
Number of Ethernet Channels	0
Program Memory Type	Flash
Pulse Width Modulation	0
Dimensions	7 x 7 x 1.05mm
Width	7mm
Height	1.05mm
Number of LIN Channels	0

Microchip ATMEGA4809-AF, 8bit AVR Microcontroller, ATmega, 20MHz, 48 kB Flash, 48-Pin TQFP
