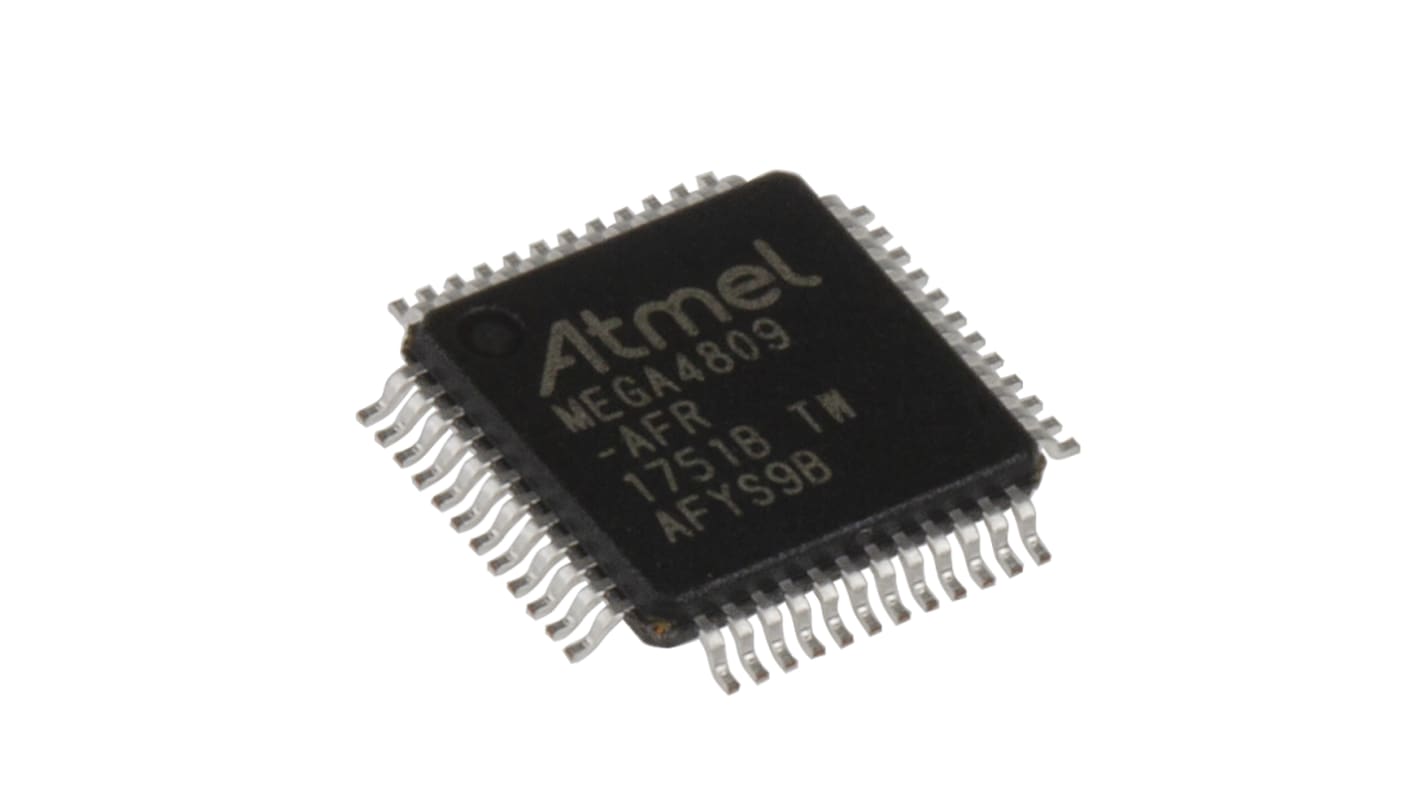

Microchip ATMEGA4809-AFR, 8bit AVR Microcontroller, ATmega, 20MHz, 48 kB Flash, 48-Pin TQFP

RS Stock No.:: 175-3197
Mfr. Part No.:: ATMEGA4809-AFR
Brand:: Microchip

Microchip ATMEGA4809-AFR, 8bit AVR Microcontroller, ATmega, 20MHz, 48 kB Flash, 48-Pin TQFP

50 In stock - FREE next working day delivery available

15 available from Europe for delivery within 2 working day(s).

Price Each (In a Pack of 5)

£1.54

(exc. VAT)

£1.85

(inc. VAT)

Units	Per unit	Per Pack*
5 - 20	£1.54	£7.70
25 - 95	£1.494	£7.47
100 +	£1.44	£7.20

*price indicative

RS Stock No.:: 175-3197
Mfr. Part No.:: ATMEGA4809-AFR
Brand:: Microchip

Datasheet

Attribute	Value
Family Name	ATmega
Package Type	TQFP
Mounting Type	Surface Mount
Pin Count	48
Device Core	AVR
Data Bus Width	8bit
Program Memory Size	48 kB
Maximum Frequency	20MHz
RAM Size	6 kB
USB Channels	0
Number of PWM Units	1
Number of SPI Channels	1
Number of UART Channels	4
Number of CAN Channels	0
Number of I2C Channels	1
Typical Operating Supply Voltage	1.8 → 5.5 V
Number of USART Channels	4
Number of ADC Units	1
Number of Ethernet Channels	0
Instruction Set Architecture	RISC
Minimum Operating Temperature	-40 °C
Maximum Number of Ethernet Channels	0
Number of PCI Channels	0
Program Memory Type	Flash
Dimensions	7 x 7 x 1.05mm
Width	7mm
Number of LIN Channels	0
Height	1.05mm
ADCs	16 x 10 bit
Length	7mm
Maximum Operating Temperature	+125 °C
Pulse Width Modulation	1 (11 Channel)

Microchip ATMEGA4809-AFR, 8bit AVR Microcontroller, ATmega, 20MHz, 48 kB Flash, 48-Pin TQFP
