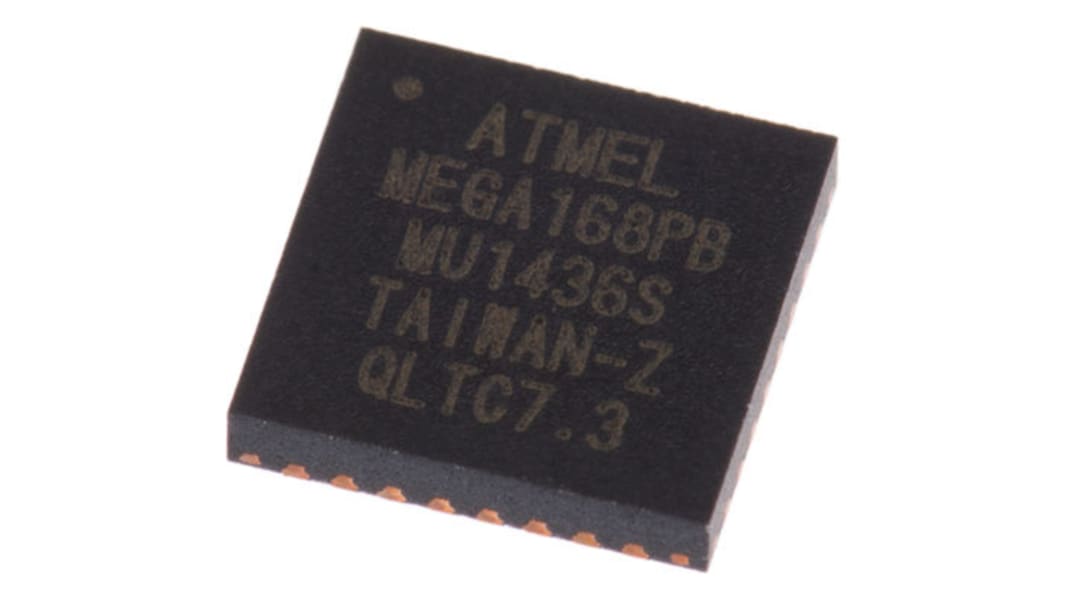

Microchip ATMEGA168PB-MU, 8bit AVR Microcontroller, ATmega, 20MHz, 16 kB Flash, 32-Pin VFQFN
- RS Stock No.:
- 127-8270
- Mfr. Part No.:
- ATMEGA168PB-MU
- Brand:
- Microchip
Subtotal (1 pack of 5 units)**
£5.75
(exc. VAT)
£6.90
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Pack** |
|---|---|---|
| 5 - 5 | £1.15 | £5.75 |
| 10 - 20 | £1.082 | £5.41 |
| 25 - 95 | £1.06 | £5.30 |
| 100 + | £0.958 | £4.79 |
**price indicative
- RS Stock No.:
- 127-8270
- Mfr. Part No.:
- ATMEGA168PB-MU
- Brand:
- Microchip
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Family Name | ATmega | |
| Package Type | VFQFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 32 | |
| Device Core | AVR | |
| Data Bus Width | 8bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 1.024 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 1 | |
| Number of SPI Channels | 2 | |
| Number of CAN Channels | 0 | |
| Number of USART Channels | 1 | |
| Typical Operating Supply Voltage | 1.8 → 5.5 V | |
| Number of I2C Channels | 1 | |
| Number of UART Channels | 1 | |
| Width | 5.1mm | |
| Dimensions | 5.1 x 5.1 x 0.85mm | |
| Height | 0.85mm | |
| ADCs | 8 x 10 bit | |
| Length | 5.1mm | |
| Maximum Operating Temperature | +85 °C | |
| Pulse Width Modulation | 1 (6 Channel) | |
| Number of ADC Units | 1 | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Program Memory Type | Flash | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Family Name ATmega | ||
Package Type VFQFN | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Device Core AVR | ||
Data Bus Width 8bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 1.024 kB | ||
USB Channels 0 | ||
Number of PWM Units 1 | ||
Number of SPI Channels 2 | ||
Number of CAN Channels 0 | ||
Number of USART Channels 1 | ||
Typical Operating Supply Voltage 1.8 → 5.5 V | ||
Number of I2C Channels 1 | ||
Number of UART Channels 1 | ||
Width 5.1mm | ||
Dimensions 5.1 x 5.1 x 0.85mm | ||
Height 0.85mm | ||
ADCs 8 x 10 bit | ||
Length 5.1mm | ||
Maximum Operating Temperature +85 °C | ||
Pulse Width Modulation 1 (6 Channel) | ||
Number of ADC Units 1 | ||
Instruction Set Architecture RISC | ||
Minimum Operating Temperature -40 °C | ||
Maximum Number of Ethernet Channels 0 | ||
Number of Ethernet Channels 0 | ||
Program Memory Type Flash | ||
