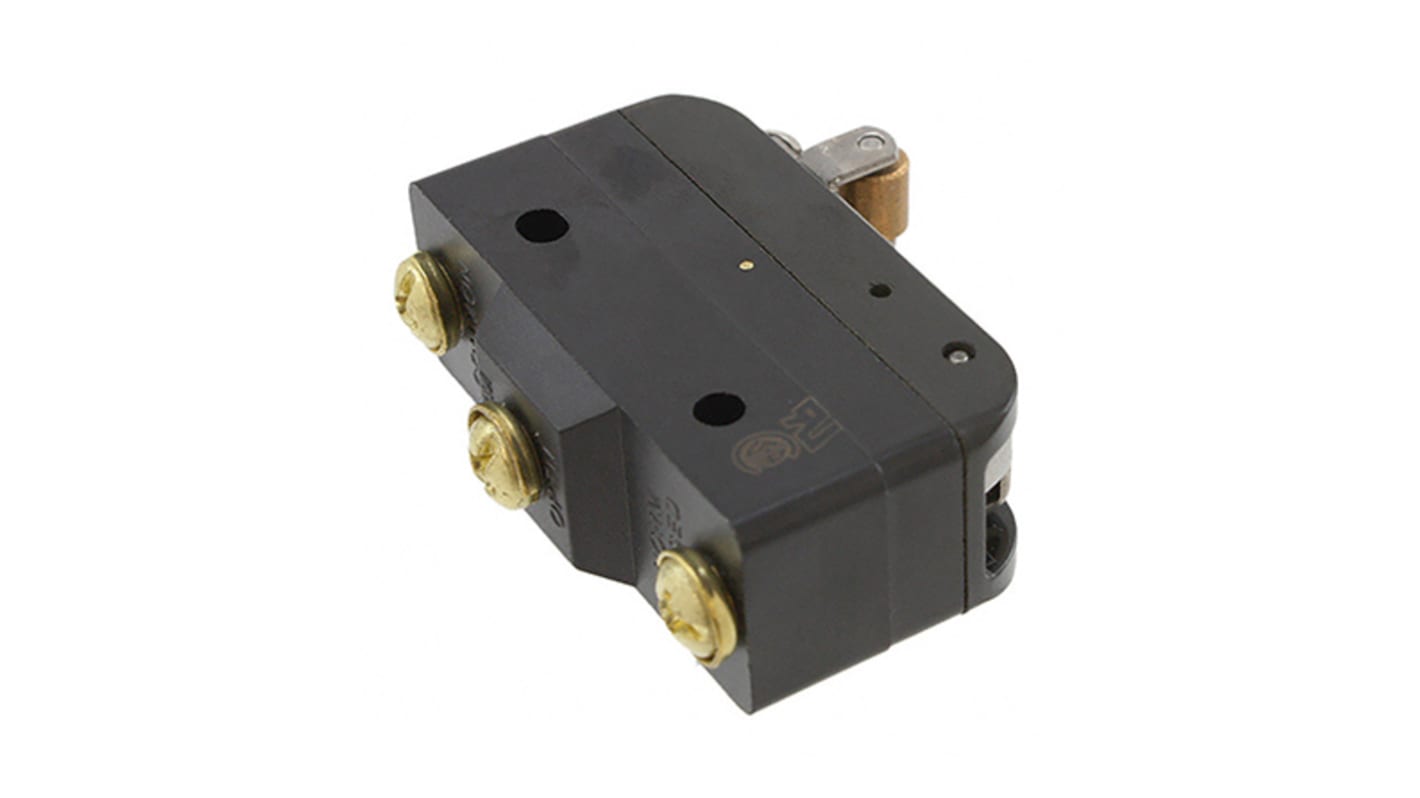

Honeywell Technologies Roller Lever Micro Switch, Screw Terminal, 10A, 125 V ac, SPCO

RS Stock No.:: 842-8945
Mfr. Part No.:: BZ-RW922-A2
Brand:: Honeywell Technologies

Honeywell Technologies Roller Lever Micro Switch, Screw Terminal, 10A, 125 V ac, SPCO

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 842-8945
Mfr. Part No.:: BZ-RW922-A2
Brand:: Honeywell Technologies

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell Technologies
	Product Type	Micro Switch
	Actuator Type	Roller Lever
	Terminal Type	Screw
	Switch Contact Current	10A
	Housing Material	Phenolic
	Contact Configuration	SPCO
	Operating Force	3.34N
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	85°C
	Contact AC Voltage	125V ac
	Microswitch Type	Standard
	Mechanical Life	20000000Operations
	Series	BZ
	Length	50.8mm
	Width	17.8mm
	Standards/Approvals	UL, CSA
	Hazardous Area Certification	No

	Select all
	Brand Honeywell Technologies
	Product Type Micro Switch
	Actuator Type Roller Lever
	Terminal Type Screw
	Switch Contact Current 10A
	Housing Material Phenolic
	Contact Configuration SPCO
	Operating Force 3.34N
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 85°C
	Contact AC Voltage 125V ac
	Microswitch Type Standard
	Mechanical Life 20000000Operations
	Series BZ
	Length 50.8mm
	Width 17.8mm
	Standards/Approvals UL, CSA
	Hazardous Area Certification No

COO (Country of Origin):: MX

Honeywell Series BZ Micro Switch, 50.8mm Length, 17.8mm Width - BZ-RW922-A2

This micro switch provides a Compact electromechanical switching solution for industrial control tasks. It employs a roller lever actuator and screw-style terminals to offer straightforward mechanical actuation and wiring. The unit is constructed with a phenolic enclosure and is intended for environments where ingress protection and temperature tolerance are required. It is designed to function within a wide ambient temperature range and meets recognised safety approvals for electrical equipment.

Features and Benefits:

• IP64 ingress protection keeps internal contacts free from dust and splashing water
• Rated for 125 V AC operation to support common control voltages
• Screw Terminal connections allow secure field wiring and maintenance
• Roller lever actuator delivers repeatable mechanical trigger action
• Mechanical endurance of 20,000,000 cycles enables prolonged service life

Applications

• Suitable for industrial control panel limit detection
• Ideal for machinery safety interlock switching
• Used for conveyor position sensing in manufacturing
• Can be used for automated door or gate actuation feedback
• Appropriate for equipment operating in mild outdoor conditions

What temperature range can it operate within?

It functions between -55 °C and 85 °C, supporting cold-start and elevated-ambient use.

What construction materials contribute to its durability?

The body is MADE from phenolic material which provides electrical insulation and structural stability.

How is the switch wired into existing systems?

Electrical connections are MADE via screw terminals designed for secure conductor attachment.

Does it have recognised safety approvals for industrial deployment?

It holds UL and CSA approvals for applicable electrical safety requirements.
