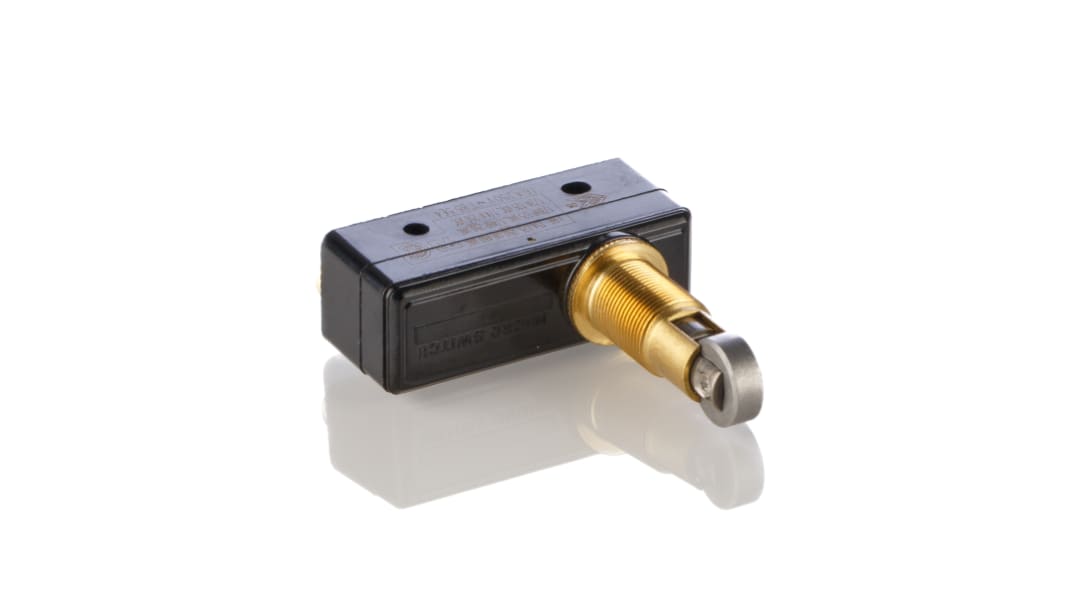

Honeywell Plunger Micro Switch, Screw Terminal, 15 A, 250 V ac, SPCO

RS Stock No.:: 842-6655
Mfr. Part No.:: BZ-2RQ181-A2
Brand:: Honeywell

Honeywell Plunger Micro Switch, Screw Terminal, 15 A, 250 V ac, SPCO

Subtotal (1 unit)*

£54.22

(exc. VAT)

£65.06

(inc. VAT)

FREE delivery for orders over £50.00

Last RS stock

Final 12 unit(s), ready to ship

Units	Per unit
1 +	£54.22

*price indicative

RS Stock No.:: 842-6655
Mfr. Part No.:: BZ-2RQ181-A2
Brand:: Honeywell

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Honeywell
	Product Type	Micro Switch
	Actuator Type	Plunger
	Terminal Type	Screw
	Switch Contact Current	15 A
	Housing Material	Phenolic
	Contact Configuration	SPCO
	Operating Force	3.61N
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	85°C
	Microswitch Type	Standard
	Contact AC Voltage	250V ac
	Length	50.8mm
	Series	BZ
	Standards/Approvals	CSA, UL
	Hazardous Area Certification	No
	Mechanical Life	20000000Operations
	Width	17.8 mm

	Select all
	Brand Honeywell
	Product Type Micro Switch
	Actuator Type Plunger
	Terminal Type Screw
	Switch Contact Current 15 A
	Housing Material Phenolic
	Contact Configuration SPCO
	Operating Force 3.61N
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 85°C
	Microswitch Type Standard
	Contact AC Voltage 250V ac
	Length 50.8mm
	Series BZ
	Standards/Approvals CSA, UL
	Hazardous Area Certification No
	Mechanical Life 20000000Operations
	Width 17.8 mm

Honeywell SP-CO Plunger Microswitch, 3.61N Operating Force, 15A - BZ Series - BZ-2RQ181-A2

This microswitch from Honeywell is designed for on/off applications in industrial environments where the roller plunger needs to be at a 90° angle to the switch. Its case is made of a lightweight phenolic material that's highly durable and provides good insulation, making it safe to handle. This unit has a long lifespan of up to 20 million cycles, so it will last a long time and reduce the need for frequent replacement and maintenance. It has an elongated mounting hole that accepts both pins and screws, allowing for simple and versatile installation.

Features & Benefits

• Compact dimensions of 49.3 (length) x 17.5 (width) x 24.1mm (height) for use in tight spaces

• Silver contact material for excellent conductivity and arc resistance

• Broad operating temperature range of -55°C to +85°C for use in a variety of demanding environments

Applications

• Office equipment

• Test instruments

• Medical and dental equipment

• Valves

How much force does this microswitch require to activate?

The switch requires only 2.5 to 3.61N of operating force, so it's highly sensitive and reacts quickly for fast response times.

BZ Series Switches

The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.

Low operating force and differential travel

Elongated mounting hole for easier, more accurate mounting

Current rating ranges from 15 A to 25 A

Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment
