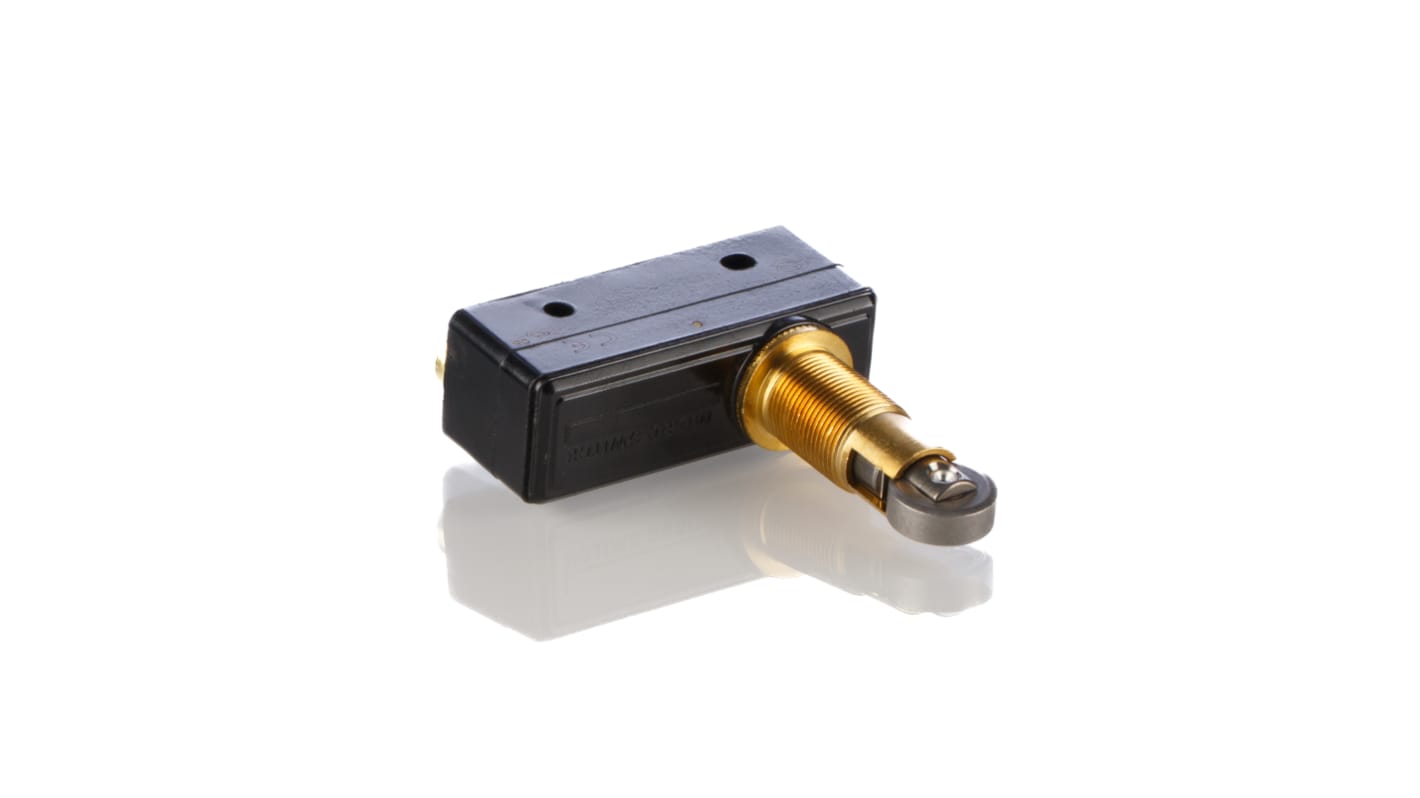

Honeywell Plunger Micro Switch, Screw Terminal, 15 A, SP-CO
- RS Stock No.:
- 842-6661
- Distrelec Article No.:
- 135-85-501
- Mfr. Part No.:
- BZ-2RQ18-A2
- Brand:
- Honeywell
Subtotal (1 unit)*
£60.85
(exc. VAT)
£73.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 138 unit(s) ready to ship
- Plus 25 unit(s) ready to ship from another location
- Plus 115 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £60.85 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£35.59
(exc. VAT)
£42.71
(inc. VAT)
- RS Stock No.:
- 842-6661
- Distrelec Article No.:
- 135-85-501
- Mfr. Part No.:
- BZ-2RQ18-A2
- Brand:
- Honeywell
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Honeywell | |
Actuator Type | Plunger | |
Terminal Type | Screw | |
Contact Current Rating | 15 A | |
Contact Configuration | SP-CO | |
Operating Force | 2.5 → 3.61 N | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Silver | |
Case Material | Phenolic | |
Mechanical Life | 20000000Operations | |
Voltage Rating | 125 V ac/dc, 250 V ac/dc | |
Release Force | 1.11N | |
Operating Temperature Range | -55 → +85°C | |
Standards Met | CSA, ENEC, UL | |
Select all | ||
---|---|---|
Brand Honeywell | ||
Actuator Type Plunger | ||
Terminal Type Screw | ||
Contact Current Rating 15 A | ||
Contact Configuration SP-CO | ||
Operating Force 2.5 → 3.61 N | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver | ||
Case Material Phenolic | ||
Mechanical Life 20000000Operations | ||
Voltage Rating 125 V ac/dc, 250 V ac/dc | ||
Release Force 1.11N | ||
Operating Temperature Range -55 → +85°C | ||
Standards Met CSA, ENEC, UL | ||
BZ Series Switches
The BZ series of switches feature a long mechanical life of up to 20,000,000 cycles at 95% survival and also have a choice of actuation, termination and operating characteristics.
Low operating force and differential travel
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment
Elongated mounting hole for easier, more accurate mounting
Current rating ranges from 15 A to 25 A
Typical applications include: irrigation systems, timing devices, test instruments and medical/dental equipment
Honeywell SP-CO Plunger Microswitch, Screw Terminal, 15A - BZ Series - BZ-2RQ18-A2
Use this snap-action plunger microswitch from Honeywell to convert mechanical energy into an electrical signal. It features silver contacts that provide good conductivity and ensure a secure connection. It's also housed in a sturdy phenolic case that's resistant to wear and burns, making it a good choice for use in extreme environments. A low operating force of 2.5 to 3.61N means it's sensitive enough to ensure quick response times in a variety of industrial and commercial applications.
Features & Benefits
• Long mechanical life of up to 20,000,000 cycles for long-lasting, reliable performance
• Screw terminals ensure a simple, secure connection without the need for a specialised mating connector
• Wide mounting hole for easier, more precise installation
• Screw terminals ensure a simple, secure connection without the need for a specialised mating connector
• Wide mounting hole for easier, more precise installation
Applications
• Timing devices
• Irrigation systems
• Medical and dental equipment
• Manually operated devices
• Valves
• Irrigation systems
• Medical and dental equipment
• Manually operated devices
• Valves
Can this component withstand extreme temperatures?
Thanks to its broad operating temperature range of -55°C to +85°C, this microswitch is suitable for use in a range of extreme environments. It can also withstand temporary exposure of temperatures up to +204°C, making it a good choice for high-heat applications.
