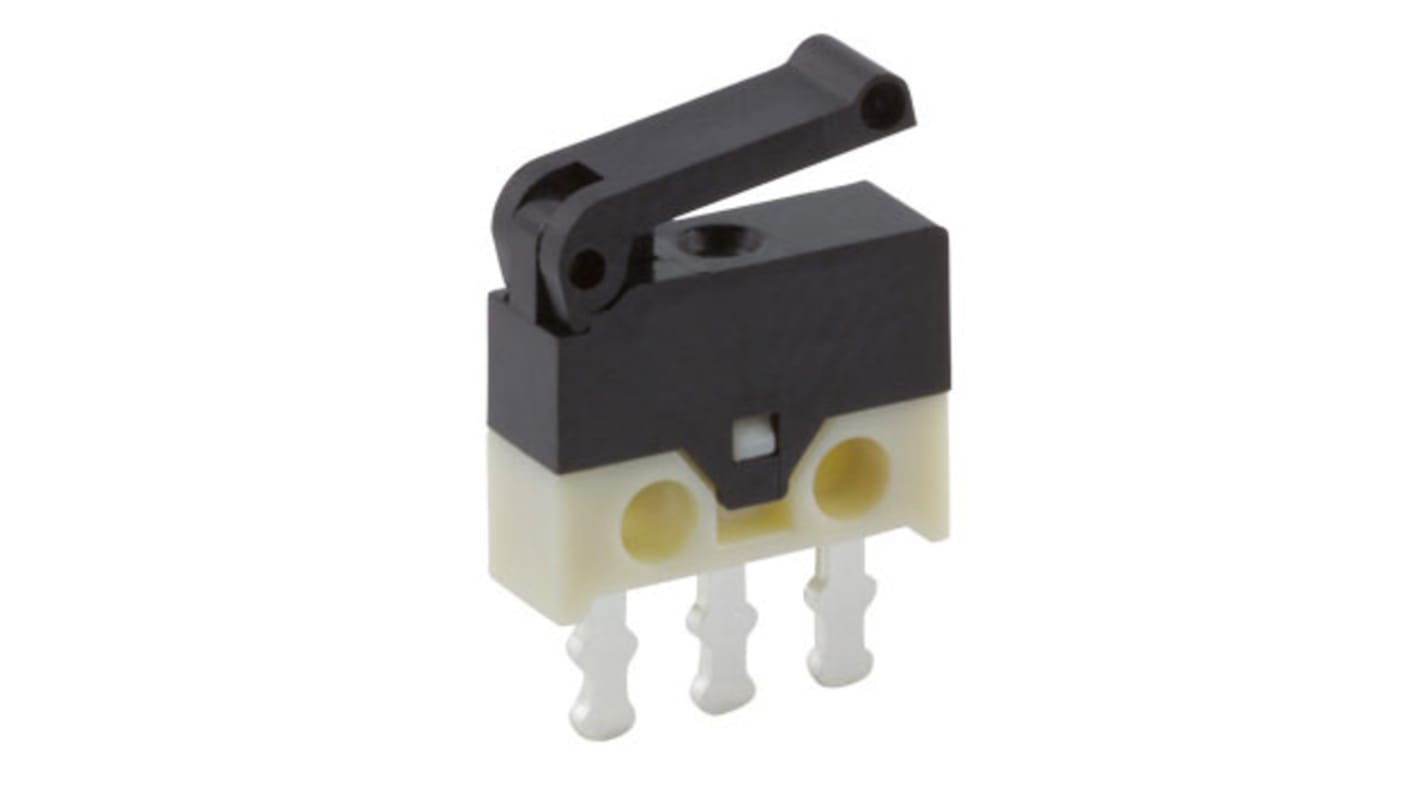

ZF Lever Subminiature Micro Switch, Solder Terminal, 500 mA, 30 V dc, SPDT, IP40
- RS Stock No.:
- 706-4159
- Mfr. Part No.:
- DH2C-B1PA
- Brand:
- ZF
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (Supplied in a Bag)
£5.59
(exc. VAT)
£6.71
(inc. VAT)
- RS Stock No.:
- 706-4159
- Mfr. Part No.:
- DH2C-B1PA
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Actuator Type | Lever | |
| Product Type | Subminiature Micro Switch | |
| Terminal Type | Solder | |
| Switch Contact Current | 500 mA | |
| Contact Configuration | SPDT | |
| Housing Material | Polyphenylene Sulphide | |
| IP Rating | IP40 | |
| Operating Force | 0.49N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Contact DC Voltage | 30V dc | |
| Microswitch Type | DH Ultra Miniature Switch | |
| Width | 6.2 mm | |
| Series | DH Ultra Miniature Switch | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Mechanical Life | 50Cycles | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Actuator Type Lever | ||
Product Type Subminiature Micro Switch | ||
Terminal Type Solder | ||
Switch Contact Current 500 mA | ||
Contact Configuration SPDT | ||
Housing Material Polyphenylene Sulphide | ||
IP Rating IP40 | ||
Operating Force 0.49N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Contact DC Voltage 30V dc | ||
Microswitch Type DH Ultra Miniature Switch | ||
Width 6.2 mm | ||
Series DH Ultra Miniature Switch | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Mechanical Life 50Cycles | ||
Subminiature Microswitch - DH Series
Ultraminiature dimensions : 8.2mm x 2.7mm x 6.2mm
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
