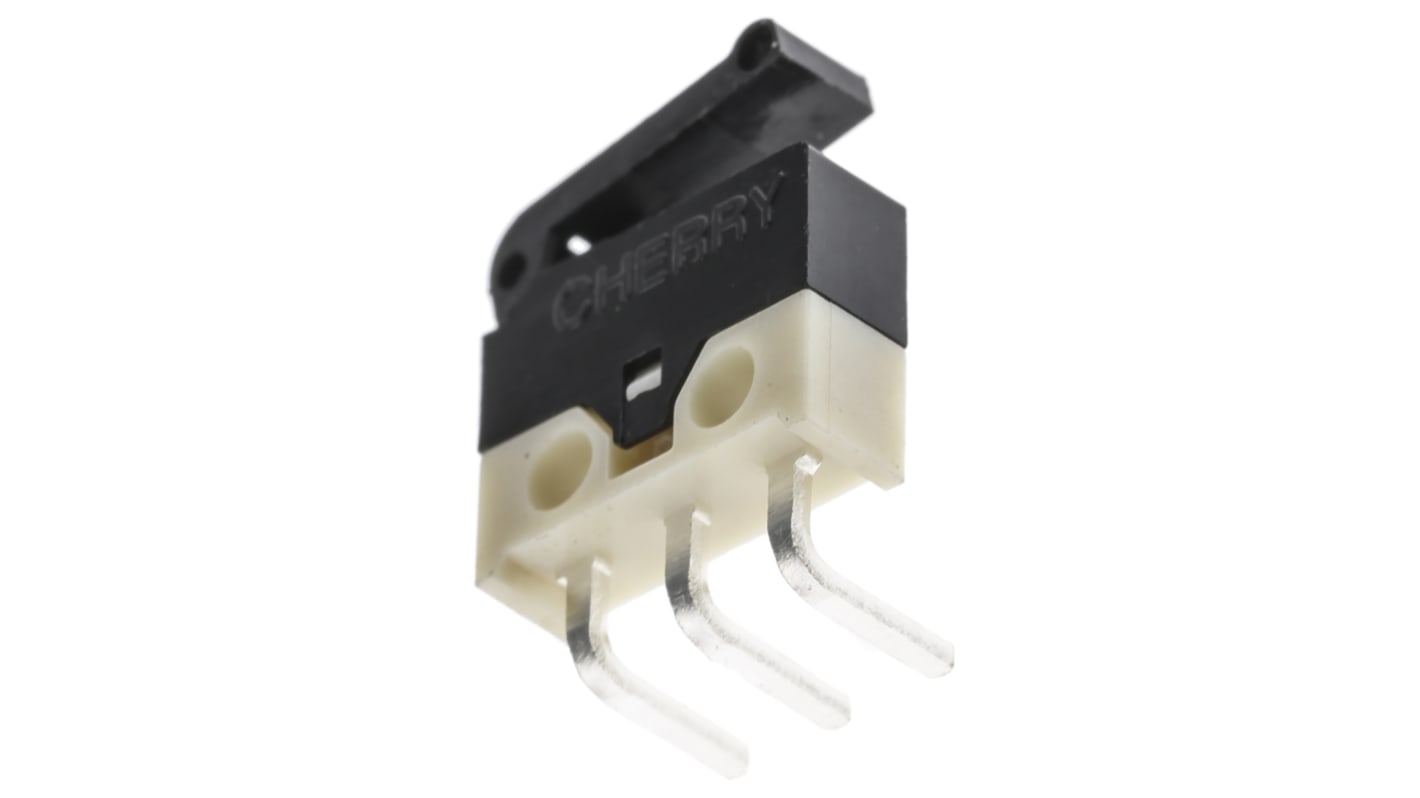

ZF Lever, Lever Subminiature Micro Switch, Left Angle PCB Terminal Terminal, 500 mA, 30 V, SPDT, IP40
- RS Stock No.:
- 706-4174
- Distrelec Article No.:
- 301-61-399
- Mfr. Part No.:
- DH2C-C5PA
- Brand:
- ZF
Bulk discount available
Subtotal (1 unit)*
£3.09
(exc. VAT)
£3.71
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 9 | £3.09 |
| 10 - 49 | £2.81 |
| 50 - 99 | £2.47 |
| 100 + | £2.18 |
*price indicative
- RS Stock No.:
- 706-4174
- Distrelec Article No.:
- 301-61-399
- Mfr. Part No.:
- DH2C-C5PA
- Brand:
- ZF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ZF | |
| Actuator Type | Lever, Lever | |
| Product Type | Subminiature Micro Switch | |
| Terminal Type | Left Angle PCB Terminal | |
| Switch Contact Current | 500 mA | |
| Housing Material | Polyphenylene Sulphide | |
| Contact Configuration | SPDT | |
| IP Rating | IP40 | |
| Operating Force | 0.49, 0.49N | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Microswitch Type | DH Ultra Miniature Switch | |
| Contact DC Voltage | 30V | |
| Series | DH Ultra Miniature Switch | |
| Mechanical Life | 50Cycles | |
| Hazardous Area Certification | No | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand ZF | ||
Actuator Type Lever, Lever | ||
Product Type Subminiature Micro Switch | ||
Terminal Type Left Angle PCB Terminal | ||
Switch Contact Current 500 mA | ||
Housing Material Polyphenylene Sulphide | ||
Contact Configuration SPDT | ||
IP Rating IP40 | ||
Operating Force 0.49, 0.49N | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Microswitch Type DH Ultra Miniature Switch | ||
Contact DC Voltage 30V | ||
Series DH Ultra Miniature Switch | ||
Mechanical Life 50Cycles | ||
Hazardous Area Certification No | ||
Standards/Approvals RoHS | ||
Subminiature Microswitch - DH Series
Ultraminiature dimensions : 8.2mm x 2.7mm x 6.2mm
Designed for low switching currents and voltages
Can be fitted to circuit boards in upright position or horizontally with formed terminals
