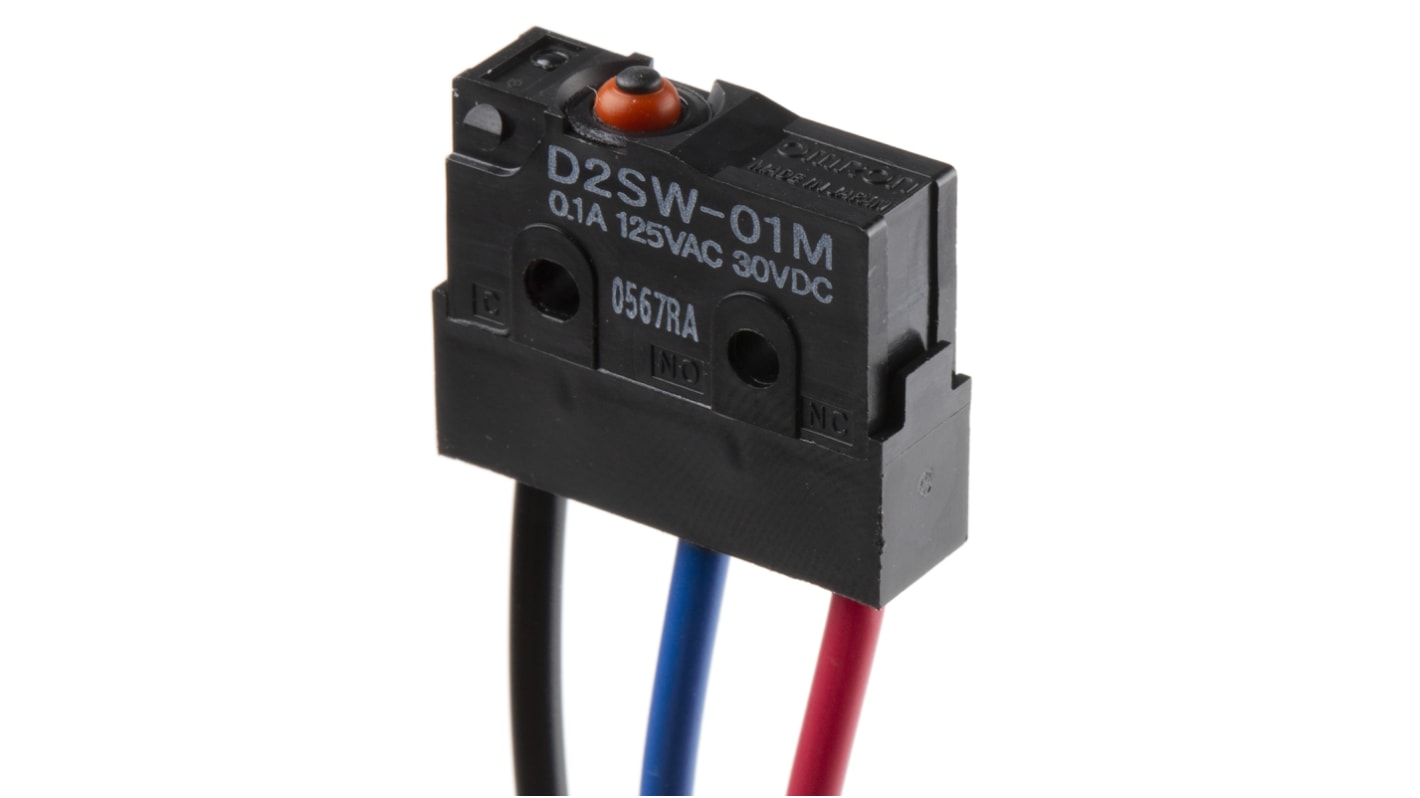

Omron Pin Plunger Micro Switch, Pre-wired Terminal, 100 mA @ 30 V dc, SPDT, IP67
- RS Stock No.:
- 682-2095
- Distrelec Article No.:
- 110-84-002
- Mfr. Part No.:
- D2SW-01M
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£8.33
(exc. VAT)
£10.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 244 unit(s) shipping from 03 November 2025
- Plus 105 unit(s) shipping from 03 November 2025
- Plus 280 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 49 | £8.33 |
| 50 - 149 | £6.87 |
| 150 - 249 | £4.81 |
| 250 - 499 | £4.59 |
| 500 + | £4.47 |
*price indicative
- RS Stock No.:
- 682-2095
- Distrelec Article No.:
- 110-84-002
- Mfr. Part No.:
- D2SW-01M
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Actuator Type | Pin Plunger | |
| Terminal Type | Pre-wired | |
| Contact Current Rating | 100 mA @ 30 V dc | |
| Contact Configuration | SPDT | |
| IP Rating | IP67 | |
| Operating Force | 1.77 N | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Gold Alloy | |
| Mechanical Life | 5000000Operations | |
| Release Force | 0.29N | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Actuator Type Pin Plunger | ||
Terminal Type Pre-wired | ||
Contact Current Rating 100 mA @ 30 V dc | ||
Contact Configuration SPDT | ||
IP Rating IP67 | ||
Operating Force 1.77 N | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Gold Alloy | ||
Mechanical Life 5000000Operations | ||
Release Force 0.29N | ||
Operating Temperature Range -40 → +85°C | ||
- COO (Country of Origin):
- JP
Sealed Miniature Microswitches
High quality sealed miniature microswitch in industry standard V4 housing
Monoblock construction assures high sealing capability and is ideal for dusty places or where water is sprayed
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C
IEC IP50 rated (solder/pcb terminal), IEC IP67 rated (wire lead )
RoHS compliant
Contact rating: 3A@30Vdc/125Vac, 2A@250Vac
Contact configuration: SPDT
Operating temperature range: -40 to +80°C
