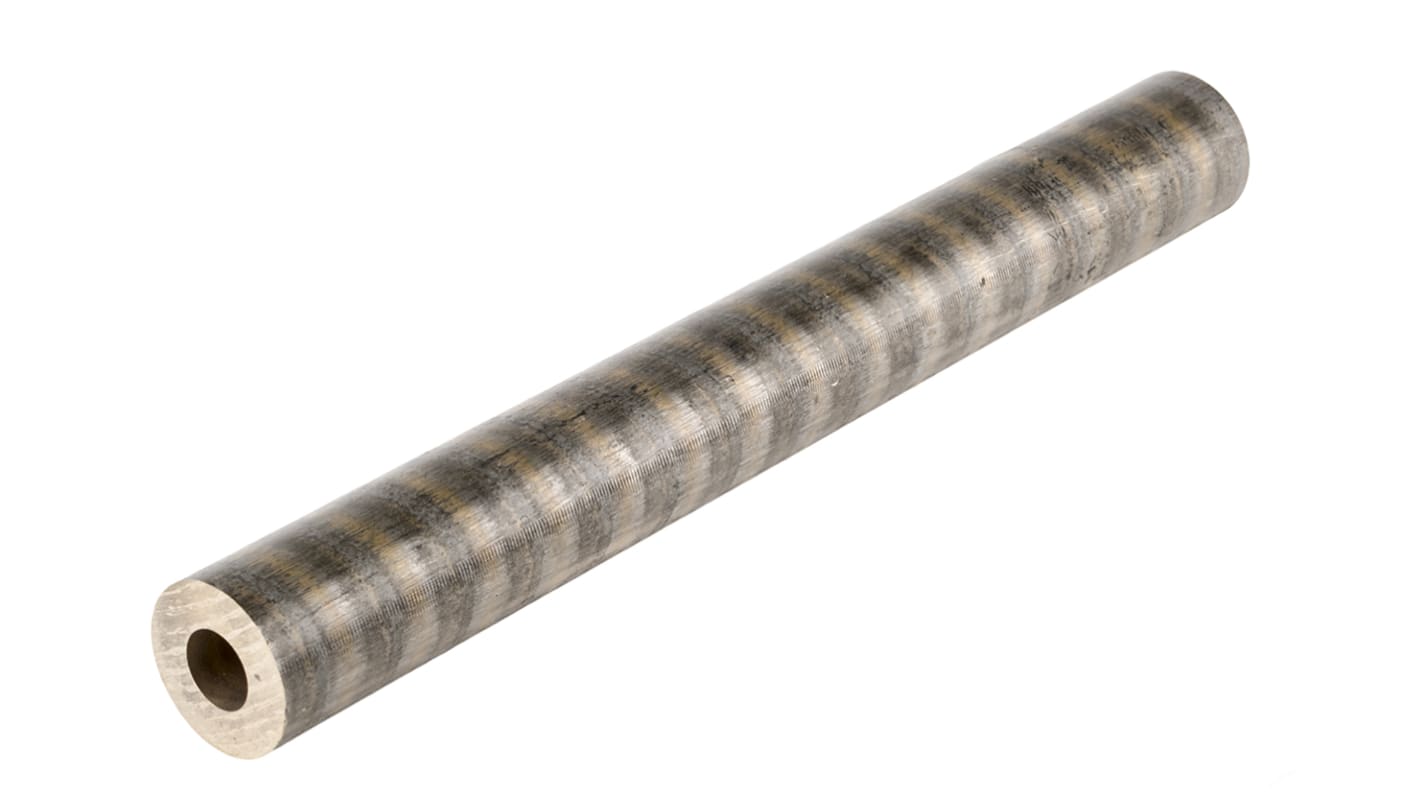

Round Leaded Gunmetal Metal Tube, 1 1/2in OD, 3/4in ID, 13in L, 1.5in W, 3/4in Thickness
- RS Stock No.:
- 181-9423
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£238.96
(exc. VAT)
£286.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 2 | £238.96 |
3 - 5 | £222.23 |
6 - 11 | £210.28 |
12 + | £191.17 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£411.98
(exc. VAT)
£494.38
(inc. VAT)
- RS Stock No.:
- 181-9423
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Material | Leaded Gunmetal | |
Tube Form | Round | |
Length | 13in | |
Width | 1.5in | |
Inner Diameter | 3/4in | |
Thickness | 3/4in | |
Outer Diameter | 1 1/2in | |
Thermal Conductivity | 33.6Btu | |
Tensile Strength | 241 Mpa | |
Density | 0.322lb/in³ | |
Suitability | Bearings, Bushings, Gears, Piston Rings, Pumps | |
Hardness | 65 HB | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Material Leaded Gunmetal | ||
Tube Form Round | ||
Length 13in | ||
Width 1.5in | ||
Inner Diameter 3/4in | ||
Thickness 3/4in | ||
Outer Diameter 1 1/2in | ||
Thermal Conductivity 33.6Btu | ||
Tensile Strength 241 Mpa | ||
Density 0.322lb/in³ | ||
Suitability Bearings, Bushings, Gears, Piston Rings, Pumps | ||
Hardness 65 HB | ||
RoHS Status: Exempt
Leaded Gunmetal, (Cast Lead Bronze)
A general purpose free-machining lead bronze. Although lower in tensile strength than phosphor bronze, it possesses good bearing properties with the ability to conform to minor shaft misalignments. The presence of lead reduces friction, running temperature and the possibility of seizure under conditions of poor lubrication.
Supplied in 13in lengths
Supplied in 13in lengths
Conforms to SAE 660 (SAE 660 can also be used as an alternative to BS 1400 LB4)
Typical applications - bearings, bushes, washers and linings and for conditions with less than adequate lubrication. It may also be used in conjunction with softer shaft materials than would be recommended for the harder lead-free phosphor bronze.
Standards
SAE 660; CuSn7Pb7Zn3 (ISO); BS 1400 LG4 (British); DIN 1705 Rg7 (German)
