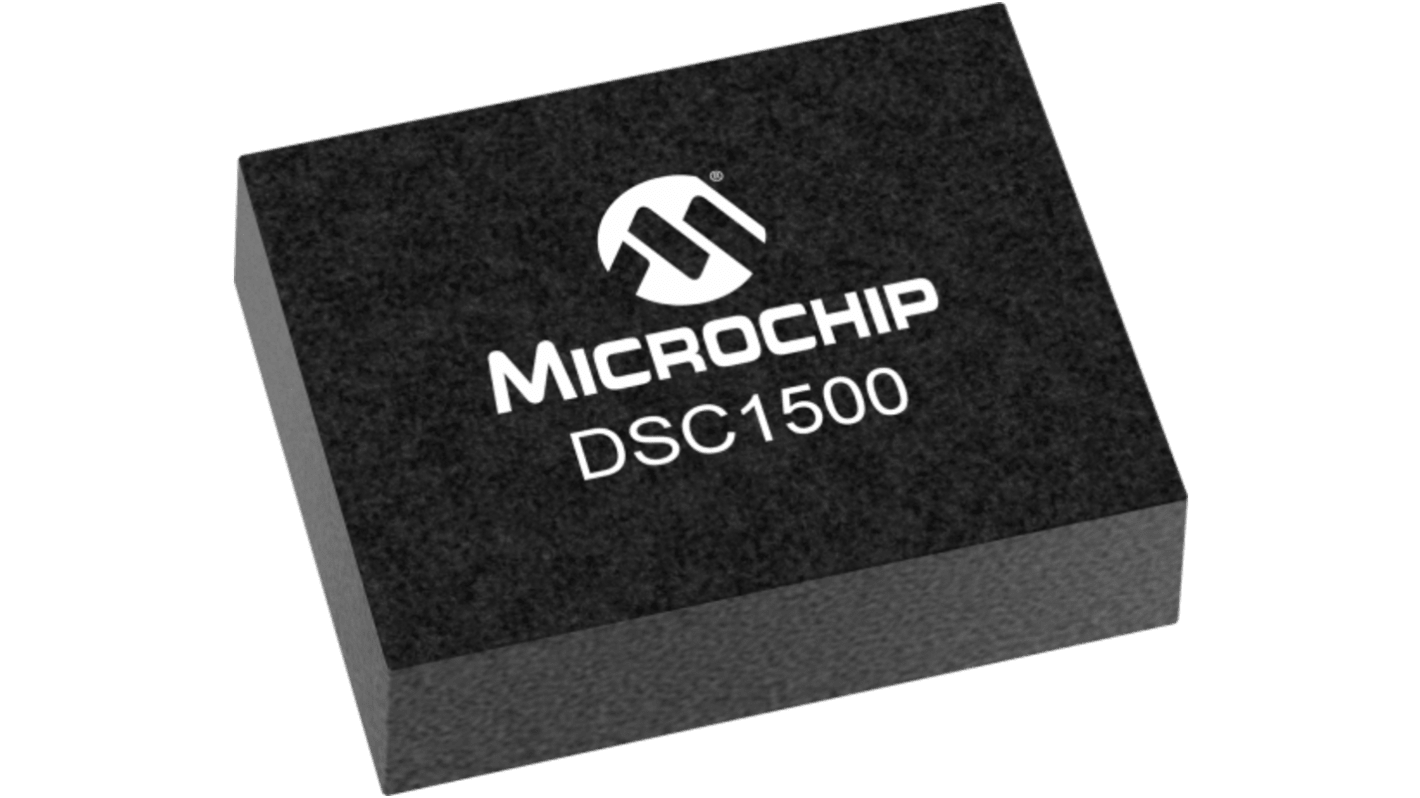

Microchip 170MHz MEMS MEMS Oscillator, 4-Pin VDFN, 20ppm, DSC1500BA3A-PROG
- RS Stock No.:
- 644-318
- Mfr. Part No.:
- DSC1500BA3A-PROG
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.46
(exc. VAT)
£5.35
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £0.892 | £4.46 |
50 - 245 | £0.784 | £3.92 |
250 - 495 | £0.704 | £3.52 |
500 + | £0.558 | £2.79 |
*price indicative
- RS Stock No.:
- 644-318
- Mfr. Part No.:
- DSC1500BA3A-PROG
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Oscillator Type | MEMS | |
Maximum Output Frequency | 170MHz | |
Frequency Stability | 20ppm | |
Mounting Type | Surface Mount | |
Package Type | VDFN | |
Pin Count | 4 | |
Select all | ||
---|---|---|
Brand Microchip | ||
Oscillator Type MEMS | ||
Maximum Output Frequency 170MHz | ||
Frequency Stability 20ppm | ||
Mounting Type Surface Mount | ||
Package Type VDFN | ||
Pin Count 4 | ||
- COO (Country of Origin):
- TH
The Microchip MEMS oscillator which offers excellent jitter and stability performance at a very low power over a wide range of supply voltage (1.71V to 3.63V) and temperature (–40°C to +125°C). The device operates from 2.3 MHz to 170 MHz with 2.5V and 3.3V supply voltage and from 2.3 MHz to 125 MHz with 1.8V supply voltage. The devices incorporate an all-silicon resonator that is extremely robust. A MEMS-based design allows for a higher level of reliability, making the DSC1500 ideal for rugged, industrial, and portable applications where stress, shock, and vibrations can damage quartz crystal-based systems.
MIL-STD 883 Shock and Vibration Resistant
Lead-Free and RoHS-Compliant
For AEC-Q100 qualified, refer to DSA1500 Family
Low Phase Jitter (1 ps Typical)
Standby Mode for Battery Life Saving
Lead-Free and RoHS-Compliant
For AEC-Q100 qualified, refer to DSA1500 Family
Low Phase Jitter (1 ps Typical)
Standby Mode for Battery Life Saving
