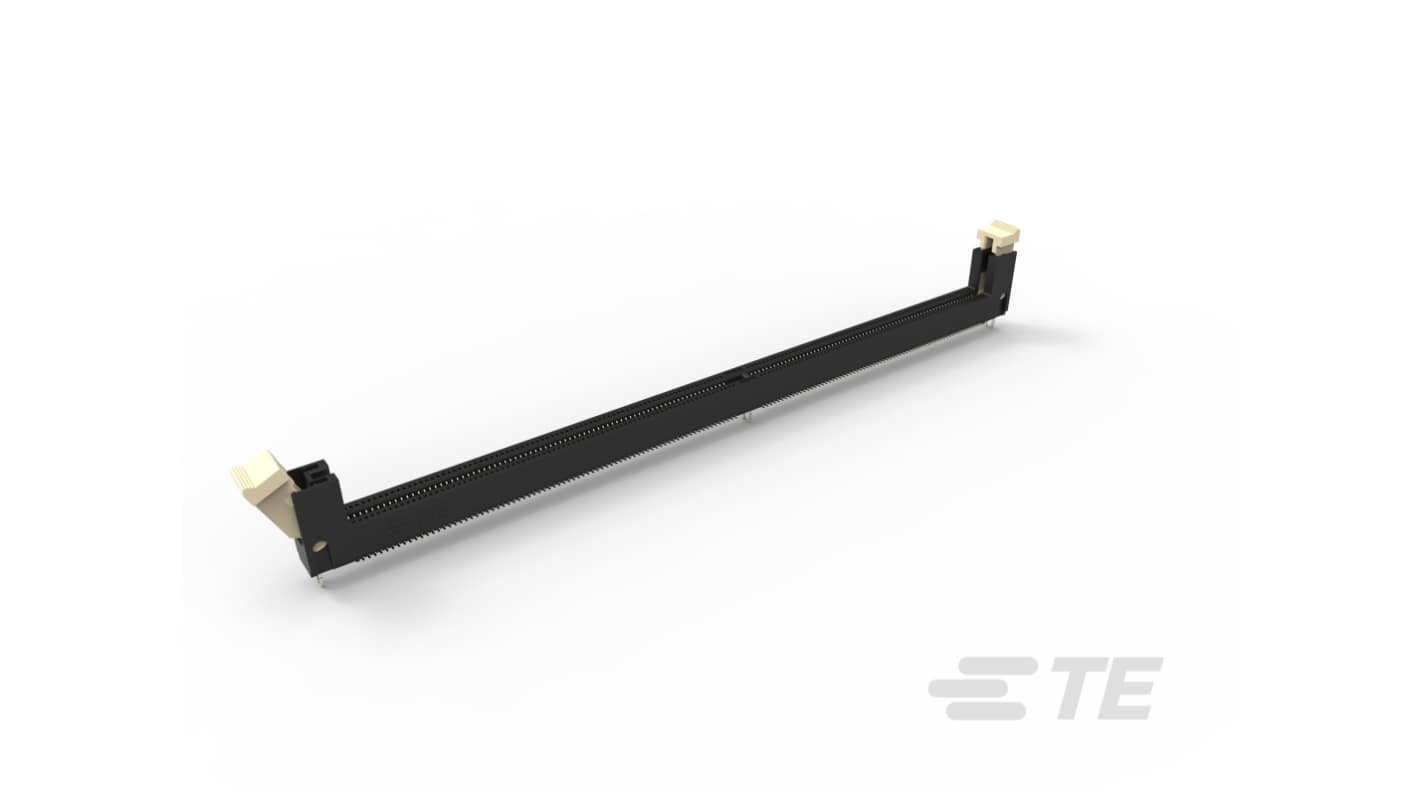

TE Connectivity 0.85 mm Pitch 288 Way, Vertical Board Mount DDR4 DIMM Socket ,1.2 V, 750mA
- RS Stock No.:
- 474-551
- Distrelec Article No.:
- 304-59-481
- Mfr. Part No.:
- 2199154-2
- Brand:
- TE Connectivity
Subtotal (1 tray of 100 units)*
£147.28
(exc. VAT)
£176.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s) | Per Tray | Per unit* |
|---|---|---|
| 1 + | £147.28 | £1.473 |
*price indicative
- RS Stock No.:
- 474-551
- Distrelec Article No.:
- 304-59-481
- Mfr. Part No.:
- 2199154-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Memory Socket Type | DIMM | |
| Product Type | DIMM Socket | |
| Insertion/Removal Method | Direct Insert | |
| Orientation | Vertical | |
| Contact Material | Copper Alloy | |
| Current | 750mA | |
| Contact Plating | Tin, Gold | |
| Number of Contacts | 288 | |
| Pitch | 0.85mm | |
| Mount Type | Board | |
| Housing Material | Nylon | |
| SDRAM Type | DDR4 | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 105°C | |
| Row Spacing | 2.2mm | |
| Standards/Approvals | EU RoHS Directive 2011/65/EU, UL 94V-0 | |
| Voltage | 1.2 V | |
| Series | DDR4 DIMM | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Memory Socket Type DIMM | ||
Product Type DIMM Socket | ||
Insertion/Removal Method Direct Insert | ||
Orientation Vertical | ||
Contact Material Copper Alloy | ||
Current 750mA | ||
Contact Plating Tin, Gold | ||
Number of Contacts 288 | ||
Pitch 0.85mm | ||
Mount Type Board | ||
Housing Material Nylon | ||
SDRAM Type DDR4 | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 105°C | ||
Row Spacing 2.2mm | ||
Standards/Approvals EU RoHS Directive 2011/65/EU, UL 94V-0 | ||
Voltage 1.2 V | ||
Series DDR4 DIMM | ||
- COO (Country of Origin):
- CN
The TE Connectivity Pin TH type is engineered to elevate your computing experience with a reliable memory interface. Designed for enhanced performance, this socket connector ensures optimal communication between your motherboard and memory modules. Its through-hole solder termination method and vertical module orientation guarantee a secure connection, making it a perfect fit for a variety of applications. Built with high-temperature thermoplastic materials, this DIMM socket promises durability and longevity in demanding environments. With its compatibility with double data rate (DDR) technology, this product is the choice for those seeking superior data transfer speeds and increased efficiency. Perfect for both commercial and industrial use, this memory socket exemplifies precision in design and functionality.
Provides a robust connection for memory modules with its board-to-board connector system
Features a vertical module orientation for streamlined installation and space efficiency
Constructed with high-temperature nylon to withstand rigorous operating conditions
Incorporates a natural ejector colour for improved visibility during installation
Complies with various industry standards, ensuring quality and reliability
Optimised for wave soldering, facilitating easier integration into existing production processes
