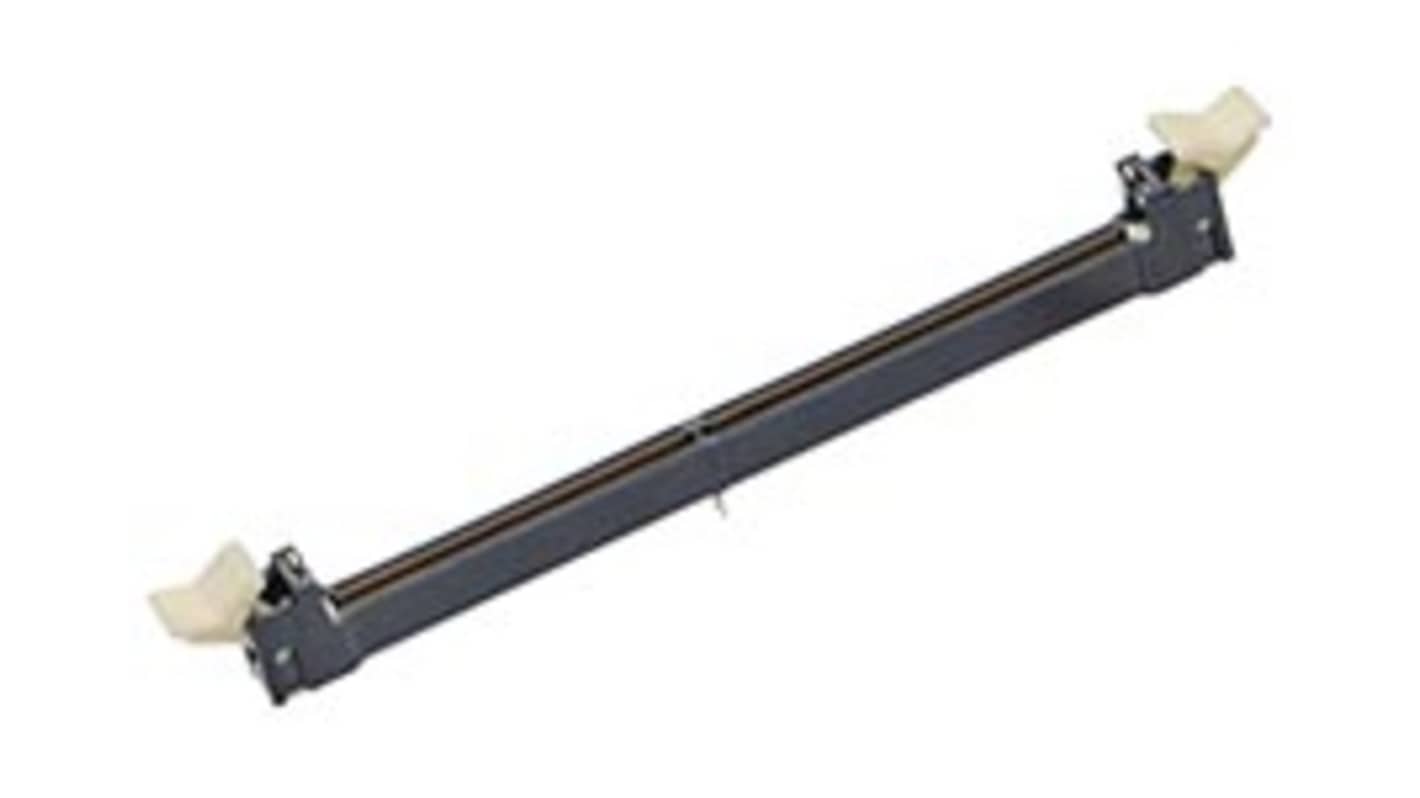

Molex 0.5mm Pitch 288 Way, Vertical SMT Mount DDR4 DIMM Socket ,29 V ac/dc ,750mA
- RS Stock No.:
- 684-718
- Mfr. Part No.:
- 151105-0004
- Brand:
- Molex
Subtotal (1 tray of 6 units)*
£222.13
(exc. VAT)
£266.56
(inc. VAT)
Stock information currently inaccessible
Tray(s) | Per Tray | Per unit* |
---|---|---|
1 + | £222.13 | £37.022 |
*price indicative
- RS Stock No.:
- 684-718
- Mfr. Part No.:
- 151105-0004
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Memory Socket Type | DIMM Socket | |
Gender | Female | |
Body Orientation | Vertical | |
Contact Material | Copper Alloy | |
Contact Plating | Gold | |
Number of Contacts | 288 | |
Pitch | 0.5mm | |
Mounting Type | Surface Mount | |
SDRAM Type | DDR4 | |
Current Rating | 750mA | |
Voltage Rating | 29 V ac/dc | |
Select all | ||
---|---|---|
Brand Molex | ||
Memory Socket Type DIMM Socket | ||
Gender Female | ||
Body Orientation Vertical | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||
Number of Contacts 288 | ||
Pitch 0.5mm | ||
Mounting Type Surface Mount | ||
SDRAM Type DDR4 | ||
Current Rating 750mA | ||
Voltage Rating 29 V ac/dc | ||
- COO (Country of Origin):
- SG
The Molex DDR4 MiniDIMM Socket is meticulously engineered for high-performance memory applications. This component features a 0.50mm pitch design, accommodating 288 circuits in a vertical, surface mount package. Its robust construction incorporates natural (off-white) latches, ensuring secure connectivity without the need for a center fork lock or pick and place cap. Ideal for use in conjunction with JEDEC MO-314 memory modules, this socket guarantees reliable operation across diverse environments. With outstanding durability and a temperature range of -55° to +85°C, it meets the demands of modern computing while streamlining the assembly process for manufacturers.
Features liquid crystal polymer as a housing material, offering superior thermal and chemical resistance
Provides reliable retention capabilities with integrated PCB locators, enhancing assembly precision
Low-halogen compliance affirms its safety in product design and manufacturing
Backed by multiple industry compliance certifications, ensuring consistent reliability meet specific market regulations
Provides reliable retention capabilities with integrated PCB locators, enhancing assembly precision
Low-halogen compliance affirms its safety in product design and manufacturing
Backed by multiple industry compliance certifications, ensuring consistent reliability meet specific market regulations
