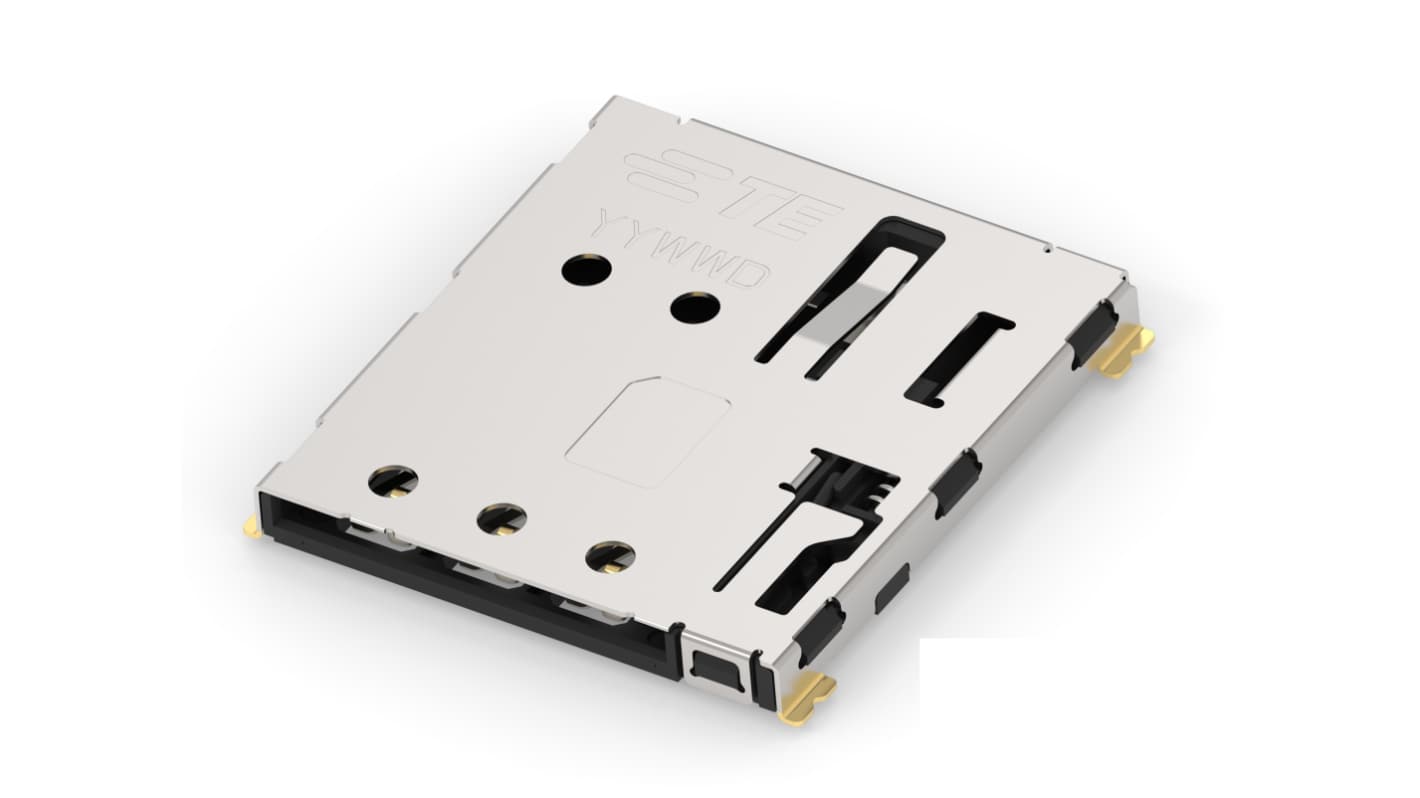

TE Connectivity 7 Way Push-Push Nano SIM Memory Card Connector
- RS Stock No.:
- 299-060
- Mfr. Part No.:
- 2490448-1
- Brand:
- TE Connectivity
Subtotal (1 reel of 3000 units)*
£2,434.72
(exc. VAT)
£2,921.66
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £2,434.72 | £0.812 |
*price indicative
- RS Stock No.:
- 299-060
- Mfr. Part No.:
- 2490448-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Card Type | Nano SIM | |
| Product Type | Memory Card Connector | |
| Gender | Male | |
| Insertion/Removal Method | Push-Push | |
| Number of Contacts | 7 | |
| Mount Type | Board | |
| Contact Material | Copper Alloy | |
| Contact Plating | Stainless Steel | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 75°C | |
| Standards/Approvals | China RoHS 2 MIIT Order No 32, 2016, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Card Type Nano SIM | ||
Product Type Memory Card Connector | ||
Gender Male | ||
Insertion/Removal Method Push-Push | ||
Number of Contacts 7 | ||
Mount Type Board | ||
Contact Material Copper Alloy | ||
Contact Plating Stainless Steel | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 75°C | ||
Standards/Approvals China RoHS 2 MIIT Order No 32, 2016, EU ELV 2000/53/EC, EU REACH (EC) No. 1907/2006, EU RoHS 2011/65/EU | ||
The TE Connectivity Nano SIM card push-push is compliant with the EU RoHS Directive 2011/65/EU and meets the EU ELV Directive 2000/53/EC, though it has not yet been reviewed. It complies with the China RoHS 2 Directive MIIT Order No 32, 2016, with no restricted materials above threshold. The product is also in accordance with the EU REACH Regulation (EC) No. 1907/2006, with the current ECHA Candidate List declared against June 2024, and does not contain REACH SVHC. It is used in many IOT applications such as Smart meter, Vehicle tracker, Fleet telematics, EV charger, 5G router.
Low halogen content
Bromine and chlorine less than 900 ppm per homogeneous material
Gold plating thickness of contact area of 1u
1500 mating cycle
Detection pin with spring contact structure it leads more robust connection
Enhancing entrance structure of card insert (metal frame inside the plastic housing base)
No need to have PCB opening under first row contact pin
