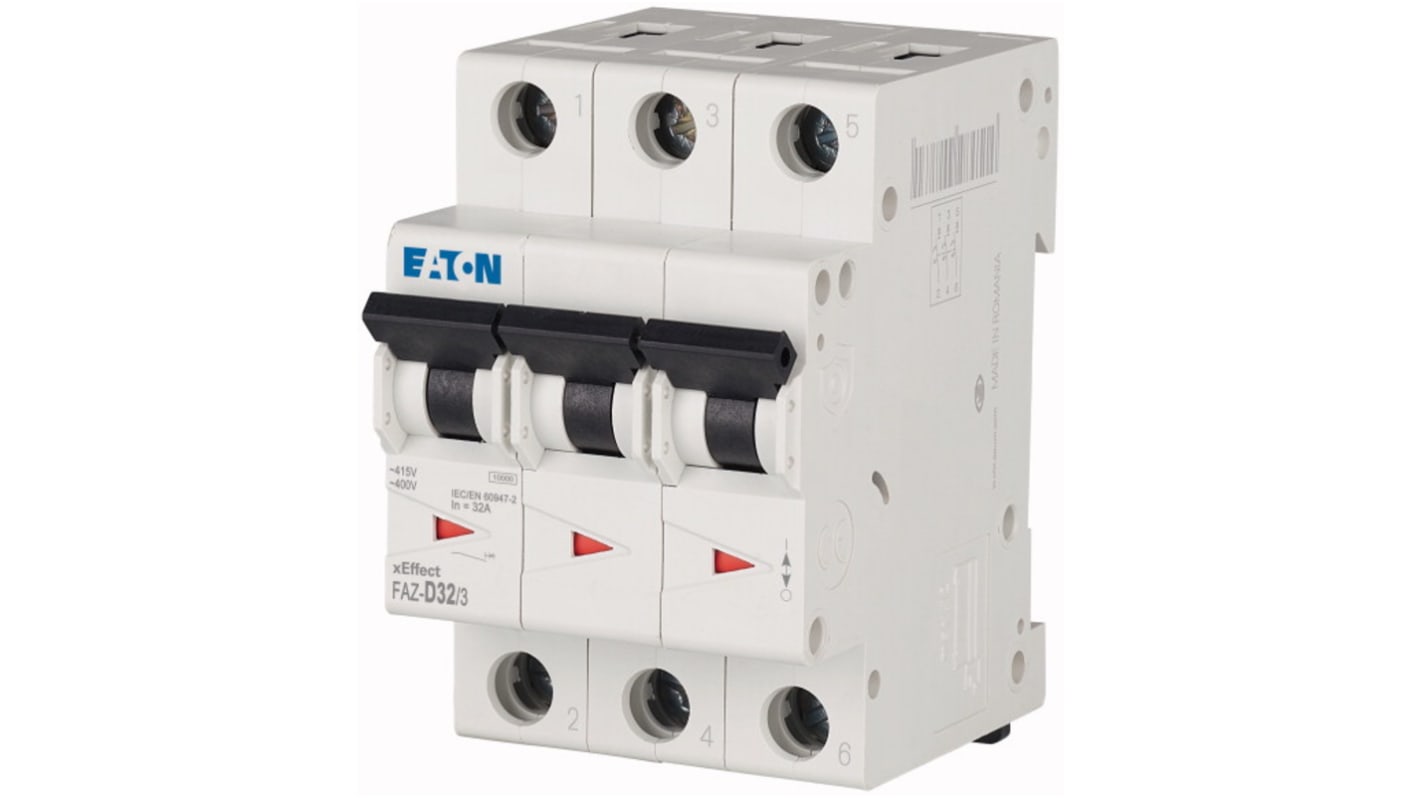

Eaton xEffect MCB, 3P, 32A Curve D, 240 → 415V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 847-3594
- Mfr. Part No.:
- 278899 FAZ-D32/3
- Brand:
- Eaton
Subtotal (1 unit)*
£99.98
(exc. VAT)
£119.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £99.98 |
*price indicative
- RS Stock No.:
- 847-3594
- Mfr. Part No.:
- 278899 FAZ-D32/3
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3 | |
Current Rating | 32A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 240 → 415V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Circuit Breaker Type | MCB | |
Length | 54mm | |
Width | 85mm | |
Mounting Style | DIN Rail Mount | |
Depth | 73mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3 | ||
Current Rating 32A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 240 → 415V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Circuit Breaker Type MCB | ||
Length 54mm | ||
Width 85mm | ||
Mounting Style DIN Rail Mount | ||
Depth 73mm | ||
Eaton FAZ Series Circuit Breakers
The FAZ series by Eaton offers a wide range of quality, highly reliable and safe circuit breakers. Eatons FAZ DIN rail mountable circuit breaker is designed for use in control panel applications.
Features and Benefits
The Eaton miniature circuit breaker has a current limiting design, providing short circuit interruption to reduce let-through energy, which can damage the circuit.
Rated currents up to 63A.
The toggle can be sealed in both the on and off position where required, and the trip-free design means that the breaker cannot be defeated by holding the handle in the on position.
Reliable and safe operation with six levels of thermal-magnetic over-current protection.
Red or green light indicates the contact position.
Easy installation.
Suitable for supplementary protection.
Rated currents up to 63A.
The toggle can be sealed in both the on and off position where required, and the trip-free design means that the breaker cannot be defeated by holding the handle in the on position.
Reliable and safe operation with six levels of thermal-magnetic over-current protection.
Red or green light indicates the contact position.
Easy installation.
Suitable for supplementary protection.
Eaton MCB, 32A Current Rating, 230 to 400V AC Voltage Rating - FAZ Series - 278899 FAZ-D32/3
Protect your industrial electric network from short-circuits and overload faults with this mini circuit breaker from Eaton. It's designed for 3-phase circuits and cuts the power supply to your equipment when a fault occurs. The unit has type D characteristics, which means that its tripping current is 10 to 20 times the full load current of the system. This gives an allowance for equipment that requires an initial surge current to start. A current rating of 32A makes this unit a good fit for high current-consuming applications such as industrial motors and material handling equipment.
• DIN-rail mounting is straightforward and doesn't need specialist tools
• Trip-free design means the breaker can't be reset until the fault is cleared, enhancing electrical safety
• Breaking capacity of 10kA to handle high current surges without damage
• Captive screws remain attached to the breaker so they can't be lost
• Trip-free design means the breaker can't be reset until the fault is cleared, enhancing electrical safety
• Breaking capacity of 10kA to handle high current surges without damage
• Captive screws remain attached to the breaker so they can't be lost
How do I identify the ON and OFF positions on this circuit breaker?
This circuit breaker has red and green colour-coded indicators to show its OFF and ON positions at a glance.
Note
Eaton formerly known as Moeller
