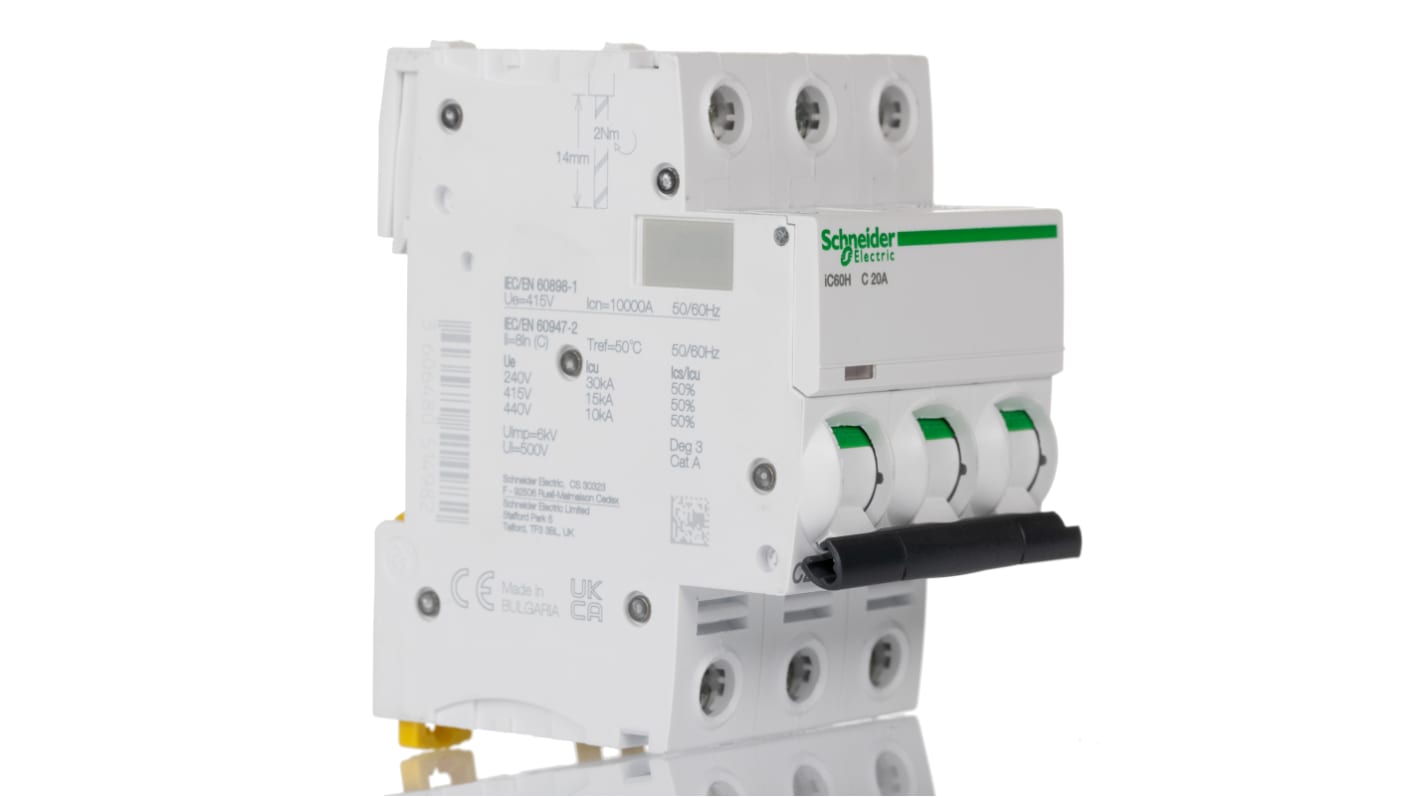

Schneider Electric Acti 9 iC60H MCB, 3P, 20A Curve C, 440V AC, 100 → 133V DC, 10 kA Breaking Capacity

Introducing Schneider Electrics iC60H series of multi-standard circuit breakers which combine circuit protection against short circuit currents and circuit protection against overload currents alongside protecting users against indirect contact with TN and IT neutral systems.

Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that the user's installation is safe and compliant with all relevant safety standards. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts. VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime.

• Downstream circuit is always safe
• Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
• Insulated terminals (IP20)
• Highly durable with robust connections that provide twice the standard tightening torque
• Provide greater continuity of service thanks to VisiTrip
• Double clip for dismounting with comb busbar in place

It protects wires from overloads and short-circuits. For overload protection the temperature of a bimetal, through which the current passes is decisive. If the nominal current—the current the circuit breaker is designed for—rises slightly, the bimetal heats up to a greater extent and, after a certain period of time, this causes the switching mechanism to trip. Today MCBs are installed in all our homes, offices and other buildings, protecting the electrical wires from damage. They have the advantage that they can be manually reset without having to replace wire as in the case of the traditional fuse. The MCBs have either a button or lever that can be flicked to reset it. They are used instead of fuses due to their convenience and improved safety features.

Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

This miniature circuit breaker from Schneider Electric is a reliable and efficient solution for ensuring the safety of electrical circuits. With a current rating of 20A and a breaking capacity of 10kA, this MCB is designed to protect against overloads and short circuits. The thermal-magnetic tripping mechanism and Type C tripping characteristics make it suitable for a wide range of applications.

• Ensures safety by preventing overloads and short circuits
• Easy installation and maintenance
• Type C tripping characteristics for specific overload protection
• 10kA breaking capacity for reliable performance

• Suitable for industrial and commercial electrical installations
• Ideal for use in distribution boards and control panels
• Can be used in residential settings for circuit protection

This MCB is designed to work with both AC and DC circuits, providing versatile protection for various applications.

Yes, the DIN rail mounting style of this MCB enables easy installation on standard DIN rails.

Yes, with a breaking capacity of 10kA and Type C tripping characteristics, this MCB is ideal for industrial use.

Yes, this MCB is reliable for use in control panels to ensure the safety of electrical circuits.

The Rocker switch actuator makes it simple and convenient to reset the MCB after a trip, allowing for quick restoration of power.
