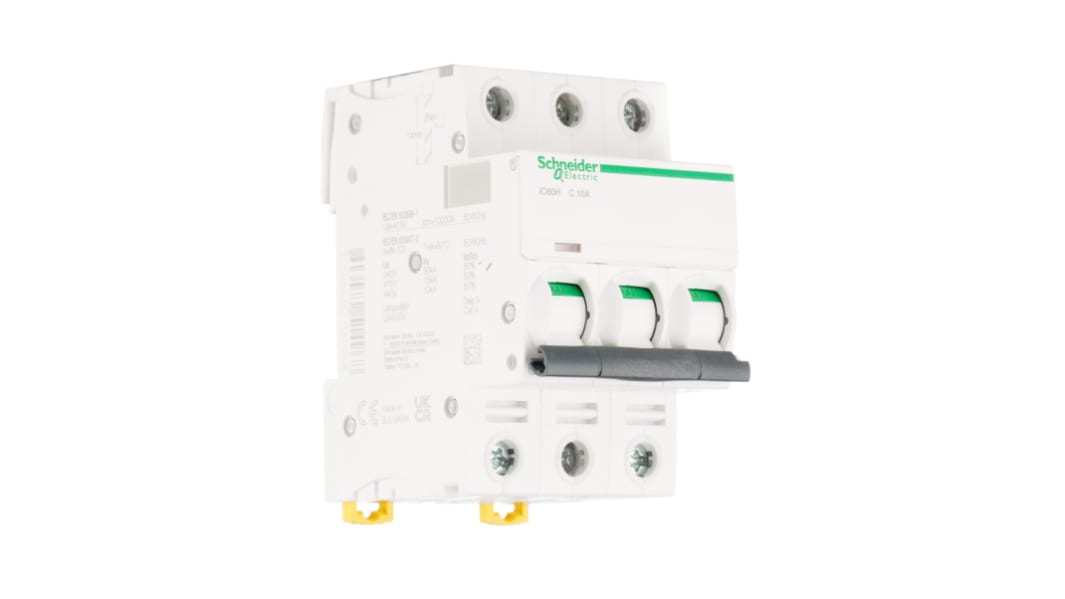

Schneider Electric Acti 9 iC60H MCB, 3P, 10A Curve C, 440V AC, 100 → 133V DC, 10 kA Breaking Capacity

Introducing Schneider Electrics iC60H series of multi-standard circuit breakers which combine circuit protection against short circuit currents and circuit protection against overload currents alongside protecting users against indirect contact with TN and IT neutral systems.

Fully compliant with standards IEC/EN 60898 and IEC/EN 60947-2. ACTi 9 is fully tested, approved and certified by national and international third parties. It guarantees that the user's installation is safe and compliant with all relevant safety standards. These MCBs are normally used for high inductive loads where switching surges are high. Providing essential protection in industrial and commercial buildings, these miniature circuit breakers work especially well in polluted environments and networks.

VisiSafe guarantees the downstream circuit is always safe regardless of overvoltage conditions, even in the most demanding environments; the green strip indicates the safe position of contacts. VisiTrip red window on the front face indicates fault tripping allowing fast diagnosis, resolution, and reclosing loads for easier building management and reduced downtime.

• Downstream circuit is always safe
• Class-2 insulation: ensures continuous protection for both operators and unqualified persons.
• Insulated terminals (IP20)
• Highly durable with robust connections that provide twice the standard tightening torque
• Provide greater continuity of service thanks to VisiTrip
• Double clip for dismounting with comb busbar in place

It protects wires from overloads and short-circuits. For overload protection the temperature of a bimetal, through which the current passes is decisive. If the nominal current—the current the circuit breaker is designed for—rises slightly, the bimetal heats up to a greater extent and, after a certain period of time, this causes the switching mechanism to trip. Today MCBs are installed in all our homes, offices and other buildings, protecting the electrical wires from damage. They have the advantage that they can be manually reset without having to replace wire as in the case of the traditional fuse. The MCBs have either a button or lever that can be flicked to reset it. They are used instead of fuses due to their convenience and improved safety features.

Curve B: Tripping: 3 to 5 times the rated current.
Applications: protection of generators, persons, very long cables
Curve C: Tripping: 5 to 10 times the rated current
Applications: protection of circuits and general applications
Curve D: Tripping: 10 to 14 times the rated current
Applications: protection of high surge circuits, welders, transformers and motors

Looking for a way to improve safety when you're working with electrical equipment? Reach for this MCB from Schneider Electric to protect you and your circuits from high inrush currents. The compact unit handles high-load applications, thanks to a breaking capacity of up to 30kA at 220V AC to 240V AC and 10kA at 415V AC. A fast-closing mechanism works independently of manual operation, improving its service life. This contributes to the MCB's mechanical lifespan of 20,000 cycles, so you can count on it for the long haul.

• IP20-rated and insulated, making terminals safe to handle with minimal risk of shocks
• Compatible with harsh working conditions due to an operating temperature range between -35°C and +70°C
• Protects multiple circuits at once thanks to a three-pole design
• Type-C characteristics means it breaks at 3 to 5 times its rated current of 10A, for safe use with industrial machinery
• VisiSafe feature gives visual confirmation that downstream circuits are safe

• Transformer protection
• Small motor installation
• HVAC equipment

The unit snaps onto a standard DIN rail using a simple clip-on design that makes installation easy.
