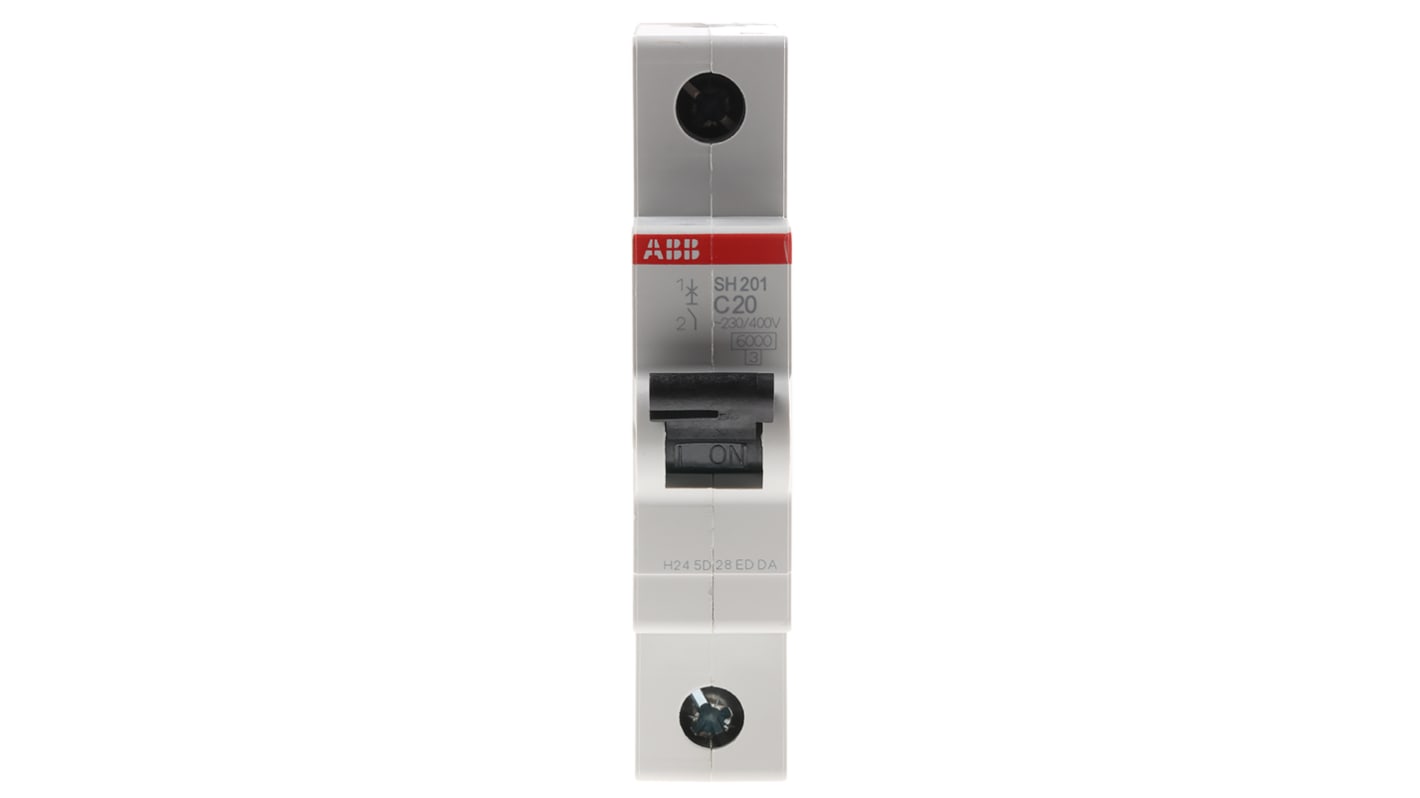

ABB Compact Home SH200 MCB, 1P, 20A Curve C, 440V AC, 60V DC, 6 kA Breaking Capacity
- RS Stock No.:
- 539-8245
- Mfr. Part No.:
- 2CDS211001R0204 SH201-C20
- Brand:
- ABB
Subtotal (1 unit)*
£14.75
(exc. VAT)
£17.70
(inc. VAT)
FREE delivery for orders over £50.00
- 41 unit(s) ready to ship
Units | Per unit |
---|---|
1 + | £14.75 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 539-8245
- Mfr. Part No.:
- 2CDS211001R0204 SH201-C20
- Brand:
- ABB
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 20A | |
Tripping Characteristics | Type C | |
Rated AC Voltage | 440V | |
Rated DC Voltage | 60V | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Range | Compact Home | |
Series | SH200 | |
Circuit Breaker Type | MCB | |
Length | 85mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | SH201-C20 | |
Better World Claim | Designed for disassembly | |
Better World Product | Yes | |
Reset Actuator Type | Toggle Switch | |
Application | Residential | |
Terminal Contact Type | Screw Clamp | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 20A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440V | ||
Rated DC Voltage 60V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range Compact Home | ||
Series SH200 | ||
Circuit Breaker Type MCB | ||
Length 85mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number SH201-C20 | ||
Better World Claim Designed for disassembly | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Application Residential | ||
Terminal Contact Type Screw Clamp | ||
- COO (Country of Origin):
- DE
ABB SH200 Series MCB, 1 Pole, 20A Current Rating - 2CDS211001R0204 SH201-C20
Features & Benefits
• Suitably designed for marine and industrial applications with a rated voltage of 440V
• Finger-proof twin terminal design enhances safety during installation
• Clear contact position indication aids in quick operational checks
• Strong tripping characteristics effectively handle overload and short-circuit conditions
• Suitable for DIN rail mounting, simplifying installation within electrical panels
Applications
• Utilised in machinery and automation control panels
• Provides protection in distribution boards
• Complies with international standards for various
What should be considered during installation to prevent overheating?
How does it manage brief overcurrent situations?
Can it be used in outdoor environments?
How frequently should the device be tested for proper operation?
What type of cables can be used with this circuit breaker?
Standards
