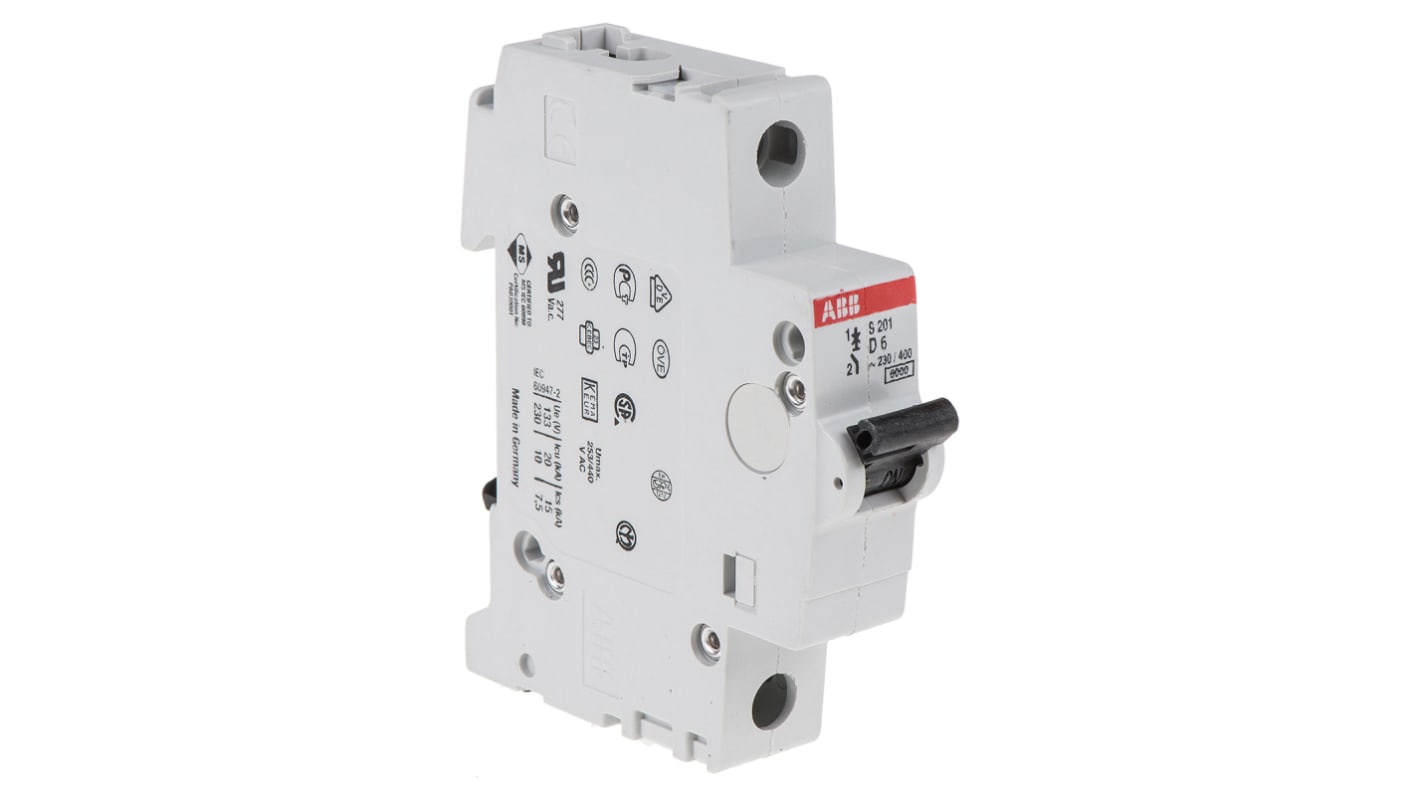

ABB System Pro M Compact System Pro M Compact Miniature Circuit Breaker, 1-Pole, 6A, Type D, 253V ac AC, 72 V dc DC, 6
- RS Stock No.:
- 527-9453
- Mfr. Part No.:
- 2CDS251001R0061 S201-D6
- Brand:
- ABB
Subtotal (1 unit)*
£17.22
(exc. VAT)
£20.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 70 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.22 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 527-9453
- Mfr. Part No.:
- 2CDS251001R0061 S201-D6
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 6A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 253V ac | |
| Rated DC Voltage | 72V dc | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | System Pro M Compact | |
| Series | System Pro M Compact | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20, IP40 | |
| Height | 88mm | |
| Depth | 76mm | |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 | |
| Width | 76mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Reset Actuator Type | Toggle Switch | |
| Tripping Mechanism | Electromechanic, Thermal | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 6A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 253V ac | ||
Rated DC Voltage 72V dc | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range System Pro M Compact | ||
Series System Pro M Compact | ||
Terminal Type Cage Terminal | ||
IP Rating IP20, IP40 | ||
Height 88mm | ||
Depth 76mm | ||
Standards/Approvals IEC/EN 60898-1, IEC/EN 60947-2 | ||
Width 76mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Reset Actuator Type Toggle Switch | ||
Tripping Mechanism Electromechanic, Thermal | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB MCB, DIN Rail Mounting, Type-D Tripping - System Pro M Compact Series - S201-D6
Put the brakes on excess currents with this MCB from ABB. It's built with two tripping mechanisms to give circuits a high level of protection from electrical faults. A thermal trip safeguards against overloads, while an electro-mechanical trip stops short circuits from causing harm. The D-type unit breaks a circuit when currents between 10 and 20 times the 6A full load are detected. This means the device is handy for tackling in-rush currents on circuits with highly inductive loads.
Features & Benefits
• Twin terminals enable the separate feeding of busbars and conductors, so you don't get your wires crossed
• Red and green contact position indicators make it a user-friendly device
Applications
• Motor control
• Industrial automation
• Medical devices
• Assembly lines
What's the advantage of choosing an MCB with screw terminals?
The screw terminals on this MCB mean you can get a reliable wire attachment just by using a Pozidriv number 2 screwdriver. As they're captive terminals, there's no danger of losing your screws. A bi-directional, cylinder-lift design means the unit's safer to install and wiring errors are minimised, so you get a faff-free and dependable connection.
Standards
BS EN 60898
