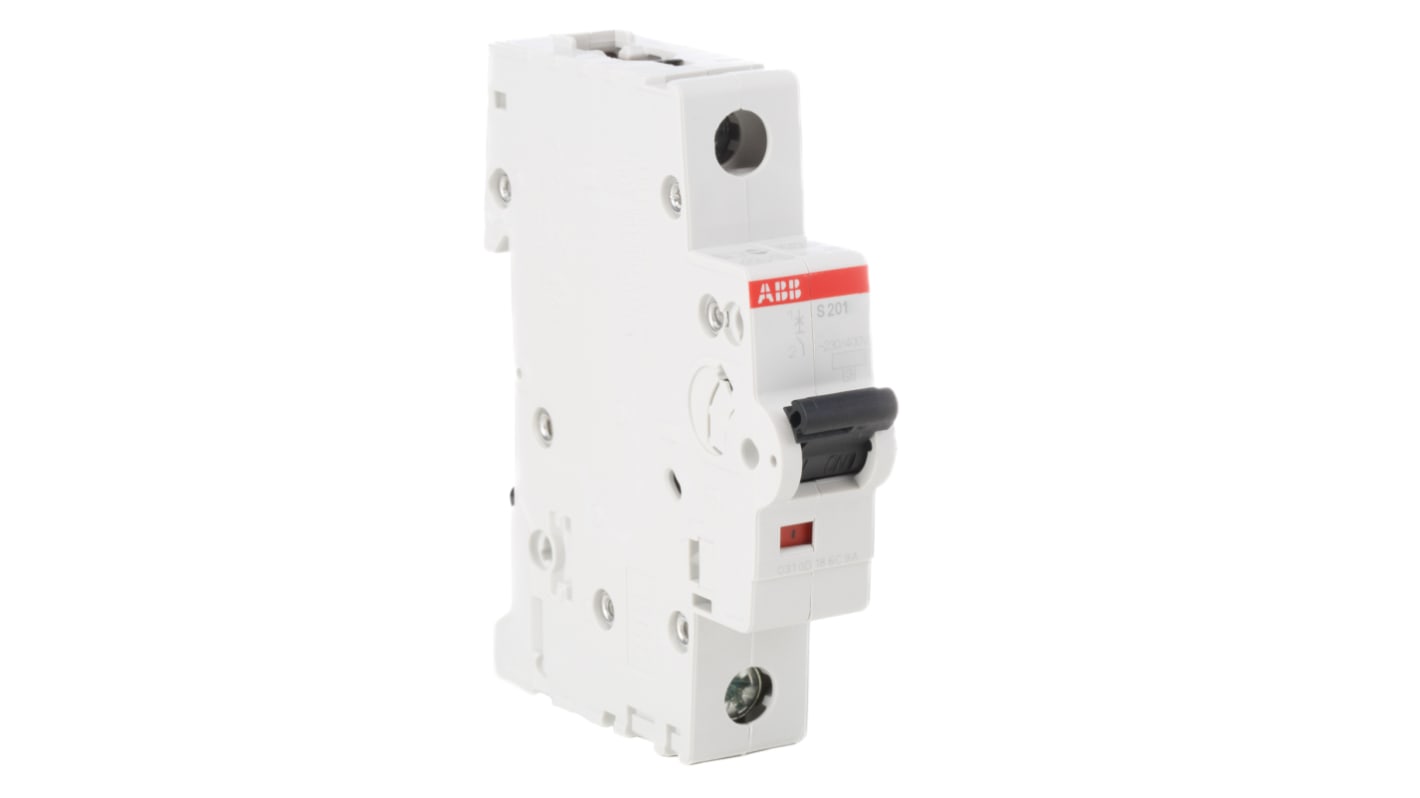

ABB System Pro M Compact S200 MCB, 1P, 6A Curve B, 253V AC, 72V DC, 6 kA Breaking Capacity
- RS Stock No.:
- 488-7457
- Mfr. Part No.:
- 2CDS251001R0065 - S201B6
- Brand:
- ABB
Subtotal (1 unit)*
£16.38
(exc. VAT)
£19.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 106 unit(s) ready to ship
- Plus 115 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £16.38 |
*price indicative
- RS Stock No.:
- 488-7457
- Mfr. Part No.:
- 2CDS251001R0065 - S201B6
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 6A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 253V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Range | System Pro M Compact | |
Series | S200 | |
Circuit Breaker Type | MCB | |
Length | 88mm | |
Width | 17.5mm | |
Mounting Style | DIN Rail Mount | |
Depth | 69mm | |
Model Number | S201-B6 | |
Terminal Contact Type | Screw | |
Tripping Mechanism | Thermal | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 6A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 253V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Circuit Breaker Type MCB | ||
Length 88mm | ||
Width 17.5mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number S201-B6 | ||
Terminal Contact Type Screw | ||
Tripping Mechanism Thermal | ||
ABB MCB, 6A Current Rating, 253V AC / 72V DC Voltage Rating - S200 Series - 2CDS251001R0065 - S201B6
Safeguard your electrical components from short circuits and overcurrents with this MCB from ABB. Its single pole design makes it suitable for single-phase circuits. Thanks to its thermoplastic housing, this unit is resistant to impact and abrasion, so it's a practical choice for harsh environments. It's a B-curve breaker, which means it trips at 3 to 5 times its rated current, making it suitable for handling resistive loads. You can terminate cables to this unit with a simple Pozidriv 2 screwdriver, so creating a connection is straightforward and quick.
Features & Benefits
• Conductor connecting capacity of 18 to 4AWG to accommodate different wire sizes
• Current rating of 6A for energy efficiency and low heat dissipation
• Compatible with both AC and DC circuits, making it a versatile safety tool
• Mechanical endurance of 20,000 operating cycles for long-term performance
• Current rating of 6A for energy efficiency and low heat dissipation
• Compatible with both AC and DC circuits, making it a versatile safety tool
• Mechanical endurance of 20,000 operating cycles for long-term performance
Applications
• Domestic distribution boxes
• Offices and classrooms
• Commercial premises
• Offices and classrooms
• Commercial premises
Is this MCB finger-safe?
Yes, this MCB has an IP40 rating, meaning that it's protected from tools and objects larger than 1mm in size, including your fingers.
ABB System Pro M Single & Double Pole MCB's
Note
The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
