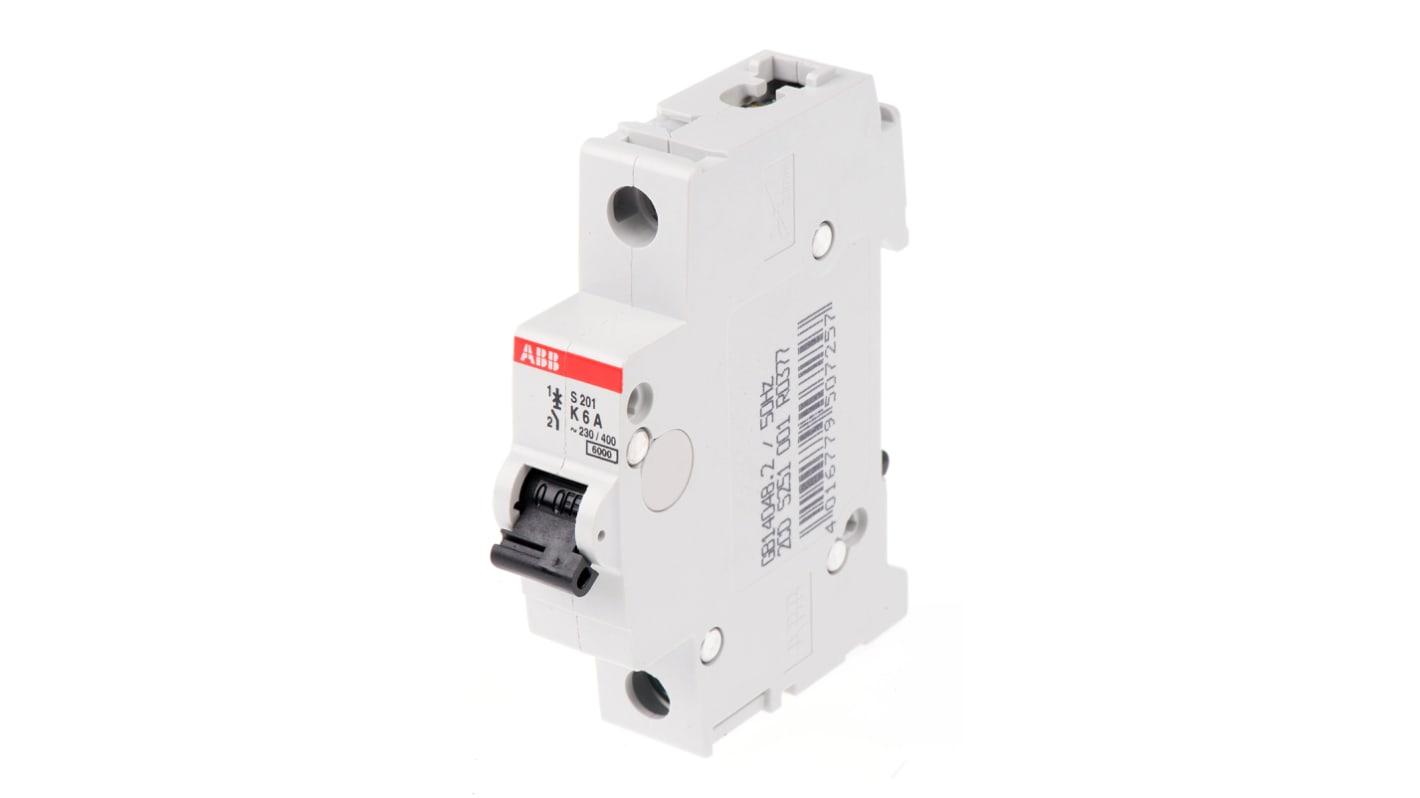

ABB System Pro M Compact System Pro M Compact Miniature Circuit Breaker, 1-Pole, 6A, Type K, 253V ac AC, 72 V dc DC, 6

RS Stock No.:: 514-0125
Mfr. Part No.:: 2CDS251001R0377 S201-K6
Brand:: ABB

ABB System Pro M Compact System Pro M Compact Miniature Circuit Breaker, 1-Pole, 6A, Type K, 253V ac AC, 72 V dc DC, 6

View all MCBs

Subtotal (1 unit)*

£24.68

(exc. VAT)

£29.62

(inc. VAT)

FREE delivery for orders over £60.00

In Stock

Plus 15 unit(s) shipping from 01 June 2026
Plus 9 unit(s) shipping from 01 June 2026
Plus 25 unit(s) shipping from 11 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£24.68

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 514-0125
Mfr. Part No.:: 2CDS251001R0377 S201-K6
Brand:: ABB

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	ABB
	Number of Poles	1
	Product Type	Miniature Circuit Breaker
	Current Rating	6A
	Tripping Characteristics	Type K
	Rated AC Voltage	253V ac
	Rated DC Voltage	72V dc
	Mount Type	DIN Rail
	Breaking Capacity	6kA
	Range	System Pro M Compact
	Series	System Pro M Compact
	Terminal Type	Cage Terminal
	IP Rating	IP20, IP40
	Standards/Approvals	IEC/EN 60947-2, IEC/EN 60898-1
	Width	76mm
	Depth	76mm
	Height	88mm
	Better World Product	Yes
	Better World Claim	Designed for Disassembly
	Tripping Mechanism	Thermal
	Reset Actuator Type	Toggle Switch

	Select all
	Brand ABB
	Number of Poles 1
	Product Type Miniature Circuit Breaker
	Current Rating 6A
	Tripping Characteristics Type K
	Rated AC Voltage 253V ac
	Rated DC Voltage 72V dc
	Mount Type DIN Rail
	Breaking Capacity 6kA
	Range System Pro M Compact
	Series System Pro M Compact
	Terminal Type Cage Terminal
	IP Rating IP20, IP40
	Standards/Approvals IEC/EN 60947-2, IEC/EN 60898-1
	Width 76mm
	Depth 76mm
	Height 88mm
	Better World Product Yes
	Better World Claim Designed for Disassembly
	Tripping Mechanism Thermal
	Reset Actuator Type Toggle Switch

COO (Country of Origin):: DE

ABB Miniature Circuit Breaker, DIN Rail Mount, 2.8 N.m - S201-K6

The is part of the System pro M compact S200 series of miniature circuit breakers. These breakers are designed to be current limiting, ensuring safety in various applications. They incorporate two distinct tripping mechanisms: a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection. Available in different characteristics (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), and rated currents (up to 63A), these MCBs comply with international standards (IEC/EN 60898-1, IEC/EN 60947-2, UL1077). They find use in residential, commercial, and industrial settings. Additionally, the S200 series allows for bottom-fitting auxiliary contacts, saving valuable space

Features & Benefits

• Ensures safe operation by limiting current during faults. This reduces the risk of damage to downstream equipment and prevents electrical hazards

• Delayed thermal tripping mechanism protects against overloads, preventing excessive current flow

• Electromechanic tripping mechanism rapidly disconnects the circuit during short circuits, enhancing safety

• High breaking capacity (Up to 6 kA) allows handling of faulty currents without compromising safety

Applications

• Used in homes for circuit protection

• Suitable for offices, shops, and small businesses

• Deployed in factories, warehouses, and manufacturing facilities

Can I use the ABB S201-K6 in my home circuit?

Yes, the S201-K6 is suitable for residential applications, complying with safety standards.

What is the breaking capacity of this circuit breaker?

The S201-K6 can handle up to 6 kA at 230/400 V AC.

Can I add auxiliary components to this breaker?

Yes, the bottom-fitting auxiliary contact allows you to expand functionality while saving space.

Standards

IEC/EN60947-2
