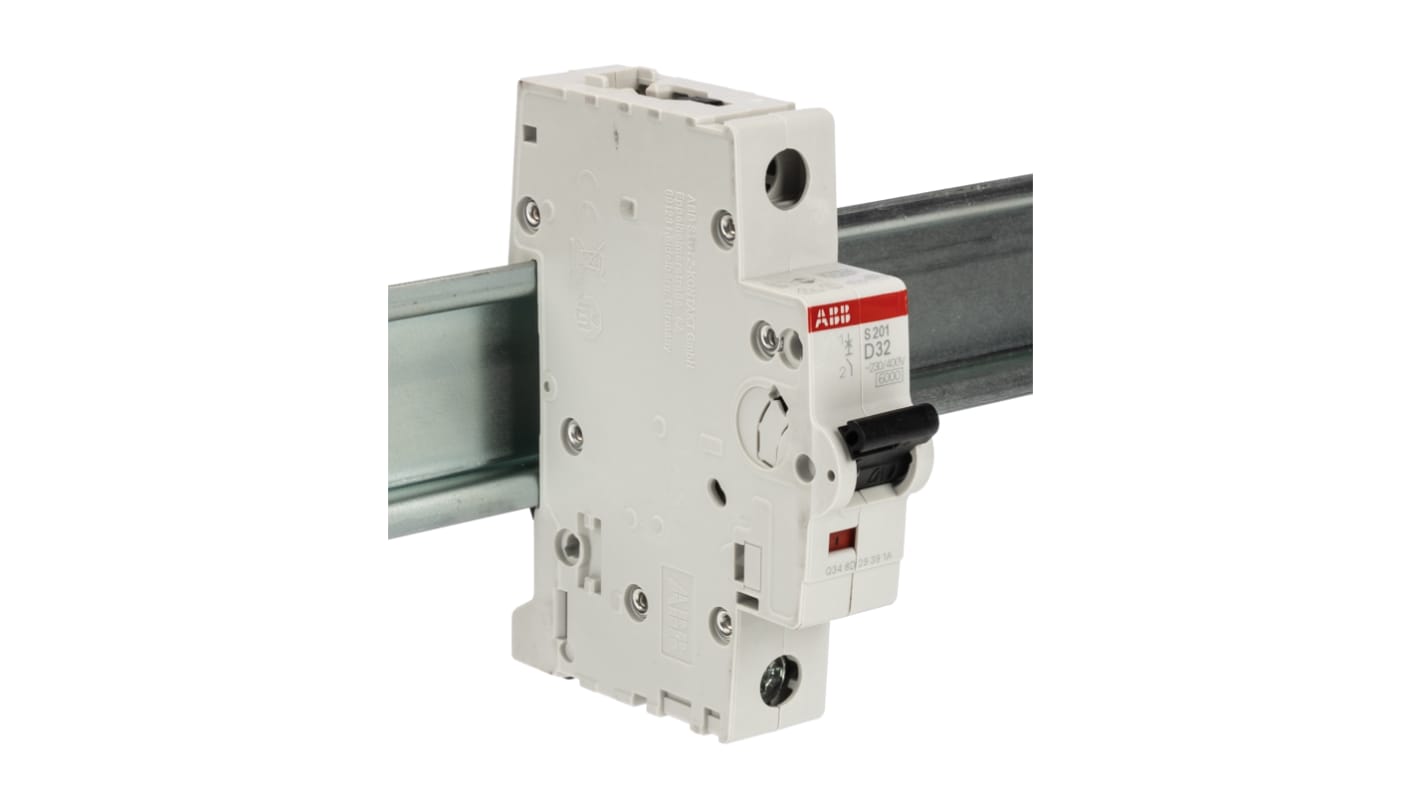

ABB System Pro M Compact S200 MCB, 1P, 32A Curve D, 253V AC, 72V DC, 6 kA Breaking Capacity
- RS Stock No.:
- 527-9504
- Mfr. Part No.:
- 2CDS251001R0321 S201-D32
- Brand:
- ABB
Subtotal (1 unit)*
£17.22
(exc. VAT)
£20.66
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £17.22 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 527-9504
- Mfr. Part No.:
- 2CDS251001R0321 S201-D32
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ABB | |
Number of Poles | 1 | |
Current Rating | 32A | |
Tripping Characteristics | Type D | |
Rated AC Voltage | 253V | |
Rated DC Voltage | 72V | |
Breaking Capacity at Maximum Voltage Rating | 6 kA | |
Range | System Pro M Compact | |
Series | S200 | |
Circuit Breaker Type | MCB | |
Length | 88mm | |
Mounting Style | DIN Rail Mount | |
Depth | 76mm | |
Model Number | S201-D32 | |
Better World Product | Yes | |
Better World Claim | Designed for disassembly | |
Select all | ||
---|---|---|
Brand ABB | ||
Number of Poles 1 | ||
Current Rating 32A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 253V | ||
Rated DC Voltage 72V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range System Pro M Compact | ||
Series S200 | ||
Circuit Breaker Type MCB | ||
Length 88mm | ||
Mounting Style DIN Rail Mount | ||
Depth 76mm | ||
Model Number S201-D32 | ||
Better World Product Yes | ||
Better World Claim Designed for disassembly | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ABB S200 Series MCB, 32A, 6kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS251001R0321 S201-D32
This MCB is engineered to improve electrical safety across a range of applications, offering reliable protection against overloads and short circuits. Featuring a Type D tripping characteristic, it is particularly well-suited for commercial and industrial environments that experience high inrush currents, ensuring reliable circuit protection.
Features & Benefits
• Designed for DIN rail mounting, facilitating easy installation
• Dual tripping mechanism effectively manages overload and short circuit situations
• Rated for 32A current with a breaking capacity of 6kA
• Complies with IEC/EN safety and reliability standards
• Compact design optimises space usage while maintaining effective performance
• Constructed from recyclable materials, promoting environmental sustainability
• Dual tripping mechanism effectively manages overload and short circuit situations
• Rated for 32A current with a breaking capacity of 6kA
• Complies with IEC/EN safety and reliability standards
• Compact design optimises space usage while maintaining effective performance
• Constructed from recyclable materials, promoting environmental sustainability
Applications
• Utilised for circuit protection in commercial installations
• Suitable for industrial settings with significant inrush current requirements
• Applicable in critical systems that demand effective load management
• Ideal for integration with auxiliary contacts to enhance functionality
• Suitable for industrial settings with significant inrush current requirements
• Applicable in critical systems that demand effective load management
• Ideal for integration with auxiliary contacts to enhance functionality
What is the maximum voltage this device can safely handle?
The device can manage a rated AC voltage of 253V and a rated DC voltage of 72V.
How does the tripping mechanism operate during an overload?
It incorporates a delayed thermal mechanism that activates based on the overload current level, ensuring safe disconnection.
Is this device compatible with standard DIN rails?
Yes, it is specifically designed for secure installation on DIN rails.
Can I use this device outdoors?
It is intended for indoor use in dry conditions, as it has an IP20 rating.
What maintenance is necessary for optimal operation?
Regular inspections for secure connections and signs of wear are recommended to ensure continued performance.
Standards
BS EN 60898
ABB System Pro M Single & Double Pole MCB's
Note
The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
