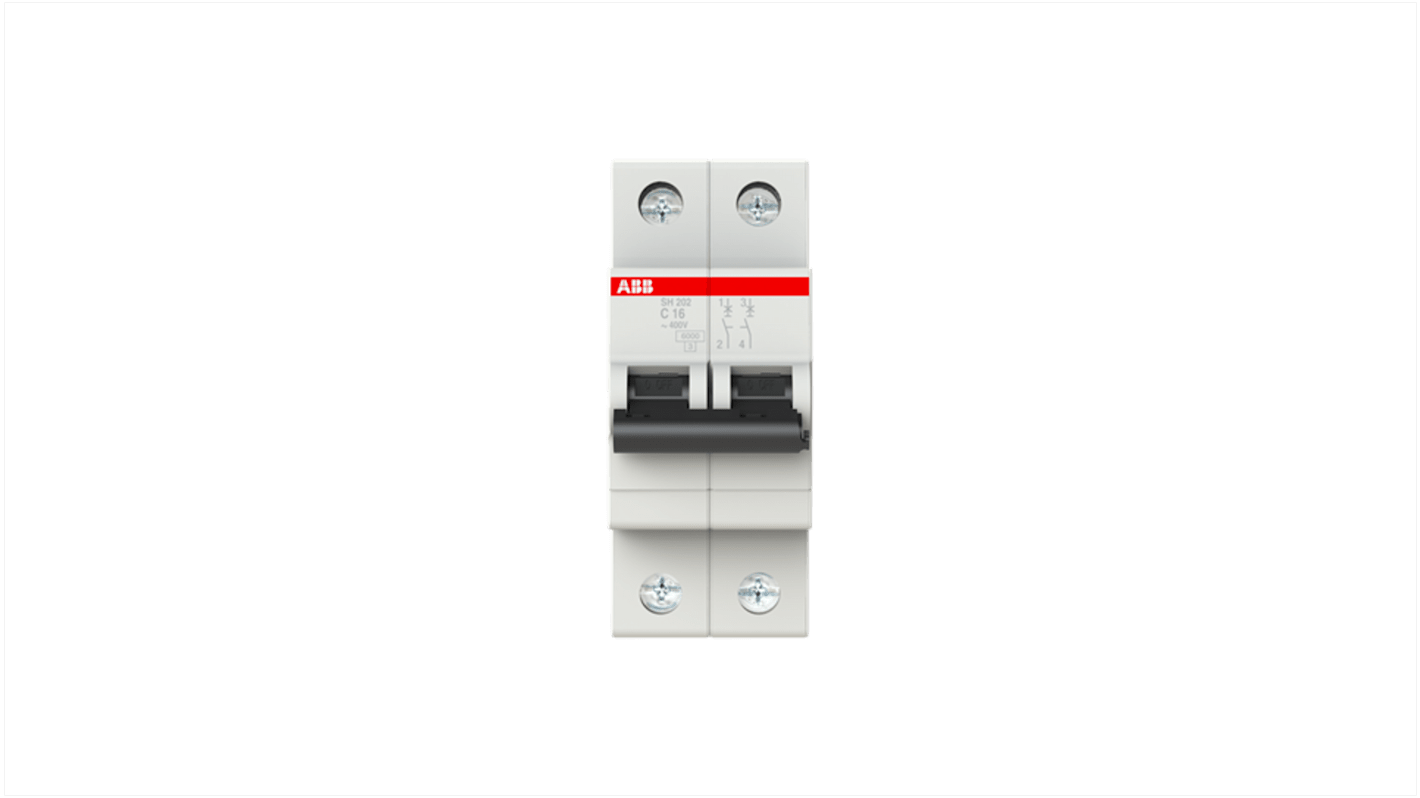

ABB ComPact Home SH200 Miniature Circuit Breaker, 2-Pole, 16A, Type C, 400V ac AC, 400 V dc DC, 6 kA Breaking Capacity
- RS Stock No.:
- 231-9656
- Mfr. Part No.:
- 2CDS212001R0164 SH202-C 16
- Brand:
- ABB
Subtotal (1 box of 1 unit)*
£38.24
(exc. VAT)
£45.89
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 21 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
|---|---|
| 1 + | £38.24 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 231-9656
- Mfr. Part No.:
- 2CDS212001R0164 SH202-C 16
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 2 | |
| Current Rating | 16A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 400V ac | |
| Rated DC Voltage | 400V dc | |
| Mount Type | DIN Rail | |
| Breaking Capacity | 6kA | |
| Range | ComPact Home | |
| Series | SH200 | |
| Terminal Type | Cage Terminal | |
| IP Rating | IP20 | |
| Height | 69mm | |
| Depth | 69mm | |
| Width | 35mm | |
| Standards/Approvals | IEC/EN 60898-1 | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Tripping Mechanism | Thermal | |
| Reset Actuator Type | Toggle Switch | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 2 | ||
Current Rating 16A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 400V ac | ||
Rated DC Voltage 400V dc | ||
Mount Type DIN Rail | ||
Breaking Capacity 6kA | ||
Range ComPact Home | ||
Series SH200 | ||
Terminal Type Cage Terminal | ||
IP Rating IP20 | ||
Height 69mm | ||
Depth 69mm | ||
Width 35mm | ||
Standards/Approvals IEC/EN 60898-1 | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Tripping Mechanism Thermal | ||
Reset Actuator Type Toggle Switch | ||
- COO (Country of Origin):
- DE
ABB SH200 Series MCB, 16A, 2 Poles - 2CDS212001R0164 SH202-C 16
This ABB MCB is a compact home series miniature circuit breaker with 2 poles. Specifically designed to provide reliable protection for electrical circuits, this MCB ensures safe operation and efficient performance. With a current rating of 16A and Type C tripping characteristics, it is ideal for various applications in automation, electronics, and electrical industries.
Features & Benefits
• Easy installation on standard DIN rails for convenience and flexibility
• Suitable for circuits requiring a maximum current of 16A for optimal safety
• Provides protection for two separate circuits, enhancing overall safety and efficiency
• Offers enhanced protection against short circuits and overloads, ensuring reliable performance
Applications
• Ideal for use in residential applications for reliable circuit protection
• Suitable for automation systems requiring efficient and safe electrical protection
Can it be installed in industrial automation systems?
This MCB is suitable for use in industrial automation systems requiring efficient circuit protection.
Will it protect against overloads and short circuits?
Yes, the Type C trip characteristics ensure reliable protection against overloads and short circuits.
