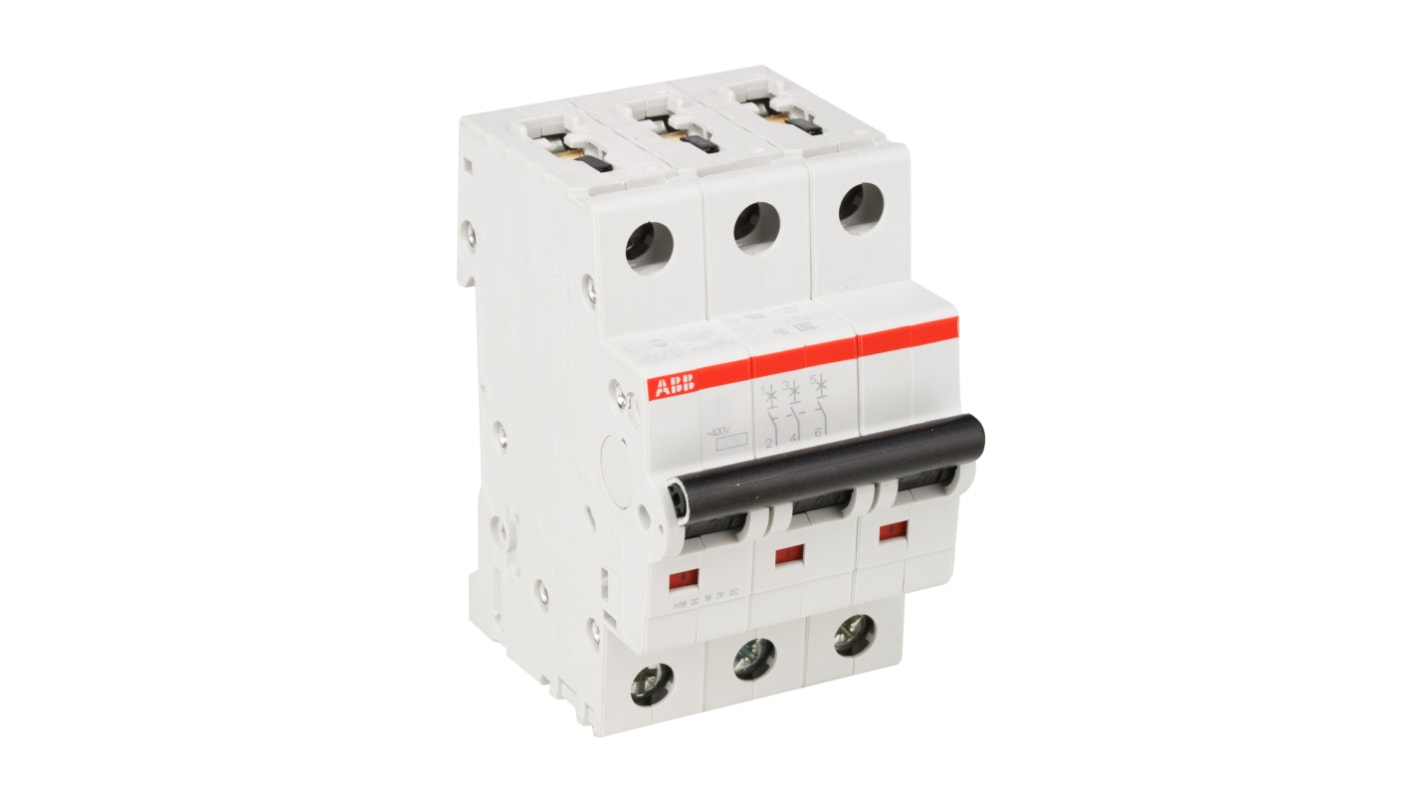

ABB ComPact Home SH200 Miniature Circuit Breaker, 3-Pole, 10A, Type C, 440V ac AC, 440 V dc DC, 6 kA Breaking Capacity
- RS Stock No.:
- 539-8346
- Mfr. Part No.:
- 2CDS213001R0104 SH203-C10
- Brand:
- ABB
Subtotal (1 unit)*
£55.91
(exc. VAT)
£67.09
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £55.91 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 539-8346
- Mfr. Part No.:
- 2CDS213001R0104 SH203-C10
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 10A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440V ac | |
| Rated DC Voltage | 440V dc | |
| Breaking Capacity | 6kA | |
| Mount Type | DIN Rail | |
| Range | ComPact Home | |
| Series | SH200 | |
| IP Rating | IP4X, IP2X | |
| Depth | 69mm | |
| Standards/Approvals | IEC/EN60898, IEC60439-3, BSEN 61009-2-2, IEC61009, IEC/EN61008, IEC 60068-2, IEC/EN60947-2 | |
| Width | 52.5mm | |
| Better World Claim | Designed for Disassembly | |
| Better World Product | Yes | |
| Tripping Mechanism | Magnetic, Electronic, Electromagnetic | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 10A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440V ac | ||
Rated DC Voltage 440V dc | ||
Breaking Capacity 6kA | ||
Mount Type DIN Rail | ||
Range ComPact Home | ||
Series SH200 | ||
IP Rating IP4X, IP2X | ||
Depth 69mm | ||
Standards/Approvals IEC/EN60898, IEC60439-3, BSEN 61009-2-2, IEC61009, IEC/EN61008, IEC 60068-2, IEC/EN60947-2 | ||
Width 52.5mm | ||
Better World Claim Designed for Disassembly | ||
Better World Product Yes | ||
Tripping Mechanism Magnetic, Electronic, Electromagnetic | ||
- COO (Country of Origin):
- DE
ABB MCB, 3 Pole, IP20 Rating - SH200 Series - 2CDS213001R0104
Safeguard your residential electrical installations with this MCB from ABB. It's fitted with both electromagnetic and thermal mechanisms to protect against overloads and short circuits. The type C tripping characteristic means it's designed to break the circuit quickly when currents between 5 and 10 times the 10A rated load are detected. A 6kA breaking capacity makes it suitable for domestic and low-voltage commercial and industrial circuits. Built with a compact width of 52.5mm, this device is easy to fit onto consumer units and small enclosures. A toggle with on and off indicators makes it simple to use.
Features & Benefits
• Lifespan of 20,000 mechanical and 10,000 electrical operations for durability
• Fastening clip with a spring helps to prevent accidental disconnection from the DIN rail
• Mountable in any position for installation flexibility
• Wide operating temperature range between -25°C and +55°C makes it suitable for use in demanding environments
Applications
• Residential buildings
• Light industry
• Offices
• Fluorescent lighting systems
What type of terminals does this MCB have?
This MCB has screw-cage terminals, so you can be sure of secure wire connections. As it has wide terminals, it accepts cable sizes up to 35mm².
Standards
BS EN 60898
