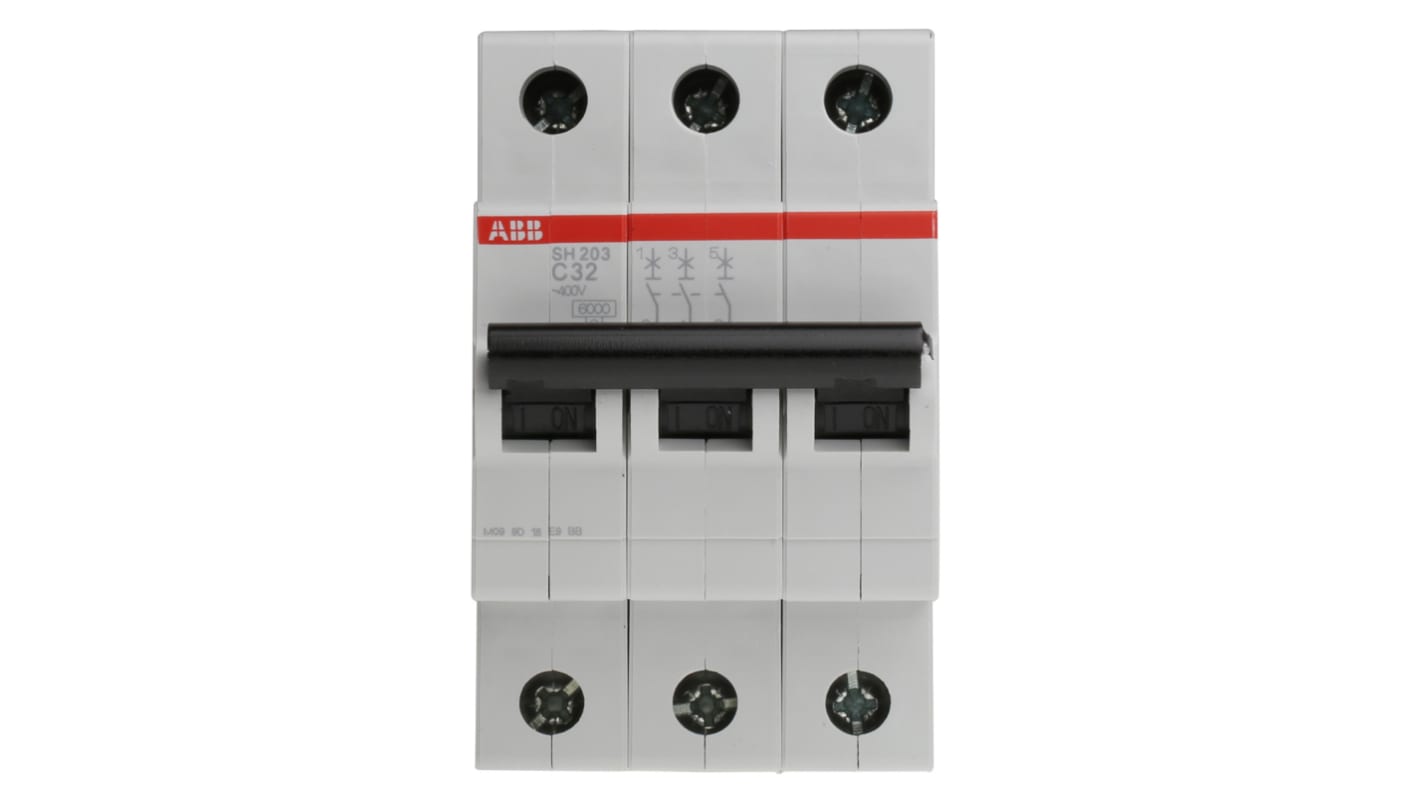

ABB Compact Home SH200 MCB, 3P, 32A Curve C, 440V AC, 6 kA Breaking Capacity
- RS Stock No.:
- 539-8374
- Mfr. Part No.:
- 2CDS213001R0324 SH203-C32
- Brand:
- ABB
Subtotal (1 unit)*
£55.91
(exc. VAT)
£67.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 26 unit(s) shipping from 27 October 2025
- Plus 10 unit(s) shipping from 27 October 2025
- Plus 13 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £55.91 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 539-8374
- Mfr. Part No.:
- 2CDS213001R0324 SH203-C32
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Current Rating | 32A | |
| Tripping Characteristics | Type C | |
| Rated AC Voltage | 440V | |
| Breaking Capacity at Maximum Voltage Rating | 6 kA | |
| Range | Compact Home | |
| Series | SH200 | |
| Circuit Breaker Type | MCB | |
| Width | 52.5mm | |
| Length | 85mm | |
| Mounting Style | DIN Rail Mount | |
| Depth | 69mm | |
| Model Number | SH203-C32 | |
| Better World Claim | Designed for disassembly | |
| Better World Product | Yes | |
Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Current Rating 32A | ||
Tripping Characteristics Type C | ||
Rated AC Voltage 440V | ||
Breaking Capacity at Maximum Voltage Rating 6 kA | ||
Range Compact Home | ||
Series SH200 | ||
Circuit Breaker Type MCB | ||
Width 52.5mm | ||
Length 85mm | ||
Mounting Style DIN Rail Mount | ||
Depth 69mm | ||
Model Number SH203-C32 | ||
Better World Claim Designed for disassembly | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE
ABB MCB, 32A Rated Current, IP40 Rating in Enclosure with Cover - SH200 Series - 2CDS213001R0324
Use this MCB from ABB to increase the safety of your electrical system. It uses thermal and electromechanical means to protect circuits and equipment from overloads and short circuits. The type C tripping characteristic means it activates when loads between 5 and 10 times its rated current of 32A are detected. This makes it suitable for use with high inductive loads and where switching surges are likely. Compact dimensions of 52.5 (W) x 69 (L) x 85mm (H) make this an ideal choice for installation in setups where space is limited.
Features & Benefits
• Toggle features on and off indicators for ease of use
• Rear plastic clip for secure mounting on a DIN rail
• Wide operating temperature range between -25°C and +55°C for use in demanding conditions
• Cage-screw terminals to achieve a secure wire connection
• Rear plastic clip for secure mounting on a DIN rail
• Wide operating temperature range between -25°C and +55°C for use in demanding conditions
• Cage-screw terminals to achieve a secure wire connection
Applications
• Domestic installations
• Retail units
• Distribution centres
• Retail units
• Distribution centres
What's the breaking capacity of this MCB?
The MCB has a breaking capacity of 6kA at 230/440V AC. This makes it suitable for use in residential applications and low-voltage commercial and industrial circuits.
Standards
BS EN 60898
