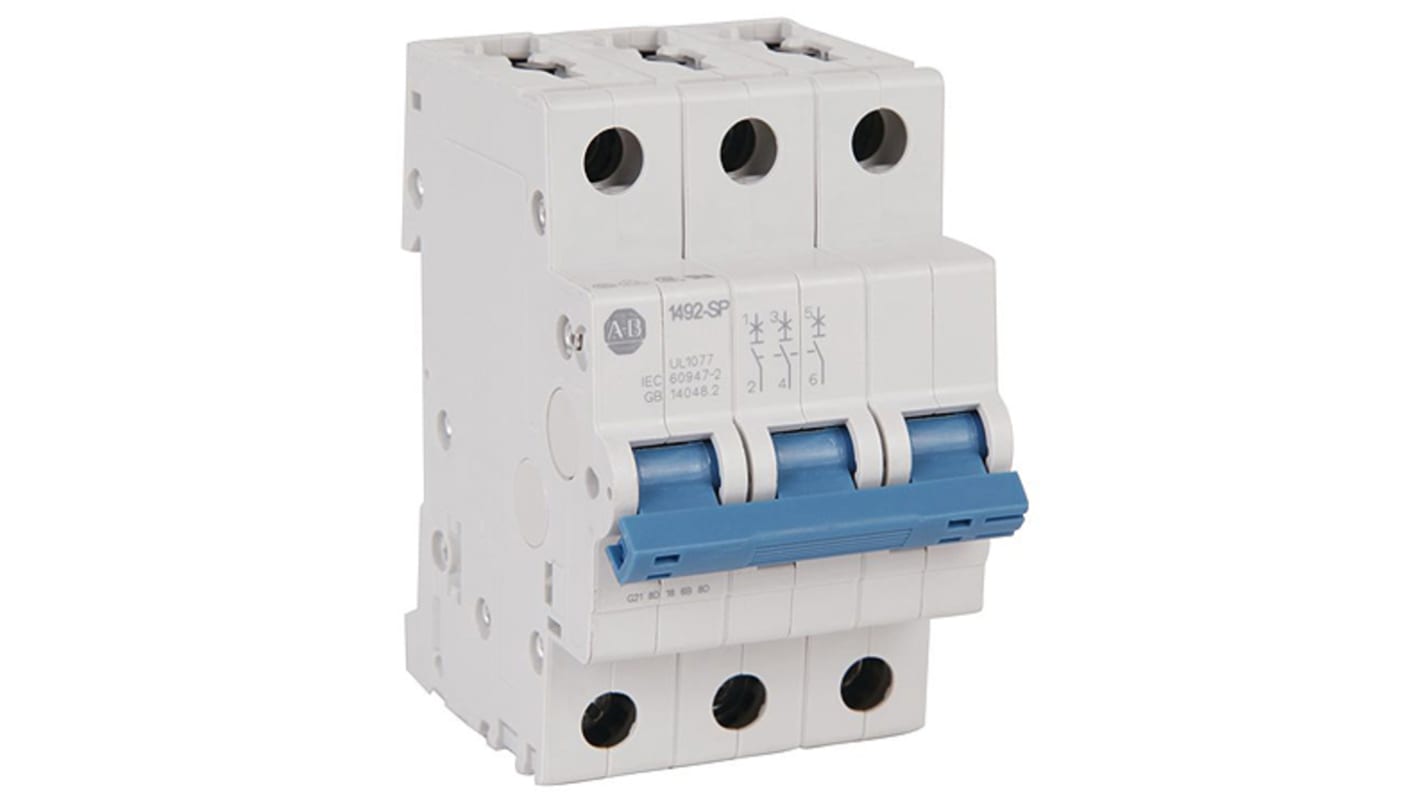

Allen Bradley 1492 1492-SPM MCB, 3P, 25A Curve B, 277V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 125-1447
- Mfr. Part No.:
- 1492-SPM3B250
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£63.44
(exc. VAT)
£76.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £63.44 |
*price indicative
- RS Stock No.:
- 125-1447
- Mfr. Part No.:
- 1492-SPM3B250
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 3 | |
Current Rating | 25A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 277 V, 480V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | 1492 | |
Series | 1492-SPM | |
Circuit Breaker Type | MCB | |
Length | 53mm | |
Width | 75mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Break Time | Instantaneous | |
Tripping Mechanism | Thermal-Magnetic | |
Application | General Purpose | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 3 | ||
Current Rating 25A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 277 V, 480V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range 1492 | ||
Series 1492-SPM | ||
Circuit Breaker Type MCB | ||
Length 53mm | ||
Width 75mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Break Time Instantaneous | ||
Tripping Mechanism Thermal-Magnetic | ||
Application General Purpose | ||
- COO (Country of Origin):
- DE
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B
The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.
The 1492-SPM series of MCBs are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCBs can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.
A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCBs are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.
Features and Benefits:
• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley Miniature Circuit Breaker, Type B, 25A Current Rating - 1492-SPM3B250
Use this miniature circuit breaker from Rockwell Automation's Allen Bradley range to protect your electrical equipment from short circuits. A thermal-magnetic mechanism trips the current off when the switch reaches its 10kA (kiloamps) breaking capacity, protecting both connected equipment and personnel. It's a type B breaker, which means it trips between three and five times the rated current. This makes it ideal for resistive, non-inductive loads where surge levels are low. You can be sure of minimal maintenance and a long service life as the device has a mechanical endurance of 20,000 operations.
Features & Benefits
• DIN rail mounting makes installation and maintenance easier
• IP20 (ingress protection) rating indicates the device is touch-proof, for enhanced user safety
• Screw terminals ensure secure electrical connections
• Indicator window shows red when closed and green when open to make status identification quick and simple
• IP20 (ingress protection) rating indicates the device is touch-proof, for enhanced user safety
• Screw terminals ensure secure electrical connections
• Indicator window shows red when closed and green when open to make status identification quick and simple
Standards and Certifications
• CE (Conformitè Europëenne)
• VDE (Verband der Elektrotechnik)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• VDE (Verband der Elektrotechnik)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
Can this miniature circuit breaker withstand extreme temperatures?
Yes. It has an ambient temperature rating of -25°C to +55°C, and a storage temperature rating of -40°C to +70°C.
