- RS Stock No.:
- 125-1446
- Mfr. Part No.:
- 1492-SPM3B200
- Brand:
- Allen Bradley
Available to back order for despatch 11/06/2024
Added
Price Each
£57.68
(exc. VAT)
£69.22
(inc. VAT)
Units | Per unit |
1 + | £57.68 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 125-1446
- Mfr. Part No.:
- 1492-SPM3B200
- Brand:
- Allen Bradley
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

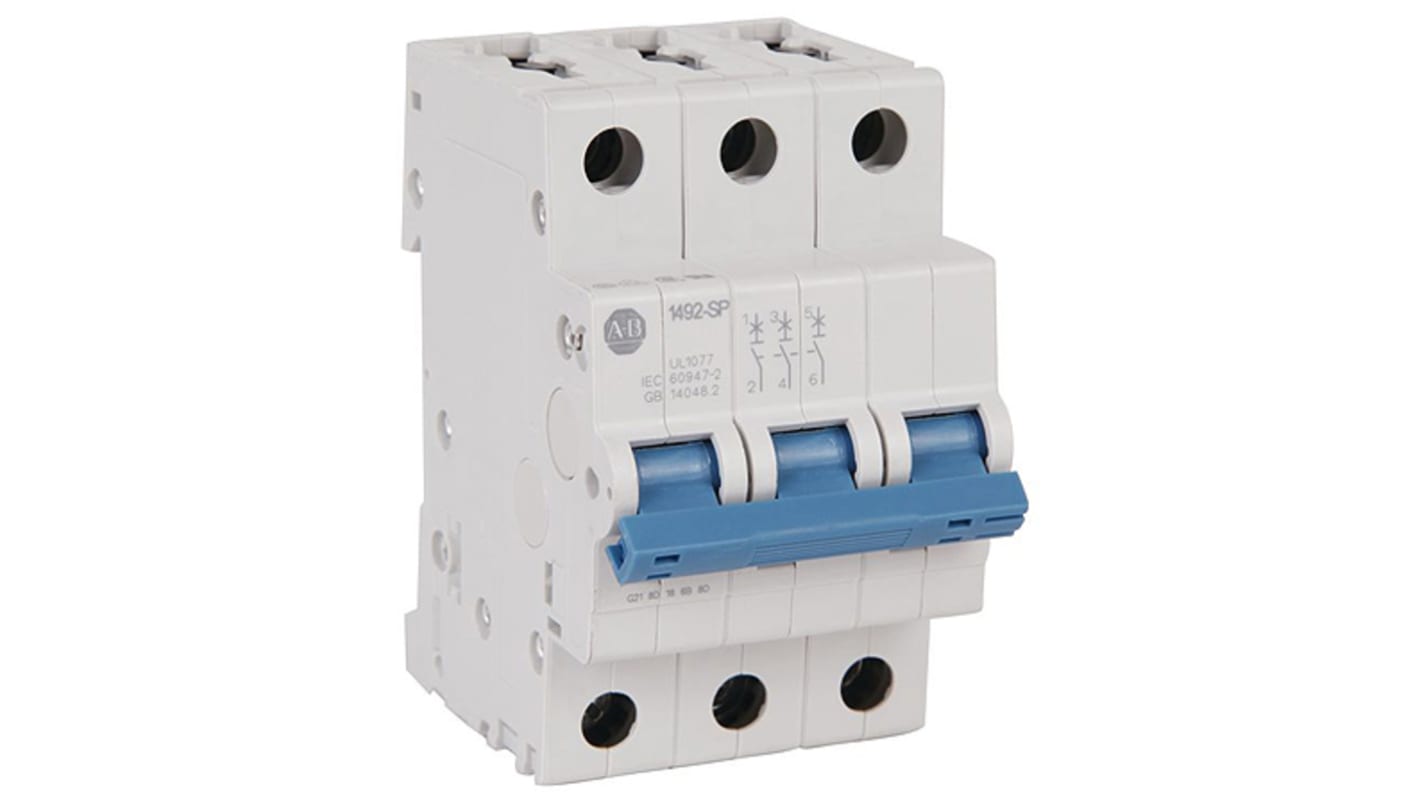

Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B
The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.
The 1492-SPM series of MCBs are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCBs can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.
A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCBs are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.
Features and Benefits:
• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley MCBs
Specifications
Attribute | Value |
---|---|
Number of Poles | 3P |
Current Rating | 20A |
Tripping Characteristics | Type B |
Rated AC Voltage | 277 V, 480V |
Breaking Capacity at Maximum Voltage Rating | 10 kA |
Range | 1492 |
Series | 1492-SPM |
Circuit Breaker Type | MCB |
Width | 75mm |
Length | 53mm |
Mounting Style | DIN Rail Mount |
Depth | 88mm |
Break Time | Instantaneous |
Reset Actuator Type | Toggle Switch |
Application | General Purpose |
Tripping Mechanism | Thermal-Magnetic |
Terminal Contact Type | Screw |
