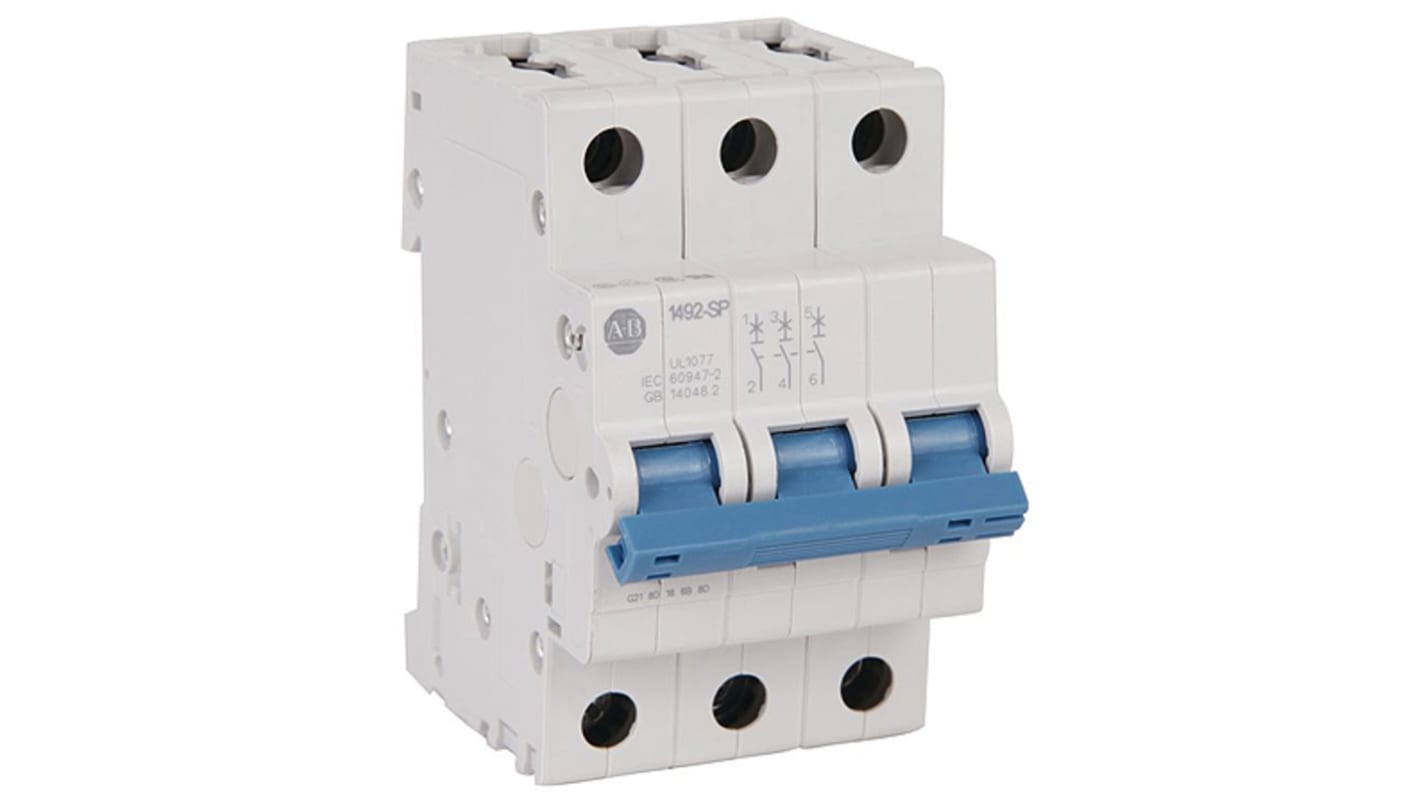

Allen Bradley 1492 1492-SPM MCB, 3P, 1A Curve B, 277V AC, 10 kA Breaking Capacity
- RS Stock No.:
- 125-1438
- Mfr. Part No.:
- 1492-SPM3B010
- Brand:
- Allen Bradley
Subtotal (1 unit)*
£61.80
(exc. VAT)
£74.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £61.80 |
*price indicative
- RS Stock No.:
- 125-1438
- Mfr. Part No.:
- 1492-SPM3B010
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Allen Bradley | |
Number of Poles | 3 | |
Current Rating | 1A | |
Tripping Characteristics | Type B | |
Rated AC Voltage | 277 V, 480V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | 1492 | |
Series | 1492-SPM | |
Circuit Breaker Type | MCB | |
Width | 75mm | |
Length | 53mm | |
Mounting Style | DIN Rail Mount | |
Depth | 88mm | |
Break Time | Instantaneous | |
Terminal Contact Type | Screw | |
Reset Actuator Type | Toggle Switch | |
Application | General Purpose | |
Tripping Mechanism | Thermal-Magnetic | |
Select all | ||
---|---|---|
Brand Allen Bradley | ||
Number of Poles 3 | ||
Current Rating 1A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 277 V, 480V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range 1492 | ||
Series 1492-SPM | ||
Circuit Breaker Type MCB | ||
Width 75mm | ||
Length 53mm | ||
Mounting Style DIN Rail Mount | ||
Depth 88mm | ||
Break Time Instantaneous | ||
Terminal Contact Type Screw | ||
Reset Actuator Type Toggle Switch | ||
Application General Purpose | ||
Tripping Mechanism Thermal-Magnetic | ||
- COO (Country of Origin):
- DE
Allen Bradley 1492 SP Series Miniature Circuit Breakers – Type B
The 1492-SPM Type B general purpose Miniature Circuit Breakers by Allen Bradley offer excellent protection for electrical circuits. With this series 1, 2, and 3 Pole units are available so that you can find the perfect MCB to suit your application.
The 1492-SPM series of MCBs are current limiting and have an instantaneous break time. These models have Type B Tripping characteristics. They are IP20 finger-safe and they also have dual terminals for wiring and bus bar flexibility. Installation is simple as these MCBs can be DIN rail mounted, and up to six accessories can be fixed on the same circuit breaker to provide a complete electrical safety system. The 1492-SPM series of circuit breakers reduces downtime from nuisance tripping due to their enhanced shock and vibration resistance.
A Type B miniature circuit breaker will trip instantly at a rate of three to five times its rated current. These MCBs are often used for small inductive loads where switching surges are very low. They are frequently used in residential or light commercial applications.
Features and Benefits:
• Easy and fast installation via DIN rail mounting
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
• Instantaneous break time
• Available in 1, 2 or 3 pole versions
• Thermal-magnetic tripping mechanism
• Clear visibility of contact state due to indicator window: red for closed, green for open
• Environmentally friendly - RohS compliant and fully recyclable
• Screw Terminals
• Can function in extreme ambient conditions due to 40 ˚C (104 °F) calibration temperature
Certifications:
UL Recognised
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
CSA Certified
CE Marked
CCC Certified
VDE Certified
RoHS Compliant
Standards:
UL 1077
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
CSA C22.2 No. 235
EN 60947-2
GB 14048.2
Allen Bradley MCB, Type B Tripping, 3 Poles - 1492-SPM3B010
Need a fast-acting circuit breaker? Try this MCB from Rockwell Automation's Allen Bradley range. It reacts instantly to overvoltage, so it helps to prevent electrical faults from causing damage to your equipment. An electromechanical lifespan of up to 6,000 operations means you can rely on it for a long service life. For ease of use, you can mount the unit in any position to best suit your needs. As it's resistant to shock and vibration, it reduces the chance of nuisance tripping and downtime. This component is suitable to use in lighting systems and other applications with low inductive loads.
• Wide operating temperature range between -30°C and +70°C for compatibility with demanding settings
• Robust nylon housing resists corrosion for longevity in moist conditions
• IP20-rated enclosure, so it's protected against objects larger than 12mm, including fingers
• Snaps onto a DIN rail for quick and uncomplicated installation and removal
• Robust nylon housing resists corrosion for longevity in moist conditions
• IP20-rated enclosure, so it's protected against objects larger than 12mm, including fingers
• Snaps onto a DIN rail for quick and uncomplicated installation and removal
Standards and Certifications
• UL 1077
• CSA C22.2 No. 235
• EN 60947-2
• GB 14048.2
• UL Recognised
• CSA, CCC and VDE Certified
• CE Marked
• CSA C22.2 No. 235
• EN 60947-2
• GB 14048.2
• UL Recognised
• CSA, CCC and VDE Certified
• CE Marked
How big is this MCB?
This miniature circuit breaker has compact dimensions of 53 (L) x 75 (W) x 88mm (D), so it helps you to achieve maximum packing efficiency on your circuit board.
