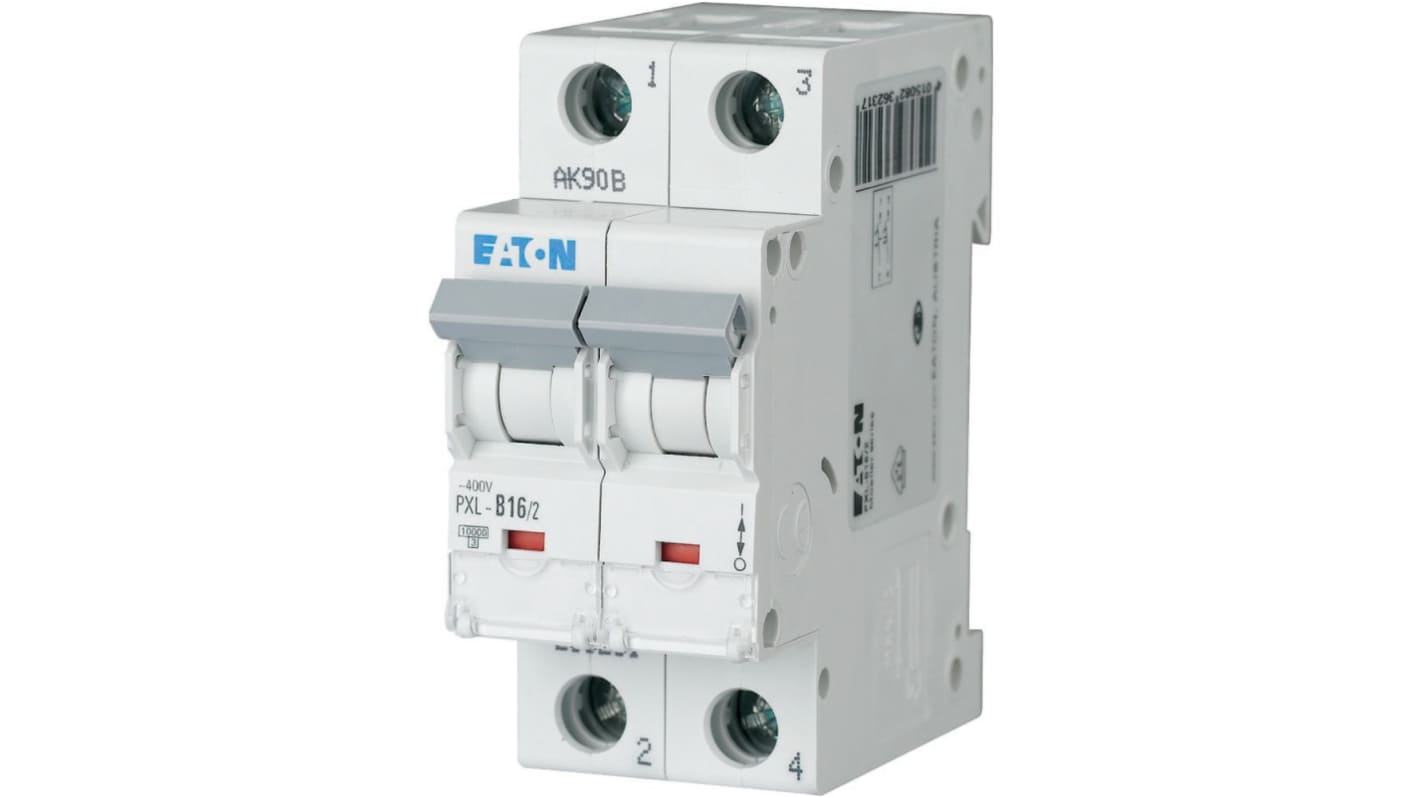

Eaton xPole PXL Miniature Circuit Breaker, 2-Pole, 16 A, Type B, 400 V ac AC, 48 V dc DC, 10 kA Breaking Capacity

RS Stock No.:: 490-359
Mfr. Part No.:: 236231 PXL-B16/2
Brand:: Eaton

Eaton xPole PXL Miniature Circuit Breaker, 2-Pole, 16 A, Type B, 400 V ac AC, 48 V dc DC, 10 kA Breaking Capacity

Subtotal (1 unit)*

£32.46

(exc. VAT)

£38.95

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£32.46

*price indicative

RS Stock No.:: 490-359
Mfr. Part No.:: 236231 PXL-B16/2
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	2
	Product Type	Miniature Circuit Breaker
	Current Rating	16 A
	Tripping Characteristics	Type B
	Rated AC Voltage	400 V ac
	Rated DC Voltage	48 V dc
	Breaking Capacity	10kA
	Mount Type	DIN Rail
	Range	xPole
	Series	PXL
	IP Rating	IP20
	Standards/Approvals	EN 60898, IEC
	Depth	60mm
	Height	35mm
	Width	80 mm
	Break Time	Instantaneous
	Reset Actuator Type	Toggle Switch
	Tripping Mechanism	Electromagnetic

	Select all
	Brand Eaton
	Number of Poles 2
	Product Type Miniature Circuit Breaker
	Current Rating 16 A
	Tripping Characteristics Type B
	Rated AC Voltage 400 V ac
	Rated DC Voltage 48 V dc
	Breaking Capacity 10kA
	Mount Type DIN Rail
	Range xPole
	Series PXL
	IP Rating IP20
	Standards/Approvals EN 60898, IEC
	Depth 60mm
	Height 35mm
	Width 80 mm
	Break Time Instantaneous
	Reset Actuator Type Toggle Switch
	Tripping Mechanism Electromagnetic

RoHS Status: Exempt

COO (Country of Origin):: AT

Eaton MCB, 16A Current Rating, 2 Pole Type - 236231 PXL-B16/2

This product is a miniature circuit breaker designed for electrical circuit protection. It has dimensions of 80mm in length, 35mm in width, and a height of 75mm. Featuring a robust design, this device is suitable for both residential and commercial applications, offering important safety features.

Features & Benefits

• 16A rated current allows for reliable circuit protection

• Type B MCB ensures suitability for residential use

• 10 kA breaking capacity effectively handles short circuits

• Compact 35mm width supports space-saving installations

• DIN rail mounting simplifies installation in electrical panels

• Rated operational voltage of 400V provides versatile applications

Applications

• Used for residential and commercial switchgear solutions

• Ideal for protecting electrical installations in various environments

• Compatible with Eaton's xPole product line for enhanced integration

What characteristics make it suitable for domestic applications?

The Type B characteristic provides reliable tripping for low overloads typical in domestic settings, ensuring safety without nuisance tripping.

How does the breaking capacity impact its performance?

A breaking capacity of 10 kA means it can interrupt substantial fault currents, effectively protecting circuits from damage during electrical faults.

What are the implications of its temperature ratings?

With an ambient temperature range of -25°C to 55°C, it maintains performance across varied environments, ensuring protection even in extreme conditions.

What electrical connections does it support?

It accommodates both multi-wired and solid-core conductors, with a cross-section range from 1mm² to 25mm², ensuring versatility in installations.

Why is DIN rail mounting beneficial?

DIN rail mounting allows for quick and secure installation in panels, facilitating easy access for maintenance and reducing installation time.

Note

Eaton formerly known as Moeller
