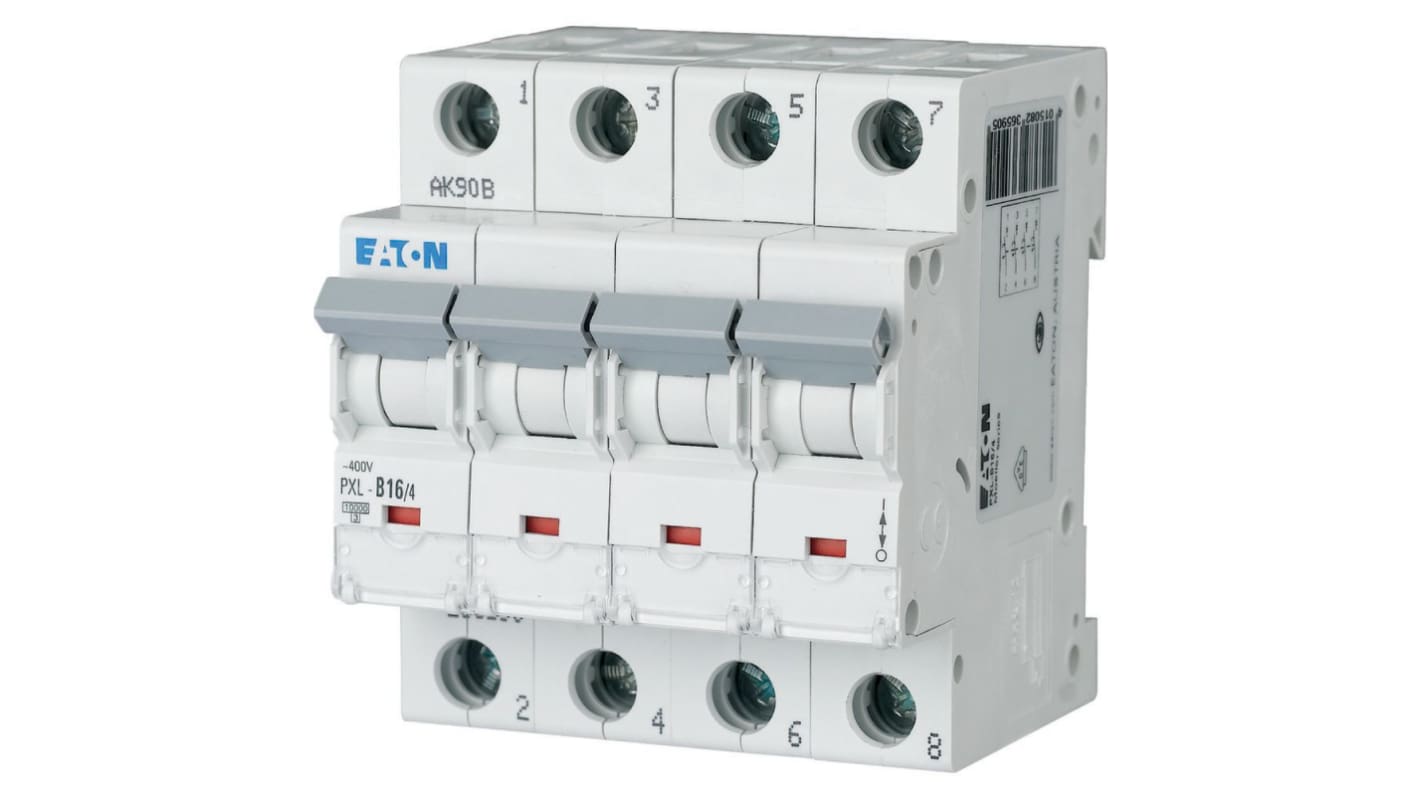

Eaton xPole - PXL PXL Miniature Circuit Breaker, 4-Pole, 16 A, Type B, 400 V ac AC, 10 kA Breaking Capacity
- RS Stock No.:
- 255-751
- Mfr. Part No.:
- 236590 PXL-B16/4
- Brand:
- Eaton
Subtotal (1 unit)*
£89.65
(exc. VAT)
£107.58
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.65 |
*price indicative
- RS Stock No.:
- 255-751
- Mfr. Part No.:
- 236590 PXL-B16/4
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Poles | 4 | |
| Product Type | Miniature Circuit Breaker | |
| Current Rating | 16 A | |
| Tripping Characteristics | Type B | |
| Rated AC Voltage | 400 V ac | |
| Breaking Capacity | 10kA | |
| Range | xPole - PXL | |
| Series | PXL | |
| IP Rating | IP20 | |
| Height | 75mm | |
| Width | 70 mm | |
| Depth | 80mm | |
| Standards/Approvals | EAN, EN 60898-1:2019, EN 63000:2018, RoHS | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Poles 4 | ||
Product Type Miniature Circuit Breaker | ||
Current Rating 16 A | ||
Tripping Characteristics Type B | ||
Rated AC Voltage 400 V ac | ||
Breaking Capacity 10kA | ||
Range xPole - PXL | ||
Series PXL | ||
IP Rating IP20 | ||
Height 75mm | ||
Width 70 mm | ||
Depth 80mm | ||
Standards/Approvals EAN, EN 60898-1:2019, EN 63000:2018, RoHS | ||
- COO (Country of Origin):
- AT
The Eaton miniature circuit breaker (MCB) combines reliability and efficiency in a compact design, specifically tailored for residential and commercial applications. Engineered with cutting-edge technology, it features a robust four-pole design that enhances circuit protection without compromising on performance. With a tripping characteristic of B, this device is optimised for applications where a quick response to overload is crucial. Its rated current of 16 A ensures compatibility with various electrical installations while maintaining a high-rated switching capacity of 10 kA. This MCB has been rigorously tested to meet global safety standards, providing peace of mind for users who demand both quality and efficiency in their electrical components.
Designed for easy installation in diverse settings
Enhances safety with a reliable tripping mechanism
Compact dimensions allow for space-saving installation
Engineered for superior thermal stability under operational conditions
Meets stringent environmental standards for compliance
User-friendly interfaces support quick identification of functionality
