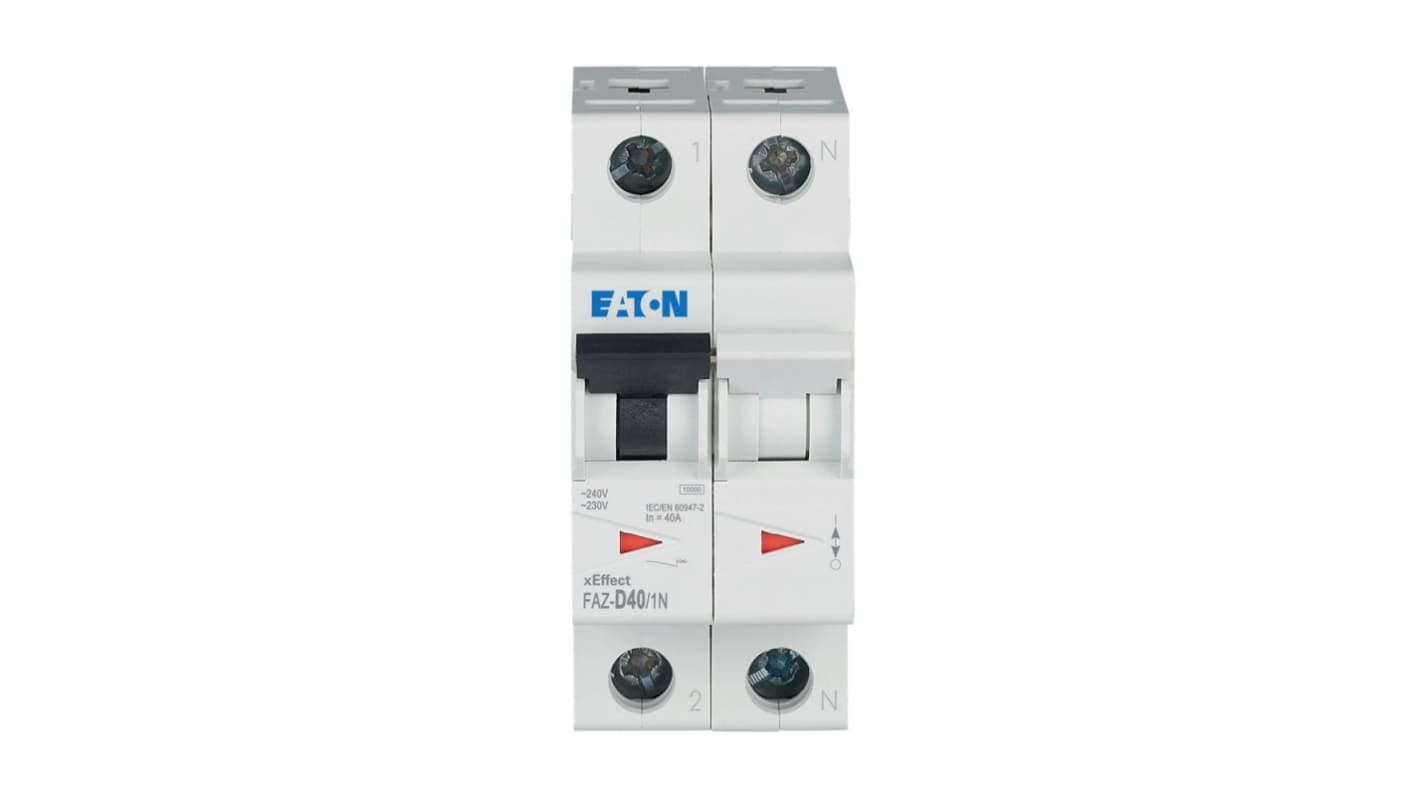

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 40 A, Type D, 230 V ac AC, 15 kA Breaking Capacity
- RS Stock No.:
- 258-342
- Mfr. Part No.:
- 278701 FAZ-D40/1N
- Brand:
- Eaton
Subtotal (1 unit)*
£66.86
(exc. VAT)
£80.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.86 |
*price indicative
- RS Stock No.:
- 258-342
- Mfr. Part No.:
- 278701 FAZ-D40/1N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 40 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 230 V ac | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 15kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Standards/Approvals | CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | |
| Depth | 80mm | |
| Height | 75.5mm | |
| Width | 36 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 40 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 230 V ac | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 15kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Standards/Approvals CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | ||
Depth 80mm | ||
Height 75.5mm | ||
Width 36 mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series embodies innovation and reliability in electrical protection. Designed for industrial and commercial applications, it is engineered to effectively safeguard your circuits from overcurrents and short circuits. The MCB offers a superior rated switching capacity of 15 kA, ensuring effective disruption of harmful excess currents. It is easy to install and features a compact profile, making it suitable for various settings.
Compact design for effortless installation in limited spaces
Meets RoHS compliance standards for environmental safety
Equipped with a high short circuit breaking capacity for added protection
Engineered for reliable performance in challenging conditions
Integral mechanism for temperature rise management
Offers dual protection against overcurrent and short circuit hazards
