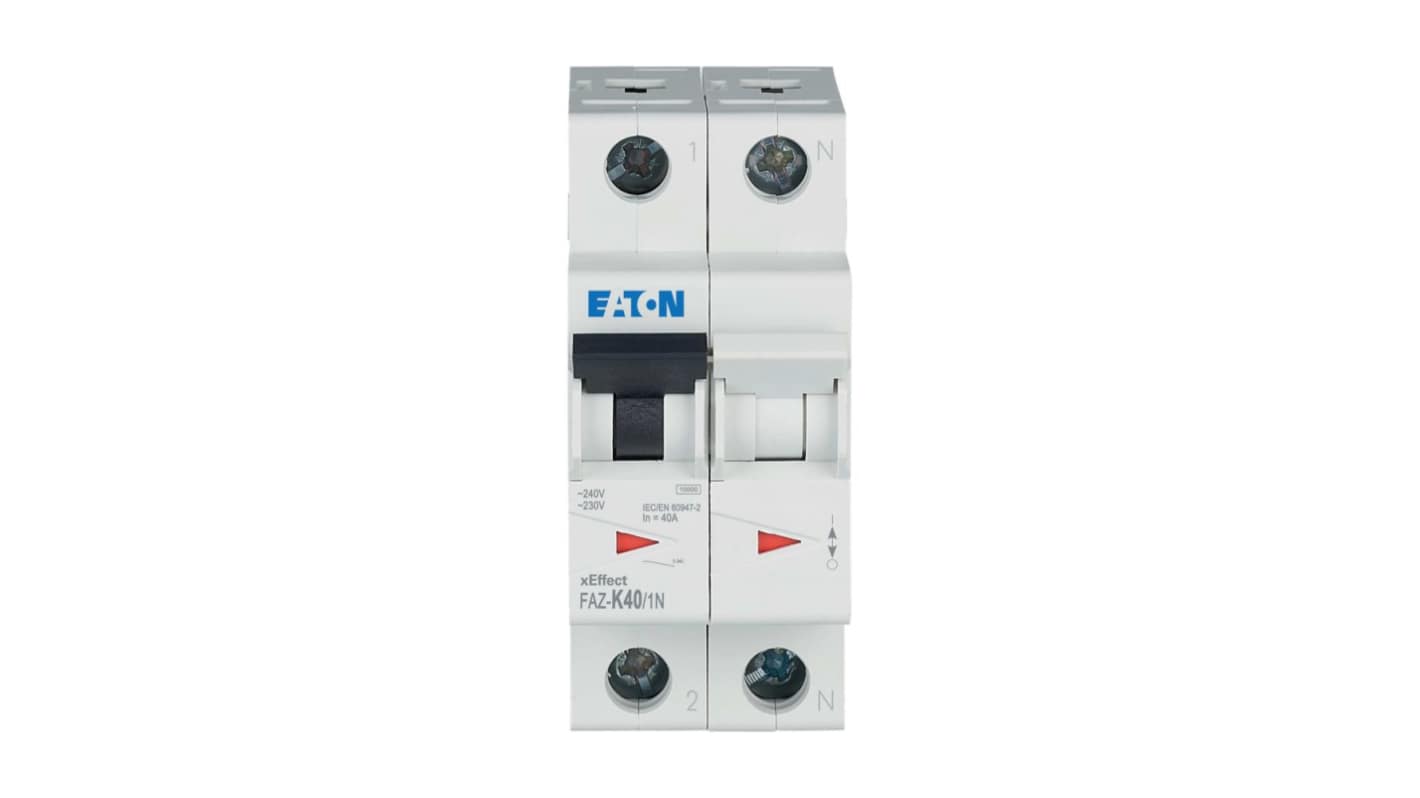

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 40 A, Type K, 230 V ac AC, 15 kA Breaking Capacity
- RS Stock No.:
- 259-739
- Mfr. Part No.:
- 278716 FAZ-K40/1N
- Brand:
- Eaton
Subtotal (1 unit)*
£102.43
(exc. VAT)
£122.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £102.43 |
*price indicative
- RS Stock No.:
- 259-739
- Mfr. Part No.:
- 278716 FAZ-K40/1N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 40 A | |
| Tripping Characteristics | Type K | |
| Rated AC Voltage | 230 V ac | |
| Breaking Capacity | 15kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Standards/Approvals | CE, CSA, EN45545, IEC 617, IECEN 60898, IECEN 60947, RoHS, UL | |
| Depth | 80mm | |
| Height | 75.5mm | |
| Width | 36 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 40 A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 230 V ac | ||
Breaking Capacity 15kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Standards/Approvals CE, CSA, EN45545, IEC 617, IECEN 60898, IECEN 60947, RoHS, UL | ||
Depth 80mm | ||
Height 75.5mm | ||
Width 36 mm | ||
- COO (Country of Origin):
- RO
The Eaton miniature circuit breaker stands out in The Eaton Moeller series xEffect, designed to deliver reliable protection in complex electrical systems. Its advanced functionality makes it an ideal choice for both industrial and commercial applications, ensuring safety without compromise. Compact yet powerful, it excels at managing electrical loads with a 40 A capacity. The circuit breaker is engineered with a K characteristic tripping curve, safeguarding against overloads and short circuits while seamlessly integrating into switchgear setups. Its robust design meets diverse compliance standards, making it suitable for various environmental conditions. This versatile breaker not only reduces risk but also enhances operational efficiency, reaffirming Eaton’s commitment to quality and innovation in electrical distribution solutions.
Compact structure ensures ease of installation within limited spaces
Designed for both single pole and neutral switching accommodating versatile setups
Effective thermal dissipation promotes longevity and reliability under operational stresses
High rated short circuit breaking capacity enhances protection for connected circuits
Achieves compliance with international standards guaranteeing safety and performance
Features dual frequency rating capabilities making it adaptable for varying electrical needs
Corrosion resistant materials ensure durability in diverse environmental conditions
Designed for energy efficiency contributing to lower operational costs
