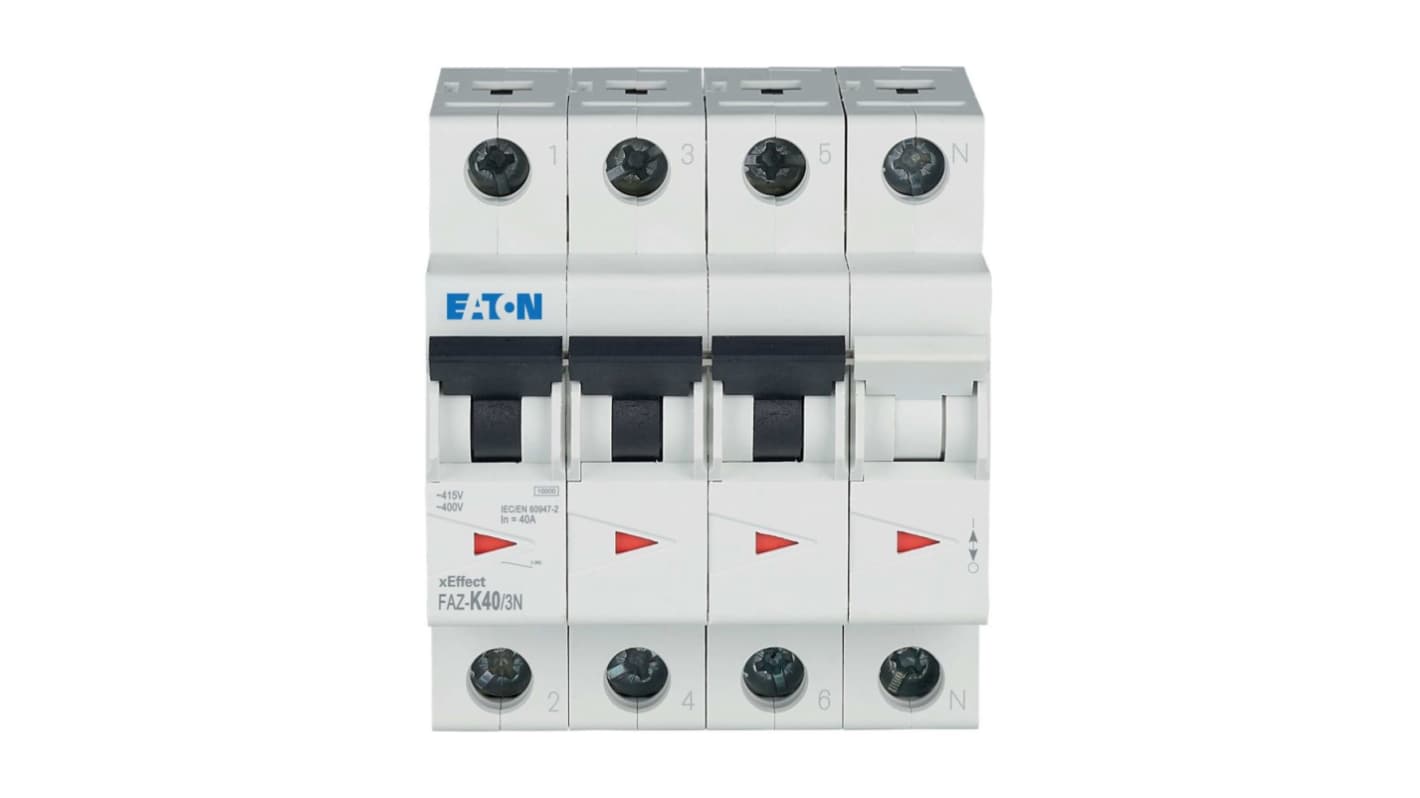

Eaton xEffect FAZ MCB, 3+N, 40A Curve K, 400V AC, 60V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 258-865
- Mfr. Part No.:
- 279017 FAZ-K40/3N
- Brand:
- Eaton
Subtotal (1 unit)*
£224.49
(exc. VAT)
£269.39
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £224.49 |
*price indicative
- RS Stock No.:
- 258-865
- Mfr. Part No.:
- 279017 FAZ-K40/3N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3+N | |
Current Rating | 40A | |
Tripping Characteristics | Type K | |
Rated AC Voltage | 400V | |
Rated DC Voltage | 60V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Series | FAZ | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3+N | ||
Current Rating 40A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 400V | ||
Rated DC Voltage 60V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Series FAZ | ||
- COO (Country of Origin):
- RO
The Eaton FAZ MCB from The Eaton Moeller series xEffect is a state of the art miniature circuit breaker designed for industrial and advanced commercial applications. This breaker offers a robust solution for the reliable protection of electrical circuits against overloads and short circuits. Engineered to support a maximum current of 40 A and featuring a three pole plus neutral design, it combines performance and safety with remarkable ease of installation. Its compact dimensions ensure efficient use of space within panel designs, while the device adheres to stringent compliance and certification standards. Ideal for diverse installations, including those needing a rated insulation voltage of up to 440 V and a high operational switching capacity, the FAZ MCB stands out with its exceptional thermal stability and resistance to environmental challenges. It's built to last, promising a lifespan of 10,000 operations to ensure peace of mind for electrical professionals.
Incorporates a K tripping characteristic for enhanced protection
Meets RoHS compliance to support eco friendly practices
Designed for quick installation on a top hat rail for convenience
Employs twin purpose terminals for versatile connectivity options
Capable of managing ambient temperatures between 25 °C to 75 °C
Features a degree of protection rating of IP20 and IP40 when fitted
Compatible with a wide range of conductor cross sections for flexibility
Provides excellent short circuit breaking capacity for added safety
Meets RoHS compliance to support eco friendly practices
Designed for quick installation on a top hat rail for convenience
Employs twin purpose terminals for versatile connectivity options
Capable of managing ambient temperatures between 25 °C to 75 °C
Features a degree of protection rating of IP20 and IP40 when fitted
Compatible with a wide range of conductor cross sections for flexibility
Provides excellent short circuit breaking capacity for added safety
