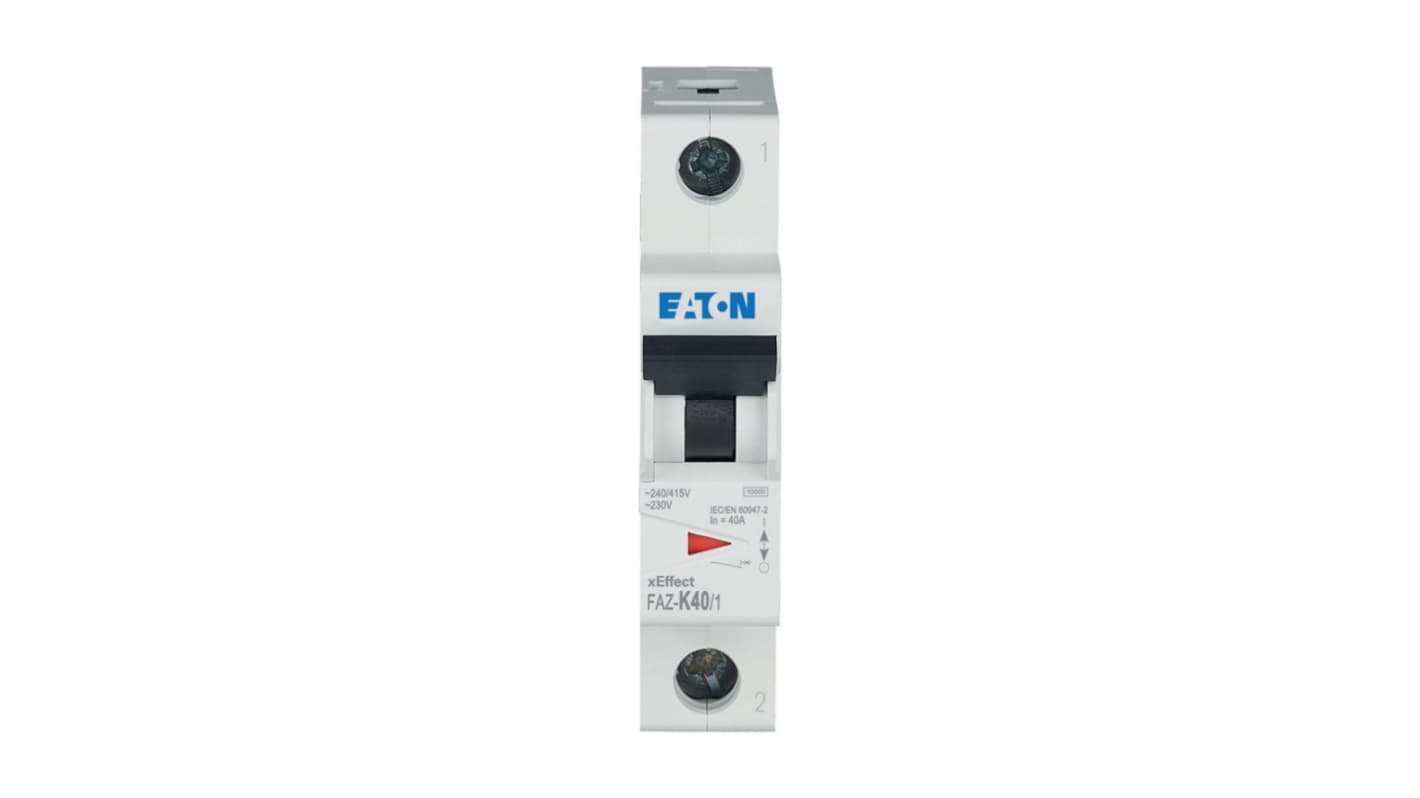

Eaton xEffect FAZ MCB, 1P, 40A Curve K, 230V AC, 48V DC, 10 kA Breaking Capacity
- RS Stock No.:
- 259-572
- Mfr. Part No.:
- 278603 FAZ-K40/1
- Brand:
- Eaton
Subtotal (1 unit)*
£46.68
(exc. VAT)
£56.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £46.68 |
*price indicative
- RS Stock No.:
- 259-572
- Mfr. Part No.:
- 278603 FAZ-K40/1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 1 | |
Current Rating | 40A | |
Tripping Characteristics | Type K | |
Rated AC Voltage | 230V | |
Rated DC Voltage | 48V | |
Breaking Capacity at Maximum Voltage Rating | 10 kA | |
Range | xEffect | |
Series | FAZ | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 1 | ||
Current Rating 40A | ||
Tripping Characteristics Type K | ||
Rated AC Voltage 230V | ||
Rated DC Voltage 48V | ||
Breaking Capacity at Maximum Voltage Rating 10 kA | ||
Range xEffect | ||
Series FAZ | ||
- COO (Country of Origin):
- RO
The Eaton Moeller series xEffect FAZ MCB is expertly engineered to provide exceptional protection in electrical applications. This miniature circuit breaker stands out with a robust 40 A capacity and a characteristic curve specially designed for effective overload and short circuit protection. Optimised for branch circuits and switchgear for industrial and advanced commercial applications, the FAZ MCB is built to ensure reliability in demanding environments. With its compact design, measuring just 80 mm in length and 75.5 mm in height, it fits seamlessly into standard top hat rail systems, making installation straightforward. Compliance with various international standards, such as UL and IEC, reflects its superior safety and quality, ensuring that it meets the highest regulations for electrical components. Importantly, this device combines durability with high performance, making it an essential component for any modern electrical system.
Compact design allows for easy installation in confined spaces
Multi purpose terminals ensure versatile connectivity options
Designed for a wide range of industrial and commercial applications
Protection classification IP40 enhances safety against dust and water ingress
Integrated with a 10 kA short circuit breaking capacity for superior protection
Maintains operational reliability across a broad temperature range
Meets stringent international safety and compliance standards
Efficient operational switching capacity ensures smooth performance
Multi purpose terminals ensure versatile connectivity options
Designed for a wide range of industrial and commercial applications
Protection classification IP40 enhances safety against dust and water ingress
Integrated with a 10 kA short circuit breaking capacity for superior protection
Maintains operational reliability across a broad temperature range
Meets stringent international safety and compliance standards
Efficient operational switching capacity ensures smooth performance
