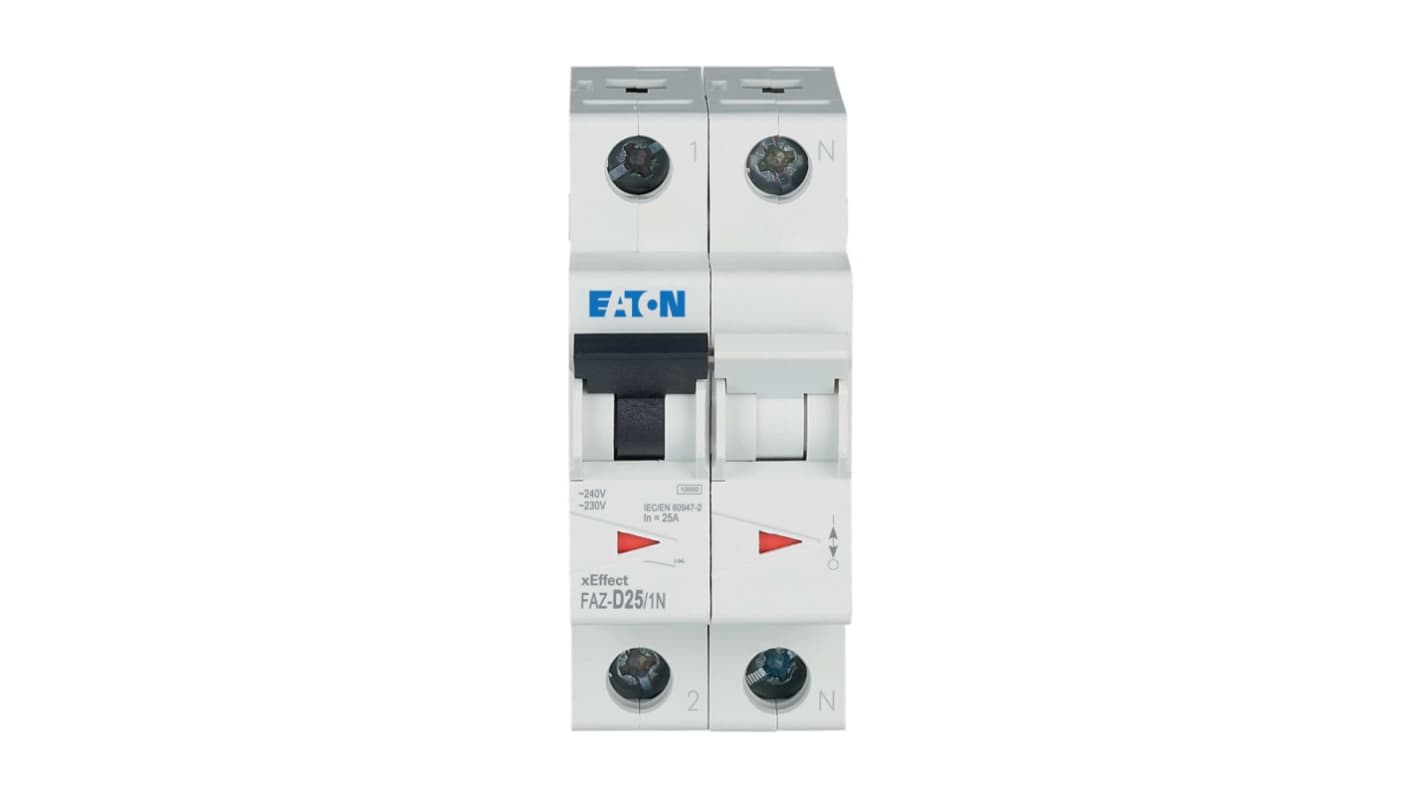

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 25A, Type D, 230V ac AC, 15 kA Breaking Capacity
- RS Stock No.:
- 259-733
- Mfr. Part No.:
- 278699 FAZ-D25/1N
- Brand:
- Eaton
Subtotal (1 unit)*
£66.86
(exc. VAT)
£80.23
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.86 |
*price indicative
- RS Stock No.:
- 259-733
- Mfr. Part No.:
- 278699 FAZ-D25/1N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 25A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 230V ac | |
| Mount Type | Top Hat Rail | |
| Breaking Capacity | 15kA | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Depth | 80mm | |
| Width | 36mm | |
| Standards/Approvals | CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | |
| Height | 75.5mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 25A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 230V ac | ||
Mount Type Top Hat Rail | ||
Breaking Capacity 15kA | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Depth 80mm | ||
Width 36mm | ||
Standards/Approvals CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | ||
Height 75.5mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is designed to provide reliable circuit protection in various applications. This miniature circuit breaker is a sophisticated solution tailored for demanding environments, ensuring operational efficiency and safety. With its robust build and innovative design, it combines cutting edge technology with high performance. The device efficiently handles both regular and fault conditions, allowing for seamless integration into industrial and advanced commercial settings.
Outstanding tripping characteristics ensure quick response to overloads
Offers a high rated short circuit breaking capacity for enhanced safety
Equipped with versatile connectable conductor cross sections for flexible installations
Provides a clear degree of protection with an IP20 rating
Efficient heat dissipation capabilities to maintain optimal performance
Achieves electromagnetic compatibility under defined conditions
Reputable for its corrosion resistance and mechanical robustness
