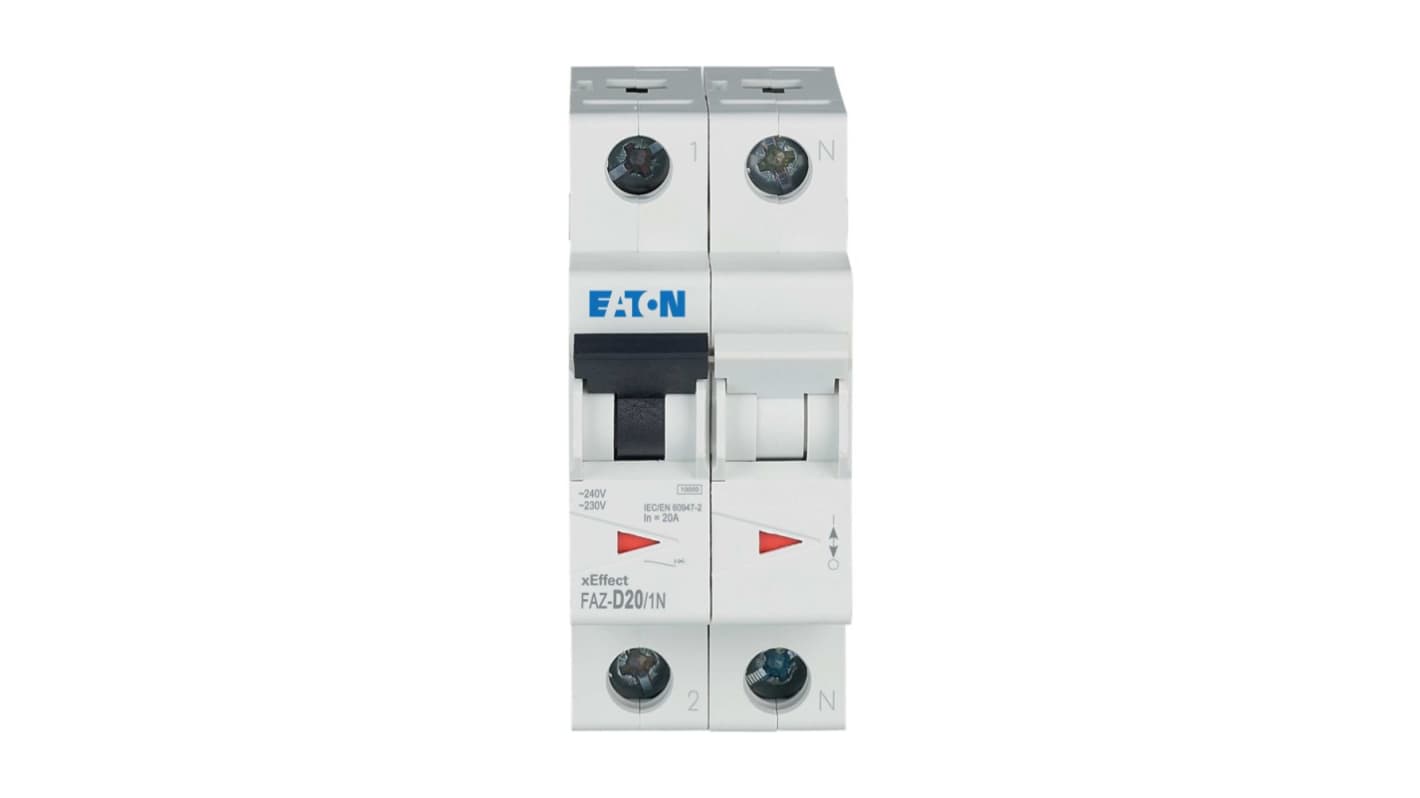

Eaton xEffect FAZ Miniature Circuit Breaker, 1-Pole, 20 A, Type D, 230 V ac AC, 15 kA Breaking Capacity
- RS Stock No.:
- 258-340
- Mfr. Part No.:
- 278698 FAZ-D20/1N
- Brand:
- Eaton
Subtotal (1 unit)*
£66.86
(exc. VAT)
£80.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.86 |
*price indicative
- RS Stock No.:
- 258-340
- Mfr. Part No.:
- 278698 FAZ-D20/1N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Miniature Circuit Breaker | |
| Number of Poles | 1 | |
| Current Rating | 20 A | |
| Tripping Characteristics | Type D | |
| Rated AC Voltage | 230 V ac | |
| Breaking Capacity | 15kA | |
| Mount Type | Top Hat Rail | |
| Range | xEffect | |
| Series | FAZ | |
| IP Rating | IP20 | |
| Standards/Approvals | CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | |
| Height | 75.5mm | |
| Depth | 80mm | |
| Width | 36 mm | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Miniature Circuit Breaker | ||
Number of Poles 1 | ||
Current Rating 20 A | ||
Tripping Characteristics Type D | ||
Rated AC Voltage 230 V ac | ||
Breaking Capacity 15kA | ||
Mount Type Top Hat Rail | ||
Range xEffect | ||
Series FAZ | ||
IP Rating IP20 | ||
Standards/Approvals CSA, EAN, EN45545-2, EN 63000:2018, IEC 61373, IEC/EN 60898, IEC/EN 60947-2, RoHS, UL | ||
Height 75.5mm | ||
Depth 80mm | ||
Width 36 mm | ||
- COO (Country of Origin):
- RO
The Eaton Miniature Circuit Breaker from the Moeller series is engineered for reliability and performance in various industrial applications. The product, capable of handling a rated current of 20 A, ensures safety and durability while maintaining excellent switching capacity as per IEC/EN 60947 2 standards. With precise specifications that include a compact size of 80 mm in length and a width of 36 mm, this MCB integrates seamlessly into your switchgear setup.
Optimised for both industrial and advanced commercial applications
Offers a cooling system that takes ambient temperature changes into consideration
Supports multiple conductor configurations for flexible wiring options
Efficient energy management with low power loss characteristics
Simplifies maintenance with accessible installation instructions
Built to withstand rigorous electromagnetic compatibility requirements
Equipped with a comprehensive response to short circuit conditions
